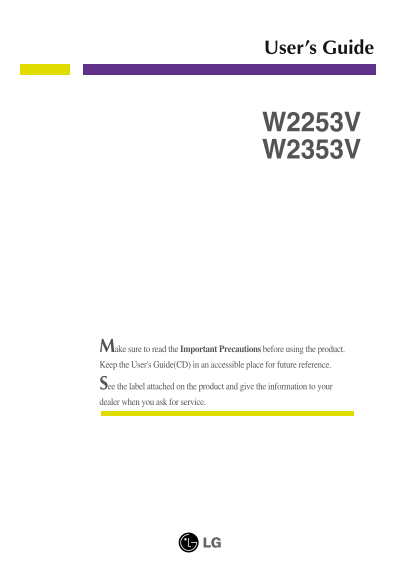

User’s Guide
Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. See the label attached on the product and give the information to your dealer when you ask for service.
Page Summary Contents For LG Monitor - 20 to 29 inches W2253V-PF.ACN User Manual English
Page 1
User’s Guide Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. See the label attached on the product and give...
Page 2
Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow th...
Page 3
Important Precautions Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool. Displays are provided with ventilation...
Page 4
Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting the stand 1. Place the monitor wit...
Page 5
Connecting the Display Disassembling the stand 1. Put a cushion or soft cloth on a flat 2. Place the monitor face down on surface. the cushion or soft cloth. 3. Change your lock on the product as it f...
Page 6
Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Positioning your display 1. Adjust the positi...
Page 7
Connecting the Display Using the Computer 1. Make sure to turn off the computer and product. Connect the cable as below sketch map form to .1 Connect DVI-D Cable This is a simplified representation of...
Page 8
Connecting the Display Using the cable holder (This feature is not available in all models.) Cable holder
Page 9
Control Panel Functions Front Panel Controls Control Function Button Use this button to enter CINEMA MODE,AUTO BRIGHT,TIME CONTROL,LIVE SENSOR,SMART items,for more information,refer to page A16. DSUB ...
Page 10
Control Panel Functions Control Function Use these buttons to select or adjust functions in the On Buttons Screen Display. Button For more information, refer to page A19 -A20. Use this button to make ...
Page 11
On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control...
Page 12
On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. Main menu Sub-menu A D H Reference CINEMA MODE To focus ...
Page 13
On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descripti...
Page 14
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description PICTURE PICTURE DSUB/DVI input BRIGHTNESS To adjust the brightness of the screen. CONTRAST To adjust the contrast of the ...
Page 15
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description TRACKING TRACKING HORIZONTAL To move image left and right. VERTICAL To move image up and down. CLOCK To minimize any vert...
Page 16
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description SETUP SETUP LANGUAGE To choose the language in which the control names are displayed. OSD To adjust position of the OSD w...
Page 17
On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the button on the right bottom of the monitor. Main menu Sub menu Description CINEMA MODE It focuses better on...
Page 18
On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the button on the left bottom of the monitor. DSUB/DVI input HDMI input VOLUME Main menu Sub menu Description ...
Page 19
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description To select the color of the screen. PHOTO EFFECT NORMAL : The Photo Effect function is disabled. GAUSSIAN BLUR : This opti...
Page 20
On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the button on the left bottom of the monitor. Menu Name Icons Sub-menu Name Main menu Sub menu Description MOV...
Page 21
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description DSUB/DVI input DEMO This is used for advertising in the store. The screen will be divided to show the standard mode on th...
Page 22
Troubleshooting Check the following before calling for service. No image appears Is the power cord of the • Check and see if the power cord is connected display connected? properly to the power outlet...
Page 23
Troubleshooting Display image is incorrect Display Position is • Press the AUTO/SET button to automatically incorrect. adjust your display image to the ideal setting. If the results are unsatisfactory...
Page 24
Troubleshooting Display image is incorrect The screen color is • Check if the signal cable is properly connected mono or abnormal. and use a screwdriver to fasten if necessary. • Make sure the video c...
Page 25
Specifications W2253V Display 21.5 inches (54.6 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 54.6 cm 0.248*0.248 mm pixel pitch Sync Input Horizontal Freq. 30 - 83 k ...
Page 26
Specifications W2353V Display 23.0 inches (58.4 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 58.4 cm 0.266*0.266 mm pixel pitch Sync Input Horizontal Freq. 30 - 83 k ...
Page 27
Specifications Preset Modes (Resolution) DSUB/DVI Timing Display Modes (Resolution) Horizontal Freq. (k Hz) Vertical Freq. (Hz) * Recommend Mode HDMI Timing Display Modes (Resolution) Horizontal Freq....
Page 28
