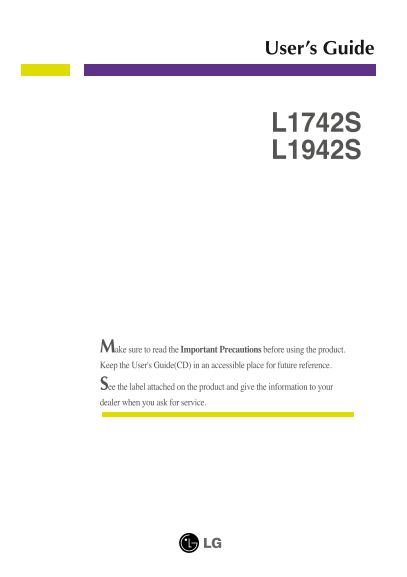

User’s Guide
Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. See the label attached on the product and give the information to your dealer when you ask for service.
Page Summary Contents For LG Monitor ~19 inches L1742S-BF.ACN Product Specifications English
Page 1
User’s Guide Make sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. See the label attached on the product and give...
Page 2
Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow th...
Page 3
Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display ne...
Page 4
Connecting the Display Before setting up the monitor, ensure that the power to the monitor, the computer system, and other attached devices is turned off. Connecting the stand 1. Place the monitor wit...
Page 5
Connecting the Display Disassembling the stand 1. Put a cushion or soft cloth on aflat 2. Place the monitor face Down on surface. the cushion or soft cloth. 3. Change your lock on the product as it fo...
Page 6
Connecting the Display 5. Pushing the PUSH button, Take the stand base from stand body. Warning: You can hurt your finger. Good Position Bad Position Before setting up the monitor, ensure that the pow...
Page 7
Connecting the Display Using the Computer 1. Make sure to turn off the computer and product. Connect the cable as below sketch map form to .1 Connect Dsub Cable (PC) Connect Dsub Cable (Mac) NOTE This...
Page 8
Control Panel Functions Front Panel Controls Control Function Use this button to enter or exit from the On Screen Display. MENU Button OSD LOCKED/UNLOCKED This function allows you to lock the current ...
Page 9
Control Panel Functions Control Function Use these buttons to select or adjust functions in the On Buttons Screen Display. For more information, refer to page A15. AUTO/SET Use this button to select a...
Page 10
On Screen Display (OSD) Control Adjustment Screen Adjustment Making adjustments to the image size, position and operating parameters of the display is quick and easy with the On Screen Display Control...
Page 11
On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. NOTE The order of icons may differ depending on the mode...
Page 12
On Screen Display(OSD) Selection and Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descripti...
Page 13
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description PICTURE PICTURE BRIGHTNESS To adjust the brightness of the screen. CONTRAST To adjust the contrast of the screen. GAMMA S...
Page 14
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description TRACKING TRACKING HORIZONTAL To move image left and right. VERTICAL To move image up and down. CLOCK To minimize any vert...
Page 15
On Screen Display(OSD) Selection and Adjustment Main menu Sub menu Description SETUP SETUP LANGUAGE To choose the language in which the control names are displayed. OSD To adjust position of the OSD w...
Page 16
On Screen Display(OSD) Selection and Adjustment The OSD screen will appear when you touch the button on the left bottom of the monitor. Menu Name Icons Sub-menu Name Main menu Sub menu Description MOV...
Page 17
Troubleshooting Check the following before calling for service. No image appears Is the power cord of the • Check and see if the power cord is connected display connected? properly to the power outlet...
Page 18
Troubleshooting Display image is incorrect Display Position is • Press the AUTO/SET button to automatically incorrect. adjust your display image to the ideal setting. If the results are unsatisfactory...
Page 19
Troubleshooting Display image is incorrect The screen color is • Check if the signal cable is properly connected mono or abnormal. and use a screwdriver to fasten if necessary. • Make sure the video c...
Page 20
Specifications 17 inch Display 17 inches (43.2 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 43.2 cm 0.264 mm pixel pitch Sync Input Horizontal Freq. 30 - 83 k Hz (Aut...
Page 21
Specifications 19 inch Display 19 inches (48.2 cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating Visible diagonal size: 48.2 cm 0.294 mm pixel pitch Sync Input Horizontal Freq. 30 - 83 k Hz (Aut...
Page 22
Specifications Preset Modes (Resolution) Display Modes (Resolution) Horizontal Freq. (k Hz) Vertical Freq. (Hz) * Recommend Mode Indicator LED Color MODE On Mode blue Sleep Mode flicker Off Mode Off
Page 23
Installing the Wall mount plate This monitor satisfies the specifications of the Wall mount plate or the interchange device. 1. Place the monitor with its front facing downward on a soft cloth. 2. Sep...
Page 24
