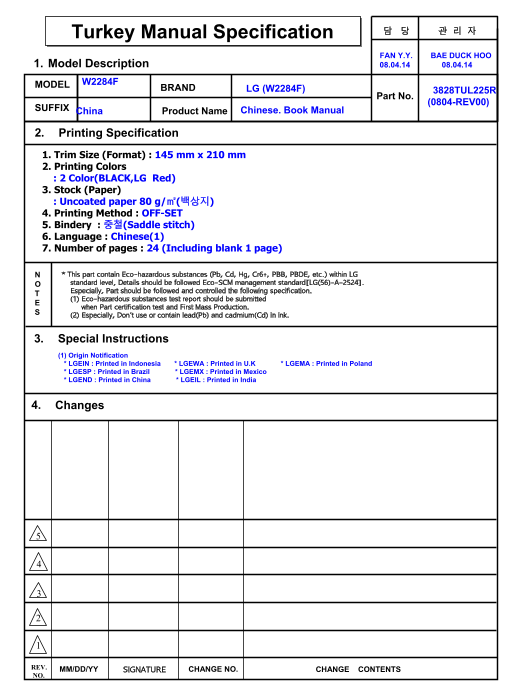

Turkey Manual Specification l i

FAN Y.Y. BAE DUCK HOO

1. Model Description 08.04.14 08.04.14

MODEL

BRAND LG (W2284F)

3828TUL225R

Part No.

(0804-REV00)

SUFFIX Chinese. Book Manual China

Product Name

2. Printing Specification 1. Trim Size (Format) : 145 mm x 210 mm 2. Printing Colors : 2 Color(BLACK,LG Red) 3. Stock (Paper) : Uncoated paper 80 g/㎡(백상지) 4. Printing Method : OFF-SET 5. Bindery : 중철(Saddle stitch) 6. Language : Chinese(1) 7. Number of pages : 24 (Including blank 1 page)

* This part contain Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level, Details should be followed Eco-SCM management standard[LG(56)-A-2524]. Especially, Part should be followed and controlled the following specification. (1) Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production. (2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.

Special Instructions3. (1) Origin Notification * LGEIN : Printed in Indonesia * LGEWA : Printed in U.K * LGEMA : Printed in Poland * LGESP : Printed in Brazil * LGEMX : Printed in Mexico * LGEND : Printed in China * LGEIL : Printed in India

Changes 4.

MM/DD/YY SIGNATURE CHANGE NO. CHANGE CONTENTS NO.
