LG 20~29" 24MP55VQ- W.ACN Product Manual English
Summary
This comprehensive guide provides users with detailed instructions for setting up, connecting, and customizing their LG IPS LED professional monitor. It covers everything from safely assembling the stand and making diverse connections (HDMI, DVI-D) to fine-tuning display settings, color profiles, and operational modes. Ideal for professionals, students, and home users requiring a reliable, high-definition visual workstation display.
Page 1 Text Content
EN LIS

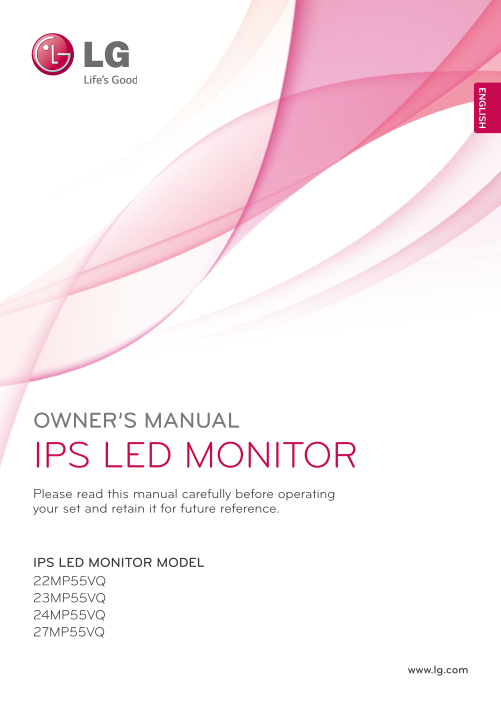

OWNER’S MANUAL IPS LED MONITOR Please read this manual carefully before operating your set and retain it for future reference.
IPS LED MONITOR MODEL 22MP55VQ 23MP55VQ 24MP55VQ 27MP55VQ
www.lg.com
Page Summary Contents For LG 20~29" 24MP55VQ- W.ACN Product Manual English
Page 1
EN LIS OWNER’S MANUAL IPS LED MONITOR Please read this manual carefully before operating your set and retain it for future reference. IPS LED MONITOR MODEL 22MP55VQ 23MP55VQ 24MP55VQ 27MP55VQ www.lg.c...
Page 2
TABLE OF CONTENTS CONTENTS 3 LICENSE 25 - DUAL DISPLAY 25 - DUAL WEB 4 ASSEMBLING AND PREPAR- 26 TROUBLESHOOTING ING 4 Unpacking 28 SPECIFICATIONS 5 Parts and buttons 6 Moving and Lifting the Monitor ...
Page 3
EN EN LIS LICENSE LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are t...
Page 4
ASSEMBLING AND PREPARING ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your prod...
Page 5
EN EN LIS ASSEMBLING AND PREPARING Parts and buttons Power Indicator READER Lighting On: Turned on Lighting Off: Turned off (Power Button) READER Button (See p.15) Connection panel (See p.12)
Page 6
ASSEMBLING AND PREPARING Moving and Lifting the Monitor When holding the monitor, the screen should face away from you to prevent it being When moving or lifting the monitor, follow these scratched. i...
Page 7
EN EN LIS ASSEMBLING AND PREPARING Setting up the Monitor set 27MP55VQ Attach the Stand Body to the monitor set. Attaching the Stand Base Use two screws to fix the Stand Body and monitor set. 1 Place ...
Page 8
ASSEMBLING AND PREPARING Detaching the Stand Base 27MP55VQ Turn the screw to the left. 1 Place the Monitor set with the screen side down on a flat and cushioned surface. Pull out the Stand Base from t...
Page 9
EN EN LIS ASSEMBLING AND PREPARING Mounting on a table 3 Press (Power) button on the bottom switch panel to turn the power on. 1 Lift and tilt the Monitor set into its upright position on a table. CAU...
Page 10
ASSEMBLING AND PREPARING WARNING When you adjust the angle, do not hold the 27MP55VQ bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers. NOTE Tilt from ...
Page 11
EN EN LIS ASSEMBLING AND PREPARING Model 22MP55VQ 24MP55VQ Mounting on a wall 23MP55VQ 27MP55VQ For proper ventilation, allow a clearance of 10 cm VESA (A x B) 75 x 75 100 x 100 on each side and from ...
Page 12
USING THE MONITOR SET USING THE MONITOR SET Connecting to a PC DVI-D connection Transmits a digital video signal from your PC to Your Monitor set supports Plug & Play*. the Monitor set. Connect th...
Page 13
EN EN LIS USING THE MONITOR SET Connecting to External Devices CAUTION Connect the signal input cable and Peripheral device connection tighten it by turning the screws clockwise. Connect peripheral de...
Page 14
USING THE MONITOR SET Self Image Setting Function Press the power button on the bottom panel to turn the power on. When monitor power is turned on, the "Self Image Setting" Function is execu...
Page 15
EN EN LIS CUSTOMIZING SETTINGS CUSTOMIZING SETTINGS 1 Press the desired button on the bottom of the Monitor set. 2 Change the value of the menu item by pressing the buttons on the bottom of the Monito...
Page 16
CUSTOMIZING SETTINGS Customizing Settings Menu Settings 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. 2 Set the options by pressing the ◄ or ► or ▼ buttons. 3 Select th...
Page 17
EN EN LIS CUSTOMIZING SETTINGS Picture 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. 2 Select the "Next Menu" button to enter the more option settings. 3 Ente...
Page 18
CUSTOMIZING SETTINGS Color 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. 2 Select the "Next Menu" button to enter the more option settings. 3 Select Color by ...
Page 19
EN EN LIS CUSTOMIZING SETTINGS Display 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. 2 Select the "Next Menu" button to enter the more option settings. 3 Sele...
Page 20
CUSTOMIZING SETTINGS Others 1 Press MENU button on the bottom of the Monitor set to display the Menu OSD. 2 Select the "Next Menu" button to enter the more option settings. 3 Select Others b...
Page 21
EN EN LIS CUSTOMIZING SETTINGS READER Setting 1 Press READER button on the bottom of the Monitor set to display the Reader Mode OSD. 2 Set the options by pressssing the ◄ buttons. Each option is expla...
Page 22
CUSTOMIZING SETTINGS FUNC. Setting SUPER ENERGY SAVING 1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD. 2 Enter to SUPER ENERGY SAVING by pressing the ▼ button. 3 Set th...
Page 23
EN EN LIS CUSTOMIZING SETTINGS Picture Mode 1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD. 2 Select Picture Mode by pressing the ► button. 3 Enter to Picture Mode by p...
Page 24
CUSTOMIZING SETTINGS SUPER RESOLUTION + 1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD. 2 Select SUPER RESOLUTION+ by pressing the ► button. 3 Enter to SUPER RESOLUTION...
Page 25
EN EN LIS CUSTOMIZING SETTINGS * Before using below functions, please install DUAL SMART SOLUTION programme. DUAL DISPLAY 1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD...
Page 26
TROUBLESHOOTING TROUBLESHOOTING Check the following before calling for service. No image appears Is the power cord of the display Check and see if the power cord is connected properly to the power con...
Page 27
EN EN LIS TROUBLESHOOTING CAUTION Check Control Panel ► Display ► Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution. If the ...
Page 28
SPECIFICATIONS SPECIFICATIONS 22MP55VQ Display Screen Type 54.6 cm (21.5 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 54.6 cm Pixel Pitch 0.08265*RGB(H) mm x 0.2479...
Page 29
EN EN LIS SPECIFICATIONS SPECIFICATIONS 23MP55VQ Display Screen Type 58.4 cm (23 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 58.4 cm Pixel Pitch 0.265 mm x 0.265 m...
Page 30
SPECIFICATIONS SPECIFICATIONS 24MP55VQ Display Screen Type 60.4 cm (23.8 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 60.4 cm Pixel Pitch 0.2745 mm x 0.2745 mm (Pix...
Page 31
EN EN LIS SPECIFICATIONS SPECIFICATIONS 27MP55VQ Display Screen Type 68.6 cm (27 inch) Flat Panel Active matrix-TFT LCDAnti- Glare coating Visible diagonal size: 68.6 cm Pixel Pitch 0.311 mm x 0.311 m...
Page 32
SPECIFICATIONS Preset Modes (Resolution) Horizontal Vertical Display Modes (Resolution) Polarity(H/V) Frequency(k Hz) Frequency(Hz) 720 x 400 31.468 640 x 480 31.469 640 x 480 37.500 800 x 600 37.879 ...
Page 33
EN EN LIS PROPER POSTURE PROPER POSTURE Proper posture for using the Monitor set. Adjust the Adjust the location of the Monitor set and Monitor set to avoid it your posture to reflecting light. allow ...
Page 34
Declaration of Conformity Trade Name: LG Model : 22MP55VA 23MP55VA 24MP55VA 27MP55VA Responsible Party: LG Electronics Inc. Address : 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U.S.A TEL: 201-266-2534...
