Lenovo ThinkCentre Nano IoT IOBOX Hardware and Software User Guide

Summary

The IoT IOBOX DT1 is a robust, multi-functional industrial I/O controller designed for connecting physical controls to modern Internet of Things (IoT) networks. This technical manual is essential reading for developers and system engineers needing precise device integration in automation projects. It provides comprehensive guidance on the unit's advanced capabilities, including PoE Ethernet connectivity, multiprotocol serial ports (RS-485), and digital input/output arrays. The guide details specifications, operational best practices, and full utilization of the companion software development kit (SDK) for real-time monitoring and control of all system inputs.

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 13 ›

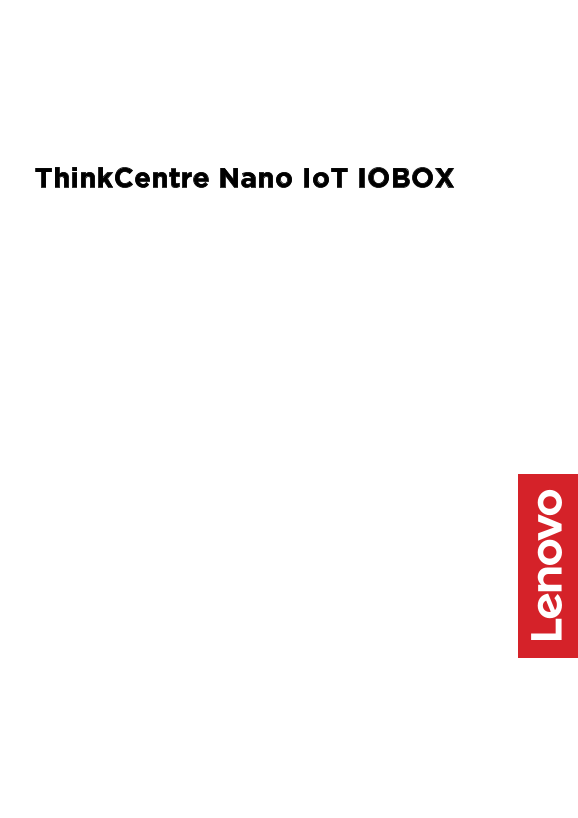

‹ Lenovo ThinkCentre Nano IoT IOBOX Hardware and Software User Guide - Page 1 ›

Page 1 Text Content

Think Centre Nano Io T IOBOX

Page Summary Contents For Lenovo ThinkCentre Nano IoT IOBOX Hardware and Software User Guide

Page 1 Think Centre Nano Io T IOBOX
Page 2 Initial Setup Overview Po E Po E 1. Serial connectors (2) 4. DC-in power connector 2. Ethernet connectors (POE)(2) 5. USB-C connector 3. DC-in power LED indicator 6. DI/DO connectors (2)
Page 3 Specification Dimensions DC-in power connector Length 178 mm (7 inches) The 3-pin Phoenix dc-in power connector Width 88 mm (3.46 inches) accepts dc power input from 9 V to 36 V . Height 25.6 mm (1 in...
Page 4 Digital Input Digital Output  Channels: 4  Channels: 4  Input type: NPN, PNP  Output type: NPN  Dry contact:  Voltage: 5 V from external power supply - Logic 0: Open  Total output current: 200 ...
Page 5 To connect an external device to a DI/DO adapter: 1. Use a screwdriver or anything similar with a thin tip to press down the block and hold. 2. Insert the bare stranded wires of the cable (24AWG) into...
Page 6 Io T IOBOX DT1 IO CONTROLLER (Windows) Io T IOBOX DT1 IO CONTROLLER Software Introduction Io T IOBOX DT1 IO CONTROLLER is a piece of control software specific to the industrial control product IO BOX ...
Page 7 configuration item is not selected. After the software starts monitoring, various values of input signals on ports are displayed on the left pane. Invert: to enable level inversion for input signals o...
Page 8 COM Power: to enable power supply for the COM interface. Select "Enable" and click "Apply" to enable power supply for the COM interface. Select "Disable" and click "...
Page 9  Initial State is set to 1 for the four ports at initial software startup. After Initial State is reset, the new value is stored in the register of IOBOX. After IOBOX is disconnected from the host, r...
Page 10 SDK support list Lenovo provides a software development kit (SDK) for your computer. You can use the SDK to develop functions based on your needs. For example, you can collect signals and transfer dat...
Page 11 SDK Q & A 1. How to import device Ctrl.dll and Io Ctrl Interface.dll? a. Copy device Ctrl.dll and Io Ctrl Interface.dll to Debug and Release folder b. Right click on the project->Add->Refere...
Page 12 a. Check IOBOX is connected to device correctly b. Check the Driver has been installed The device manager will show c. Is the VID/PID information correct? Call API “Is Connect()” to check IOBOX connec...
Page 13 Note: For support on software SDK, please send an email to our IOBOX software support team at [email protected]. In your email’s subject line, please include the following: Country – IOBOX SDK ISSUE...

Manual Details

Brand Lenovo
Pages 13
File Size 946.39 KB
Published May 25, 2026
103 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

Is there risk if I use the IOBOX after storing it in cold temperatures?

Yes, if stored below 0°C (32°F), allow the unit to warm up slowly before use to prevent irreparable damage.

What must be considered when using PoE or advanced Ethernet features?

The power input must exceed 135 W for high-spec ports, and you cannot use PoE if powering through USB-C.

How do I correctly wire an external device to the DI/DO ports?

Use stripped bare stranded 24AWG wires. The recommended length for these wires is 4.8 - 5.5 mm.

My PC software cannot detect the IOBOX connected properly; what should I check?

Check physical connections, ensure drivers are installed, and verify the VID/PID information using `devCtrl.IsConnect()` API call.
