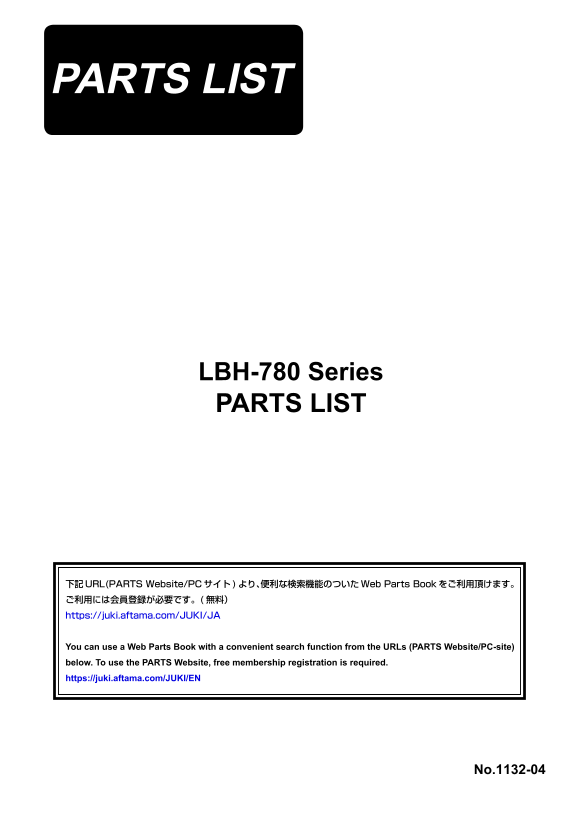

Juki Lockstitch Sewing Machine LBH-780 Series Parts List - Volume 2 (English)
Summary
Access comprehensive component details for LBH-780 Series industrial sewing machines and related models. This technical manual serves as an in-depth parts catalog, guiding maintenance professionals and technicians through accurate part identification, assembly structures, and required quantities. Features include detailed diagrams and instructions on interpreting technical codes for complex repairs. For a more convenient experience, users can also access the dedicated, searchable Web Parts Book online (free membership required), ensuring quick and precise sourcing of every necessary component.
Manual Details
| Brand | Juki |
|---|---|
| Pages | 21 |
| File Size | 961.30 KB |
| Published | May 24, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How can I find the correct part number?
Use the Web Parts Book available at juki.aftama.com/JUKI/JA, which requires free membership registration for access.
What do markings like '*' and '#01' mean on the parts list?
'*' indicates a change from a previous parts book, while '#01' refers to details in the 'Note' explanation at the bottom of the page.
How are quantities (Qty) indicated in the "Qty" column?
Numeral counts represent pieces; values like 0.1 or 2.5 indicate length/measurements in meters.
