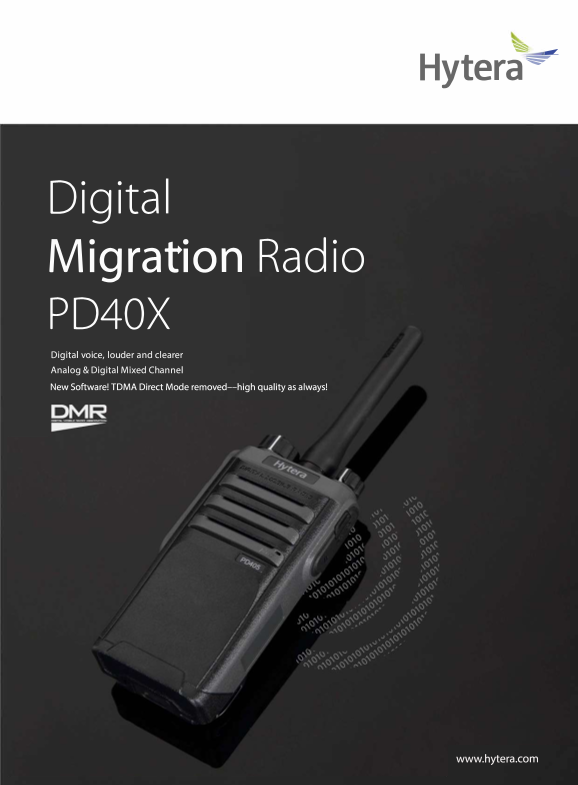

Hytera EN_PD40X Digital Migration Radio Brochure
Summary
This robust two-way radio system provides essential group communication for professionals operating in demanding environments like construction sites and industrial facilities. Featuring dual Analog/Digital mixed channel capability and high reliability, this device ensures clear voice transmission even when conditions are challenging. The accompanying manual details comprehensive technical specs, including UHF/VHF support, IP55 dustproof/waterproof rating, and MIL-STD-810G shock resistance, making it the ideal choice for security, corporate, or utility teams requiring continuous, secure connectivity.
Page 1 Text Content
Hytera�
Specifications
General Transmitter
Frequency Range UHF: 400-470MHz VHF High power: SW
VHF: 136-174MHz
VHF Low power: 1W
RF Power Output
Channel Capacity 48 UHF High power: 4W
Zone Capacity 3 UHF Low power: 1W
Channel Spacing 25/12.SKHz
11 K0F3E@ 12.SKHz
Operating Voltage 7.4V FM Modulation
16K0F3E@ 25KHz Digital
Battery 1 S00m Ah (Li-Ion)
2000m Ah (Li-Ion)
12.SKHz Data Only: 7K60FXD
4FSK Digital Modulation
12.SKHz Data & Voice: 7K60FXW
Analog/Digital:
Battery Life (5/5/90 ) 10/13 hours (1 S00m Ah) Conducted/Radiated Emission -36d Bm <1GHz, -30d Bm >l GHz
13/17 hours (2000m Ah)
±2.SKHz@ 12.SKHz Migration Radio
Weight 270g Modulation Limiting
±5.0KHz@ 25KHz
Dimensions 112x54x28mm
40d B@ 12.SKHz
Frequency Stability ±0.Sppm FM Hum & Noise
45d B@25KHz
Antenna Impedance son
PD40X
Receiver Adjacent Channel Power 60d B@ 12.SKHz, 70d B @25KHz Audio Response +1 - -3d B
Sensitivity (Digital) 0.22µV / BER 5%
Audio Distortion �3%
0.22µV (Typical) (12d B SIN AD) Digital voice, louder and clearer
Digital Vocoder Type AMBE+2™
Sensitivity (Analog) 0.4µV (20d B SIN AD)
Analog & Digital Mixed Channel
0.22µV (12d B SIN AD) Digital Protocol ETSI-TS102 361-1,-2,-3
TIA-603 60d B@ 12.SKHz/70d B@ 25KHz Environmental New Software! TDMA Direct Mode removed--high quality as always!
Adjacent Selectivity
60d B@ 12.SKHz/70d B@ 25KHz ETSI Operating Temperature -30°C~ +60°C
Spurious TIA-603 70d B@ 12.5/25KHz -40°c - +ss·c
Storage Temperature
Response Rejection ETSI 70d B@ 12.5/25KHz
IEC 61000-4-2 (Level 4)
TIA-603 70d B@ 12.S/25KHz ESD ± Bk V (Contact)
Inter-modulation
ETSI 65d B@ 12.5/25KHz ±l Sk V(Air)
Dustproof & Waterproof IPSS Standard
40d B@ 12.SKHz
Hum &Noise Humidity Per MIL-STD-810 G Standard
45d B@25KHz
Shock & Vibration Per MIL-STD-810 G Standard
Rated Audio Power Output 0.SW
PD40X, X=O, 2, 5,6 or 8, model number varies geographically. For details, please contact our
Rated Audio Distortion ,;;3% regional sales representatives.
Audio Response +1 ~-3d B All specifications are subject to change without notice due to continuous development.
Conducted Spurious Emission <-57d Bm
� CE@
� Hytera- Hytera Communications Corporation Limited Respond & Achieve Address: Hytera Tower, Hi-Tech Industrial Park North,Beihuan Rd., Hytera retains right to change the product design and specification. Should any printing mistake occur,
Hytera doesn't bear relevant responsibility. Little difference between real product and product indicated
Nanshan District,Shenzhen,China
by printing materials will occur by printing reason.
Tel: +86-755-2697 2999 Fax: +86-755-8613 7139 Post: 518057
www.hytera.com
Http: //www.hytera.com Stock Code: 002583.SZ Hyter� �J!! <!!!>�� Sl�a.! �l!!lf;�I:! HJl'Tare reglsteredtrademarksof Hytera
Page Summary Contents For Hytera EN_PD40X Digital Migration Radio Brochure
Manual Details
| Brand | Hytera |
|---|---|
| Pages | 4 |
| File Size | 446.87 KB |
| Published | May 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating temperature range for this device?
The radio can operate in temperatures from -30°C to +60°C.
Is this radio reliable in outdoor or dusty environments?
Yes, it meets standards like IP54/IP55 and MIL-STD-810 G standards for robustness.
Does the radio support mixed signaling types?
The device features Dual Mode (Analog & Digital Mixed Channel) to ensure compatibility and smooth migration.
How does the VOX feature work?
Voice-operated Transmit (VOX) allows you to trigger voice transmission directly by your voice, improving security performance.
