HIKVISION DS- K4H258SS Lock Electric Control User Manual
Summary
This comprehensive manual guides users through the installation of a heavy-duty magnetic locking system designed for enhanced security across diverse door types, including wood, metal, glass, and fireproof doors. The product includes precise templates and all necessary hardware to ensure optimal mounting and maximum holding force (up to 280kg). This technical guide walks professionals and advanced DIY users through detailed steps, wiring diagrams, and required adjustments needed for a perfect fit, ensuring reliable and robust door access control installation.
Page 1 Text Content

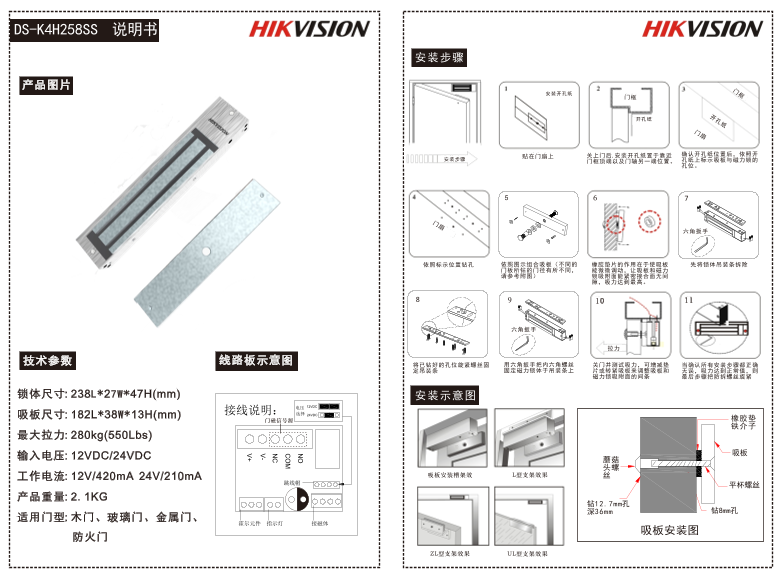

DS-K4H258SS 说明书
锁体尺寸: 238L*27W*47H(mm) 安装示意图
电压 12VDC
接线说明： 选择 24VDC
吸板尺寸: 182L*38W*13H(mm)
最大拉力: 280kg(550Lbs)
输入电压: 12VDC/24VDC
产品重量: 2.1KG
钻12.7mm孔
深36mm 钻8mm孔
