GIGABYTE Motherboard B760I AORUS PRO (Rev.1.0) User Manual - English (Version 1102)
Summary
This essential guide for the B760I AORUS PRO DDR4 Motherboard provides comprehensive instructions for builders and advanced PC users. Master every aspect of your system, covering detailed hardware installation—including CPU mounting, memory setup, and expansion cards. The manual systematically guides you through BIOS configuration, optimal operating system deployment, and driver management to ensure reliable, peak performance from your board.
Page 1 Text Content
B760I AORUS PRO B760I AORUS PRO DDR4
User's Manual Rev. 1102
For more product details, please visit GIGABYTE's website. https://www.gigabyte.com/Motherboard/B760I-AORUS-PRO-rev-10?m=ma#kf https://www.gigabyte.com/Motherboard/B760I-AORUS-PRO-DDR4-rev-10?m=ma#kf
GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Page Summary Contents For GIGABYTE Motherboard B760I AORUS PRO (Rev.1.0) User Manual - English (Version 1102)

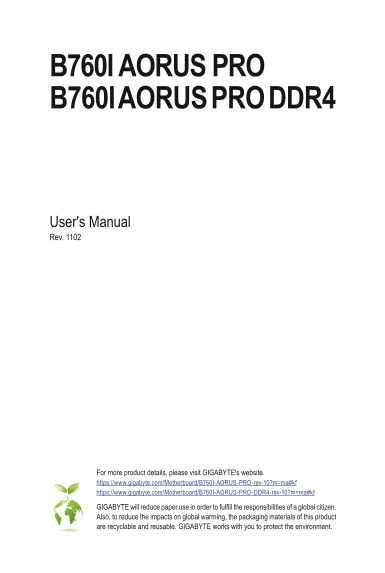

Page 1
B760I AORUS PRO B760I AORUS PRO DDR4 User's Manual Rev. 1102 For more product details, please visit GIGABYTE's website. https://www.gigabyte.com/Motherboard/B760I-AORUS-PRO-rev-10?m=ma#kf https://www....
Page 2
Copyright © 2023 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is...
Page 3
Table of Contents Chapter 1 Product Introduction .......................................................................................4 1-1 Motherboard Layout ..........................................
Page 4
Chapter 1 Product Introduction 1-1 Motherboard Layout SYS_FAN1 CPU_OPT CPU_FAN ATX_12V_2X4 ATX U32G2 LGA1700 U32G2C DP_ HDMI20 SATA3 QFLED QFLASH_ USB 3.2 PLUS Gen 1 Hub B7 I A OR US RO Intel® M2 A_ C...
Page 5
SYS_FAN1 CPU_OPT CPU_FAN ATX_12V_2X4 U32G2 LGA1700 U32G2C HDMI20 SATA3 QFLED QFLASH_ USB 3.2 PLUS Gen 1 Hub B7 I A OR US RO DR Intel® M2 A_ CP U80 2.5Gb E LAN (Note) M2P_SB (Note) DD R4 _A M2_WIFI Int...
Page 6
1-2 Motherboard Block Diagram DDR5 5600 (Note)/5200 (Note)/4800/4400 MT/s j 1 P CI xp re ss x1 PCI Express 4.0 Bus x16 x4 DDR4 3200/3000/2933/2666/2400/2133 MT/s k LGA1700 CPU 1 M.2 Socket 3 (M2A_CPU)...
Page 7
Chapter 2 Hardware Installation 2-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 8
2-2 Product Specifications CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list.) ...
Page 9
Wireless Intel® Killer™ Wi-Fi 6 AX1650 (PCB rev. 1.0) Communication - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band Module k - BLUETOOTH 5.2 - Support for 11ax 160MHz wireless standard and u...
Page 10
Internal 1 x USB Type-C® header, with USB 3.2 Gen 1 support Connectors 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x reset jumper 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel 1 ...
Page 11
2-3 Installing the CPU and CPU Cooler Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU s...
Page 12
B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. Finger Tab jGently press the CPU socket lever handle down and away from the socket. kComple...
Page 13
C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for you...
Page 14
2-4 Installing the Memory Read the following guidelines before you begin to install the memory: Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, ...
Page 15
2-5 Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: Make sure the motherboard supports the expansion card. Carefully read the manual that came...
Page 16
2-6 Back Panel Connectors USB 3.2 Gen 2 Type-A Port (Red) The USB 3.2 Gen 2 port supports the USB 3.2 Gen 2 specification and is compatible to the USB 3.2 Gen 1 and USB 2.0 specification. Use this por...
Page 17
RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following describes the states of the LAN port LEDs. Speed LED Activity LED Speed LED: Activi...
Page 18
2-7 Internal Connectors 1) ATX_12V_2X4 10) CI 2) ATX 11) F_PANEL 3) CPU_FAN 12) SPEAKER 4) SYS_FAN1 13) F_AUDIO 5) CPU_OPT 14) F_U32CG 6) D_LED 15) F_U32 7) LED_C 16) F_USB 8) M2A_CPU/M2P_SB (Note) 17...
Page 19
F_USB30 F_ U F_ F_ DEBUG PORT F_USB3 F 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable powe...
Page 20
F_USB30 F_ U F_USB30 F_ F_ U F_ F_ F_ DE BU PO RT _SB _SB F_USB3 F F_USB3 F 3/4) CPU_FAN/SYS_FAN1 (Fan Headers) All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof in...
Page 21
F_ US B3 F_ F_ F_ F_ US B3 6) D_LED (Addressable LED Strip Header) The header can be used to connect a standard 5050 addressable LED strip, with maximum power rating of 5A (5V) and maximum number of 1...
Page 22
F_USB30 F_ U F_ F_ F_ F_ F_USB30F_ U F_USB3 F _SB S 3 B S S S F_USB3 F 8) M2A_CPU/M2P_SB (Note) (M.2 Socket 3 Connectors) The M.2 connectors on the motherboard support only M.2...
Page 23
DEBUG PORT 9) SATA3 4/5 (SATA 6Gb/s Connectors) j SATA3 4/5/6/7 (SATA 6Gb/s Connectors) k DEBUG The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA PORT 1.5G...
Page 24
10) CI (Chassis Intrusion Header) This motherboard provides a chassis detection feature that detects if the chassis cover has been removed. This function requires a chassis with chassis intrusion dete...
Page 25
12) SPEAKER (Speaker Header) The system reports system startup status by issuing a beep code. One single short beep will be heard if no problem is detected at system startup. This header can also prov...
Page 26
F_USB30 F_ U F_ F_ F_USB3 F 14) F_U32CG (USB Type-C® Header, with USB 3.2 Gen 1 Support) The header conforms to USB 3.2 Gen 1 specification and can provide one USB port. F_USB3 F_USB30 3 B_ Pin No. D...
Page 27
16) F_USB (USB 2.0/1.1 Header) The header conforms to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please ...
Page 28
F_USB30F_ U F_ F_ S 3 B S S S _SB F_USB3 F 18) CLR_CMOS (Clear CMOS Jumper) _ 0 F Use this jumper to clear the BIOS configuration and reset the CMOS values to factory de...
Page 29
Chapter 3 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 30
Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or ...
Page 31
Chapter 4 Installing the Operating System and Drivers 4-1 Operating System Installation With the correct BIOS settings, you are ready to install the operating system. To install an operating system on...
Page 32
4-2 Drivers Installation After you install the operating system, a dialog box will appear on the bottom-right corner of the desktop asking if you want to download and install the drivers and GIGABYTE ...
Page 33
Chapter 5 Appendix 5-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 5 k RAID 10 k Minimum Number of Hard ≥2 ≥3 Drives Number of hard (Number of hard (Number of hard Size of the smallest Array...
Page 34
Regulatory Notices United States of America, Federal Communications Commission Statement Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Nam...
Page 35
European Union (EU) CE Declaration of Conformity CE Declaración de conformidad This device complies with the following directives: Electromagnetic Este producto que llevan la marca CE cumplen con las ...
Page 36
European Community Radio Equipment Directive Compliance Statement: This equipment complies with all the requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU. This equipme...
Page 37
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231 TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : h...
