Page 1

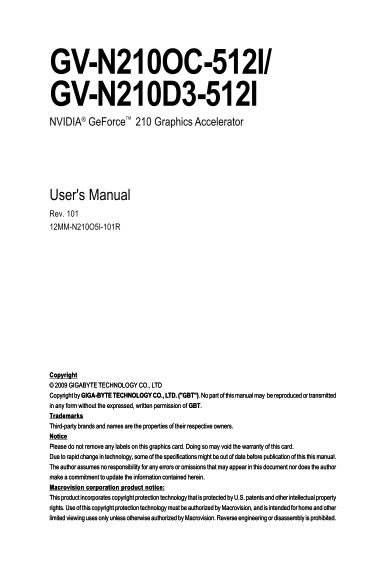

GV-N210OC-512I/ GV-N210D3-512I NVIDIA® Ge Force TM 210 Graphics Accelerator User's Manual Rev. 101 12MM-N210O5I-101R Copyright © 2009 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYTE TECHNOLOGY CO....
Page 2
VGA Card GV-N210OC-512I/GV-N210D3-512I ard -N 210O -512I/ -N 210D 3-512I ep.07,20 Sep.07,2009
Page 3
Table of Contents 1. Introduction 1.1. Features 1.2. Minimum System Requirements 2. Hardware Installation 2.1. Board Layout 2.2. Hardware Installation 3. Software Installation 3.1. Driver and Utility ...
Page 4
1. Introduction 1.1. Features Powered by NVIDIA® Ge Force TM 210 Graphics Processing Unit (GPU) Supports PCI Express 2.0 Integrated with 512MB GDDR2 memory(For GV-N210OC-512I only) Integrated with 512...
Page 5
2. Hardware Installation 2.1. Board Layout SLI Connector D-Sub monitor Connector (15-pin) HDMI Connector DVI-I Connector D-Sub monitor HDMI TV Connector (15-pin) HDMI Connector Analog LCD Monitor Anal...
Page 6
Expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer. 1. T...
Page 7
2.2. Hardware Installation Now that you have prepared your computer, you are ready to install your graphics card. Step 1. Locate the PCI Express x16 slot. If necessary, remove the metal cover from thi...
Page 8
3. Software Installation Notice the following guidelines before installing the drivers: 1. First make sure your system has installed Direct X 9 or later version. 2. Make sure your system has installed...
Page 9
Step 3: Click the Yes button. The system is installing the components. Step 4: Click the Finish button to restart the computer. Then the driver installation is completed. - 9 - Software Installation
Page 10
3.1.2. GIGABYTE Gamer HUD Lite on Driver Disk Step 1: Click the GIGABYTE Gamer HUD Lite item. Step 2: Choose the language for the installation and click the OK button. Step 3: Step 4: Click the Next b...
Page 11
GIGABYTE Gamer HUD Lite The GIGABYTE Gamer HUD Lite allows you to adjust the voltage of your graphics card and the working frequency of the GPU, Shader, and video memory. Help page Displays the curren...
Page 12
3.2. Display Properties Pages Display Settings (Resolutions and Color Quality for Windows) To access Display Settings page, right-click on desktop and select Personalize, then the Personalization wind...
Page 13
3.3. Accessing NVIDIA Control Panel After installation of the display driver, right-click on the desktop and select NVIDIA Control Panel. The NVIDIA Control Panel is used to configure all your graphic...
Page 14
Select the view of the NVIDIA Control Panel that is most appropriate for you. Standard Settings Advanced Settings The following pages provide details on configuring advanced settings. In the NVIDIA Co...
Page 15
3D Settings Tasks in the 3D Settings pages allow you to do the following: Change the image and rendering settings of your 3D applications and games that utilize Direct3D and Open GL technology. Overri...
Page 16
Display A variety of display features enable you to further manipulate and configure your display settings to optimize the use of your displays. Tasks in the Display pages allow you to do the followin...
Page 17
Adjust Desktop Color Settings Use this page to set the contrast, sharpness, and color depth (Digital Vibrance) of the im- ages on your desktop. These changes will not affect any video playback. To cha...
Page 18
Set Up Multiple Displays NVIDIA n View technology enables you to view your desktop in one of several multi-display modes to make the best use of the displays (monitors) that are connected to your comp...
Page 19
(3) As one large horizontal desktop (Horizontal span) (Note 1) Horizontal Span mode indicates that both displays in the display pair function as one wide virtual desktop. The width of each display is ...
Page 20
Video & Television Video and television features are similar to those for analog for optimal viewing. Tasks in the Video & Television pages allow you to do the following: Adjust your televisio...
Page 21
4. Troubleshooting Tips The following troubleshooting tips may help if you experience problems. Contact your dealer or GIGABYTE for more advanced troubleshooting information. Check that the card is se...
Page 22
5. Appendix 5.1. How to Reflash the BIOS in MS-DOS Mode 1. Extract the downloaded Zip file to your hard disk(s) or floppy disk. This procedure assumes drive A. 2. Restart the computer in MS-DOS mode. ...
Page 23
5.2. Resolutions and Color Depth Tables Ge Force 210 Single Display Standard Modes Display Refresh Color Depth (bpp) Screen Rate 8bpp(256 color) 16bpp(65K color) 32bpp(16.7M) Resolution (Hz) Standard ...
Page 24
Display Refresh Color Depth (bpp) Screen Rate 8bpp(256 color) 16bpp(65K color) 32bpp(16.7M) Resolution (Hz) Standard mode High mode True mode 1600 x 1200 60~100 1920 x 1440 60~85 2048 x 1536 60~85 256...
Page 25
5.3. Regulatory Statements Regulatory Notices This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unaut...
Page 26
Finally, we suggest that you practice other environmentally friendly actions by understanding and using the energy-saving features of this product (where applicable), recycling the inner and outer pac...
Page 27
- 27 - Appendix
Page 28
- 28 -GV-N210 Series Graphics Accelerator
