Elevate your kitchen with this contemporary wall chimney rangehood, featuring sleek black glass and stainless steel. Capable of powerful 800m³/hr extraction and equipped with smart features like a timer and energy-efficient LED lighting, it efficiently removes grease and odors. This quick reference guide provides everything needed—from installation steps to maintenance tips—ensuring easy filter cleaning and optimal performance for modern homeowners seeking high-style, high-performance appliances.
Page 1 Text Content

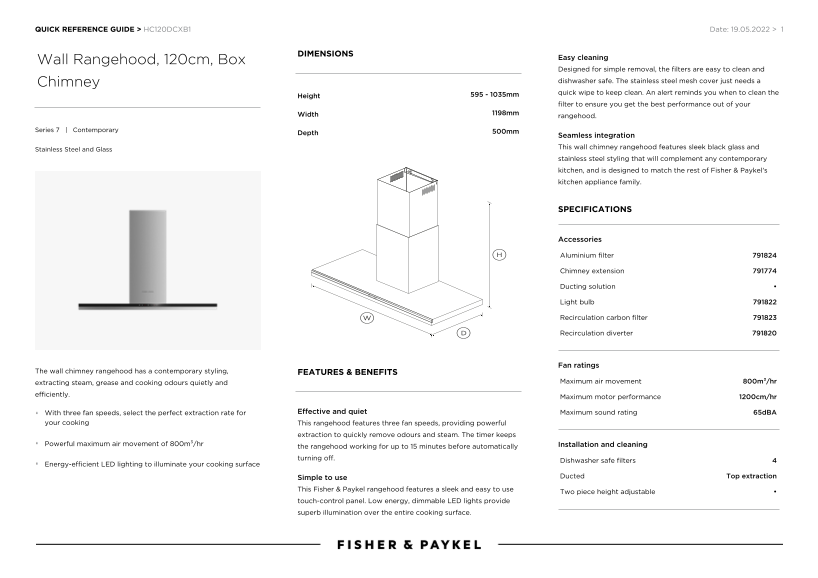

QUICK REFERENCE GUIDE > HC120DCXB1 Date: 19.05.2022 > 1
DIMENSIONS
Easy cleaning
Wall Rangehood, 120cm, Box
Designed for simple removal, the filters are easy to clean and Chimney dishwasher safe. The stainless steel mesh cover just needs a quick wipe to keep clean. An alert reminds you when to clean the
Height 595 - 1035mm
filter to ensure you get the best performance out of your
Width 1198mm
rangehood.
Series 7 | Contemporary 500mm
Depth
Seamless integration This wall chimney rangehood features sleek black glass and
Stainless Steel and Glass
stainless steel styling that will complement any contemporary kitchen, and is designed to match the rest of Fisher & Paykel's kitchen appliance family.
SPECIFICATIONS
Accessories
Aluminium filter
Chimney extension
Ducting solution
Light bulb
Recirculation carbon filter
Recirculation diverter
Fan ratings
The wall chimney rangehood has a contemporary styling, FEATURES & BENEFITS
extracting steam, grease and cooking odours quietly and Maximum air movement 800m³/hr
efficiently.
Maximum motor performance 1200cm/hr
With three fan speeds, select the perfect extraction rate for Effective and quiet Maximum sound rating 65d BA
your cooking This rangehood features three fan speeds, providing powerful
extraction to quickly remove odours and steam. The timer keeps
Powerful maximum air movement of 800m³/hr Installation and cleaning
the rangehood working for up to 15 minutes before automatically turning off.
Dishwasher safe filters
Energy-efficient LED lighting to illuminate your cooking surface
Simple to use Ducted Top extraction
This Fisher & Paykel rangehood features a sleek and easy to use
Two piece height adjustable •
touch-control panel. Low energy, dimmable LED lights provide superb illumination over the entire cooking surface.
Page Summary Contents For Fisher&Paykel Wall-mounted Hood Range Cooker T-Type (Model HC120DCXB1) Quick Reference Guide - 120cm, T-Type (HC120DCXB1)
Manual Details
| Brand | Hood |
|---|---|
| Pages | 2 |
| File Size | 183.04 KB |
| Published | May 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How are the rangehood filters cleaned?
The filters are easy to clean and can be safely run through a dishwasher.
What is the maximum air movement rate?
It provides maximum air movement of 800m³/hr for effective odour removal.
Does the rangehood have an automated shut-off feature?
Yes, it will automatically turn off after running for up to 15 minutes.
What kind of extraction type does this model utilize?
This unit features ducted top extraction capabilities.
