This comprehensive technical data sheet provides essential measurements for the TP HPB9048-2 rangehood, ensuring precise installation planning. It details all critical dimensions for installers, including overall unit size, duct connections, power cord locations, and exact cabinetry cutout requirements. Ideal for kitchen remodellers and fitters, this guide covers electrical specifications (240V) and crucial clearances needed to achieve a flawless and professional install every time.

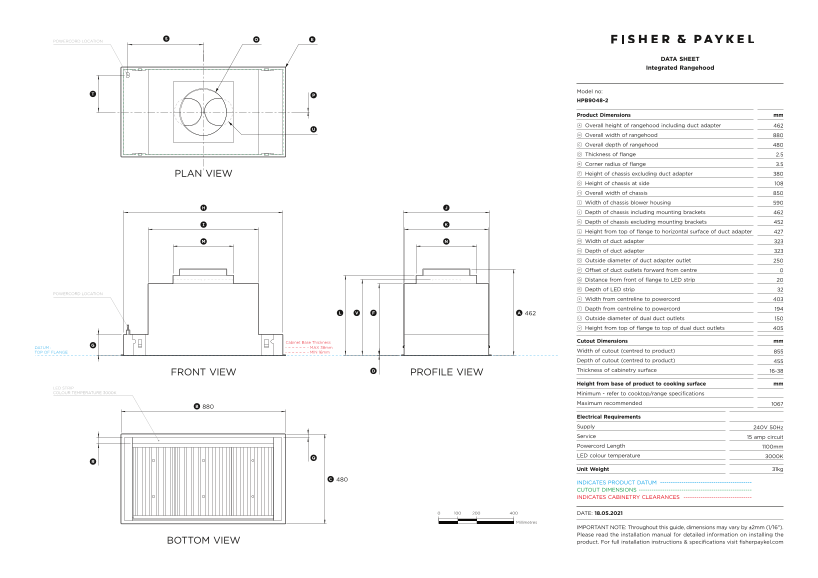

Page 1 Text Content
POWERCORD LOCATION
DATA SHEET Integrated Rangehood
Model no: HPB9048-2
Product Dimensions mm
a Overall height of rangehood including duct adapter 462 B Overall width of rangehood c Overall depth of rangehood d Thickness of flange 2.5 E Corner radius of flange 3.5 PLAN VIEW f Height of chassis excluding duct adapter g Height of chassis at side h Overall width of chassis i Width of chassis blower housing j Depth of chassis including mounting brackets k Depth of chassis excluding mounting brackets l Height from top of flange to horizontal surface of duct adapter M Width of duct adapter N Depth of duct adapter o Outside diameter of duct adapter outlet p Offset of duct outlets forward from centre q Distance from front of flange to LED strip r Depth of LED strip
POWERCORD LOCATION
s Width from centreline to powercord t Depth from centreline to powercord
U Outside diameter of dual duct outlets V Height from top of flange to top of dual duct outlets
Cabinet Base Thickness Cutout Dimensions mm
DATUM : MAX 38mm
TOP OF FLANGE MIN 16mm Width of cutout (centred to product)
Depth of cutout (centred to product) Thickness of cabinetry surface 16-38
FRONT VIEW PROFILE VIEW
Height from base of product to cooking surface mm
LED STRIP COLOUR TEMPERATURE 3000K Minimum - refer to cooktop/range specifications
Maximum recommended
Electrical Requirements
Supply 240V 50Hz Service 15 amp circuit Powercord Length 1100mm LED colour temperature 3000K
Unit Weight 31kg
INDICATES PRODUCT DATUM ------------------------------------------- CUTOUT DIMENSIONS ----------------------------------------------------- INDICATES CABINETRY CLEARANCES --------------------------------
DATE: 18.05.2021
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm (1/16''). Please read the installation manual for detailed information on installing the
BOTTOM VIEW product. For full installation instructions & specifications visit fisherpaykel.com
