Fairchild MMSZ4688 SOD123 Zener Data Handbook
Summary
This manual details the MMSZ4688 zener diode, a half-watt surface mount component with a 5% tolerance. It covers electrical characteristics and absolute maximum ratings for general purpose voltage regulation in Class 3 ESD environments.

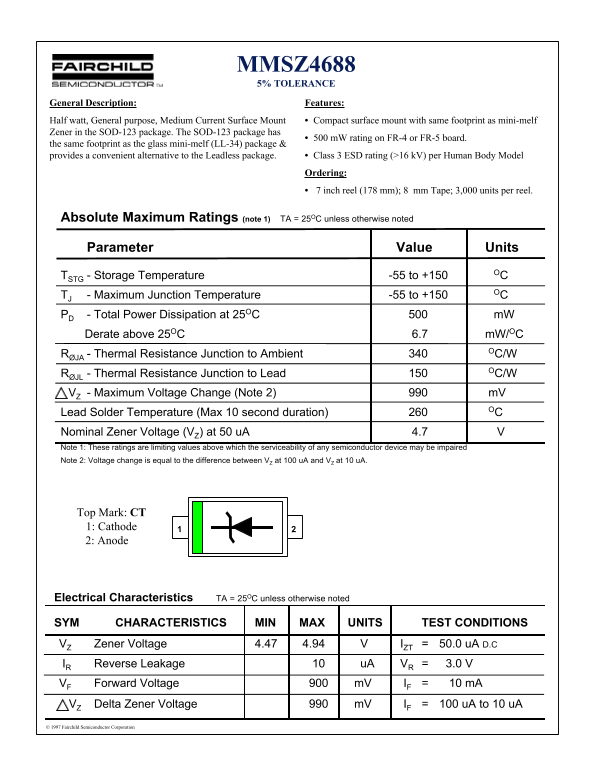

Page 1 Text Content
MMSZ4688 5% TOLERANCE
General Description: Features: Half watt, General purpose, Medium Current Surface Mount Compact surface mount with same footprint as mini-melf Zener in the SOD-123 package. The SOD-123 package has
500 m W rating on FR-4 or FR-5 board.
the same footprint as the glass mini-melf (LL-34) package &
provides a convenient alternative to the Leadless package. Class 3 ESD rating (>16 k V) per Human Body Model Ordering: 7 inch reel (178 mm); 8 mm Tape; 3,000 units per reel.
Absolute Maximum Ratings (note 1) TA = 25OC unless otherwise noted
Parameter Value Units
TSTG - Storage Temperature -55 to +150 TJ - Maximum Junction Temperature -55 to +150 OC PD - Total Power Dissipation at 25OC m W Derate above 25OC 6.7 m W/OC RØJA - Thermal Resistance Junction to Ambient 340 OC/W RØJL - Thermal Resistance Junction to Lead 150 OC/W VZ - Maximum Voltage Change (Note 2) m V Lead Solder Temperature (Max 10 second duration) OC Nominal Zener Voltage (VZ) at 50 u A 4.7 Note 1: These ratings are limiting values above which the serviceability of any semiconductor device may be impaired Note 2: Voltage change is equal to the difference between VZ at 100 u A and VZ at 10 u A.
Top Mark: CT 1: Cathode 2: Anode
Electrical Characteristics TA = 25OC unless otherwise noted
SYM CHARACTERISTICS MIN MAX UNITS TEST CONDITIONS VZ Zener Voltage 4.47 4.94 IZT 50.0 u A D.C IR Reverse Leakage u A VR 3.0 V VF Forward Voltage m V IF 10 m A VZ Delta Zener Voltage m V IF 100 u A to 10 u A © 1997 Fairchild Semiconductor Corporation
Page Summary Contents For Fairchild MMSZ4688 SOD123 Zener Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 2 |
| File Size | 24.28 KB |
| Published | June 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the package type and power rating?
It is a SOD-123 surface mount package with a 500 mW total power dissipation rating at 25°C.
What are its key electrical parameters?
Zener voltage (Vz) is 4.7V nominal; maximum forward voltage is 990 mV; maximum zener voltage change is 6.7 mV/°C.
What are the storage and operating temperature limits?
Storage temperature range is -55°C to +150°C. Maximum junction temperature is 260°C.
How can it be ordered and is it ESD rated?
It is supplied on 7-inch tape and reel (3,000 units/reel) and has a Class 3 ESD rating (>16 kV HBM).
