Dell S2721Q Monitor Dell Display Manager User's Guide

Summary

This user guide provides comprehensive documentation for the Dell Display Manager. The document covers installation procedures, configuration instructions, setup instructions. This documentation is intended for end users and system administrators, general users and IT support. The manual provides detailed guidance to ensure proper operation and maintenance of the Dell Display Manager. Users will find step-by-step instructions and technical details necessary for effective utilization of the product.

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 13 ›

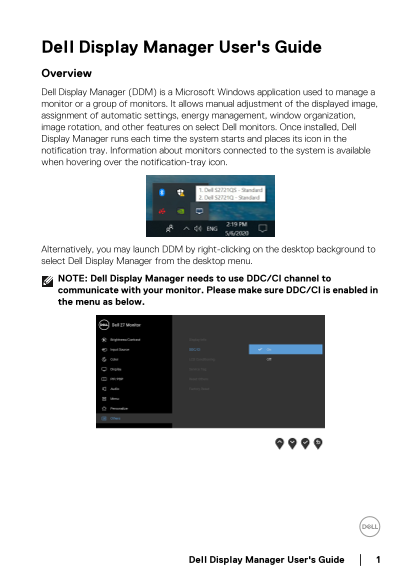

‹ Dell S2721Q Monitor Dell Display Manager User's Guide - Page 1 ›

Page 1 Text Content

Dell Display Manager User's Guide Overview Dell Display Manager (DDM) is a Microsoft Windows application used to manage a monitor or a group of monitors. It allows manual adjustment of the displayed image, assignment of automatic settings, energy management, window organization, image rotation, and other features on select Dell monitors. Once installed, Dell Display Manager runs each time the system starts and places its icon in the notification tray. Information about monitors connected to the system is available when hovering over the notification-tray icon.

Alternatively, you may launch DDM by right-clicking on the desktop background to select Dell Display Manager from the desktop menu. NOTE: Dell Display Manager needs to use DDC/CI channel to communicate with your monitor. Please make sure DDC/CI is enabled in the menu as below.

Dell Display Manager User's Guide

Page Summary Contents For Dell S2721Q Monitor Dell Display Manager User's Guide

Page 1 Dell Display Manager User's Guide Overview Dell Display Manager (DDM) is a Microsoft Windows application used to manage a monitor or a group of monitors. It allows manual adjustment of the displayed i...
Page 2 Using the Quick Settings Dialog Clicking Dell Display Manager's notification tray icon opens the Quick Settings dialog box. When more than one supported Dell monitors are connected to the computer, a ...
Page 3 Setting Basic Display Functions You can manually select a preset mode or you can select Auto Mode that applies a preset mode based on the active application. An onscreen message momentarily displays t...
Page 4 Assigning Preset Modes to Applications The Auto Mode tab allows you to associate a specific Preset Mode with a specific application, and apply it automatically. When Auto Mode is enabled, Dell Display...
Page 5 For Windows 10, you can apply different window layouts for each of the virtual desktops. If you often use Windows snap feature, you can select “Hold down the SHIFT key to enable zone positioning”. Thi...
Page 6 There are other advanced ways for the usage of Easy Arrange. Refer to table below. Feature Function Description Enhanced Easy Custom layouts Save and name 5 customized Easy Arrange Arrange patterns. C...
Page 7 Managing Multiple Video Inputs The Input Manager tab provides convenient ways for you to manage multiple video inputs connected to your Dell monitor. This makes it very easy to switch between inputs w...
Page 8 Click the PIP/PBP mode selection button to set the preferred configuration. The available modes are Off, Small, Large, and PBP. You can select video inputs for your main window and sub window. Please ...
Page 9 Restoring Application Positions DDM can help you restore application windows into their positions when you reconnect your PC to the monitor(s). You can quickly access this feature by right- clicking o...
Page 10 Attaching DDM to active windows For Windows 10, you can add the DDM shortcut icon to the toolbar region of active windows. To activate this feature, right-click on the DDM icon in the notification tra...
Page 11 Applying Energy Conservation Features The Options tab provides Power Nap energy conservation options and allows you to customize keyboard shortcuts. In the upper pane, you can choose to set the monito...
Page 12 Troubleshooting If DDM cannot work with your monitor, DDM will show below icon in your notification tray. Click on the icon, DDM shows a more detailed error message. Please note that DDM only works wi...
Page 13 Virtual and wireless displays do not support DDC/CI Some early models of DP 1.2 monitors, it may be necessary to disable MST/ DP 1.2 using the monitor OSD If your PC is connected to the Internet, you ...

Manual Details

Brand Dell
Pages 13
File Size 2.44 MB
Published June 16, 2026
6 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What are the requirements for Dell Display Manager to work with a monitor?

Dell Display Manager requires the monitor to be a Dell brand, have DDC/CI enabled, and use a correctly connected video cable.

How do I troubleshoot if Dell Display Manager fails to detect my monitor?

Ensure the video cable is firmly connected, check the monitor OSD for DDC/CI, verify the correct graphics driver is installed, and remove any docking stations or extenders.

Can I organize windows across multiple monitors using Easy Arrange?

Yes, select 'Span multiple monitors' to apply Easy Arrange layouts across all monitors as one desktop, provided monitors are aligned properly.

How do I assign specific display presets to different applications?

Enable Auto Mode and associate a specific Preset Mode with a particular application; DDM will automatically switch to that preset when the app is activated.
