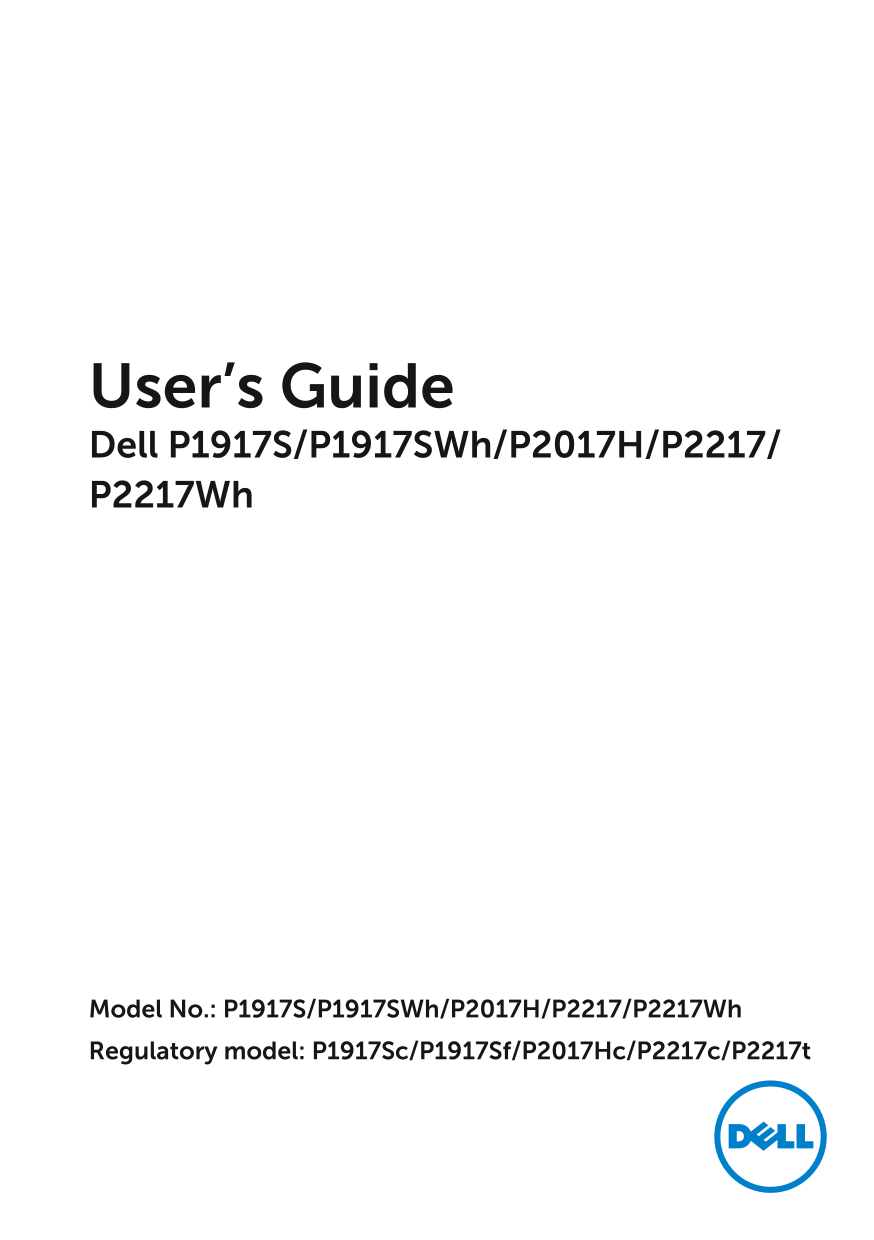

User’s Guide Dell P1917S/P1917SWh/P2017H/P2217/ P2217Wh
Model No.: P1917S/P1917SWh/P2017H/P2217/P2217Wh Regulatory model: P1917Sc/P1917Sf/P2017Hc/P2217c/P2217t
Page Summary Contents For Dell P2017H Monitor User’s GuideIn the given example, only the monitor-related part needs to be translated. The Dell brand name is removed as per the rules provided.Final translation: Dell P2017H Monitor User’s Guide
Page 1
User’s Guide Dell P1917S/P1917SWh/P2017H/P2217/ P2217Wh Model No.: P1917S/P1917SWh/P2017H/P2217/P2217Wh Regulatory model: P1917Sc/P1917Sf/P2017Hc/P2217c/P2217t
Page 2
Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates potential damage to hardware or loss of data if...
Page 3
Contents About your monitor ................................................................ Package contents .......................................................................................5 P...
Page 4
Using the on-screen display (OSD) menu ..........................................38 Setting up your monitor ..........................................................................54 Using the Tilt,...
Page 5
About your monitor Package contents Your monitor ships with the components shown below. Ensure that you have received all the components and Contacting Dell if something is missing. NOTE: Some items m...
Page 6
Stand base Power cable (varies by country) ll ri ht re er ve d. VGA cable nc . Al l ri gh ts r es rve d. DP Cable l rig hts re se rve d. USB 3.0 Upstream Cable (Enables the USB Ports on the Monitor) D...
Page 7
Product features The Dell P1917S/P1917SWh/P2017H/P2217/P2217Wh flat panel display has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD), and LED backlight. The monitor feature...
Page 8
Identifying parts and controls Front View Front panel controls Label Description Function buttons (For more information, see Operating your monitor) Power on/off button (with LED indicator) NOTE: For ...
Page 9
Back View Monitor Plano Panel /Moniteur écran plat /液晶顯示器 P1917S 輸入電源:交流電壓100-240伏特,1.6安培,50/60赫茲 Modelo /N°de modelo /型號: P1917Sc Entrade /Daya Tegangan:100-240V 50/60Hz,1.6A Consumo de energía: xx.x...
Page 10
Side View Label Description Use USB downstream port Connect your USB device. NOTE: To use this port, you must connect the USB cable (shipped with your monitor) to the USB-upstream port on the monitor ...
Page 11
CAN ICES-3 (B)/NMB-3(B) XXXXXXX-XXXXX MSIP-REM-TPV-SE2416Hc Bottom View Bottom view without monitor stand Label Description Use Power port Connect the power cable. HDMI port Connect your computer with...
Page 12
Monitor specifications Model P1917S/P1917SWh P2017H Screen type Active matrix - TFT LCD Panel type In-Plane Switching Technology Viewable image Diagonal 480.00 mm (19.00 in) 494.11 mm (19.45 in) Horiz...
Page 13
Border width (edge of 16.9mm (Top) 18.1mm (Top) monitor to active area) 15.4mm(Left/Right) 13.8mm(Left/Right) 17.6mm(Bottom) 18.8mm(Bottom) Security Security lock slot (cable lock sold separately) Adj...
Page 14
Model P2217/P2217Wh Screen type Active matrix - TFT LCD Panel type Twisted Nematic Viewable image Diagonal 558.68 mm (22.00 in) Horizontal, Active Area 473.76 mm (18.65 in) Vertical, Active Area 296.1...
Page 15
Border width (edge of 16.8mm (Top) monitor to active area) 14.8mm(Left/Right) 17.5mm(Bottom) Security Security lock slot (cable lock sold separately) Adjustability Height adjustable stand (130mm) Tilt...
Page 16
Preset display modes P1917S/P1917SWh Display Mode Horizontal Vertical Pixel Clock Sync Polarity Frequency Frequency (MHz) (Horizontal / (k Hz) (Hz) Vertical) VESA, 720 x 400 31.5 70.1 28.3 VESA, 640 x...
Page 17
P2217/P2217Wh Display Mode Horizontal Vertical Pixel Clock Sync Polarity Frequency Frequency (MHz) (Horizontal / (k Hz) (Hz) Vertical) VESA, 720 x 400 31.5 70.1 28.3 VESA, 640 x 480 31.5 60.0 25.2 VES...
Page 18
Physical characteristics Model P1917S/P1917SWh P2017H P2217/P2217Wh Signal cable type Digital: detachable, HDMI, 19 pins. Digital: detachable, DP, 20 pins. Analog: detachable, D-Sub, 15 pins Universal...
Page 19
Environmental characteristics Model P1917S/ P2017H P2217/P2217Wh P1917SWh Compliant Standards Energy Saver feature for Energy Star certified Monitor EPEAT Gold registered in the U.S. EPEAT registratio...
Page 20
P1917S/P1917SWh VESA Horizontal Vertical Video Power Power Modes Sync Sync Indicator Consumption Normal Active Active Active White 38 W (maximum)** operation 14 W (typical,without USB load) Active-off...
Page 21
** Maximum power consumption with max luminance. This document is informational only and reflects laboratory performance. Your product may perform differently, depending on the software, components an...
Page 22
Pin assignments VGA connector Pin Number 15-pin Side of the Connected Signal Cable Video-Red Video-Green Video-Blue GND Self-test GND-R GND-G GND-B Computer 5V/3.3V GND-sync GND DDC data H-sync V-sync...
Page 23
HDMI connector Pin Number 19-pin Side of the Connected Signal Cable T.M.D.S. Data 2+ T.M.D.S. Data 2 Shield T.M.D.S. Data 2- T.M.D.S. Data 1+ T.M.D.S. Data 1 Shield T.M.D.S. Data 1 - T.M.D.S. Data 0+ ...
Page 24
Display Port connector Pin Number 20-pin Side of the Connected Signal Cable ML3 (n) GND ML3 (p) ML2 (n) GND ML2 (p) ML1 (n) GND ML1 (p) ML0 (n) GND ML0 (p) GND GND AUX (p) GND AUX (n) Hot Plug Detect ...
Page 25
Universal serial bus (USB) interface This section gives you information about the USB ports that are available on the monitor. NOTE: This monitor is Super-Speed USB 3.0 and High-Speed USB 2.0 compatib...
Page 26
USB 3.0 downstream connector Pin Number 9-pin Side of the Connector VCC D- D+ 4 GND SSRX- SSRX+ GND SSTX- SSTX+ USB 2.0 Downstream Connector Pin Number 4-pin Side of the Connector 1 VCC DMD DPD 4 GND ...
Page 27
USB Ports 1 x USB 3.0 upstream - bottom 2 x USB 2.0 downstream - bottom 2 x USB 3.0 downstream - side NOTE: USB 2.0 functionality requires a USB 2.0-capable computer. NOTE: The monitor’s USB interface...
Page 28
Plug and play capability You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID)...
Page 29
Setting up the monitor Attaching the stand NOTE: The stand is detached when the monitor is shipped from the factory. NOTE: This is applicable for a monitor with a stand. When any other stand is bought...
Page 30
6. Attach the stand assembly to the monitor. a. Fit the two tabs on the upper part of the stand to the groove on the back of the monitor. b. Press the stand down till it snaps into place. 7. Place the...
Page 31
Connecting your monitor WARNING: Before you perform any of the procedures in this section, follow the Safety instructions. NOTE: Do not connect all cables to the computer at the same time. It is recom...
Page 32
Connecting the DP cable Connecting the USB 3.0 cable After you have completed connecting the DP/HDMI cable, follow the procedures below to connect the USB 3.0 cable to the computer and complete your m...
Page 33
Organizing cables Use the cable-management slot to organize the cables connected to your monitor. Setting up the monitor | 33
Page 34
Disconnecting the monitor stand NOTE: To prevent scratches on the LCD screen while removing the stand, ensure that the monitor is placed on a soft and clean surface. NOTE: This is applicable for a mon...
Page 35
Wall mounting (optional) Monitor Plano Panel /Moniteur écran plat /液晶顯示器 Modelo /N°de modelo /型號: P1917Sc 輸入電源:交流電壓100-240伏特,1.6安培,50/60赫茲 Entrade /Daya Tegangan:100-240V 50/60Hz,1.6A Consumo de energ...
Page 36
Operating your monitor Power on the monitor Press the button to turn on the monitor. Using the front panel controls Use the control buttons on the front of the monitor to adjust the image being displa...
Page 37
Use the power button to turn the monitor on and off. Power On/Off button (with Solid white light indicates the monitor is turned LED indicator) on. Blinking white light indicates it is in power- save ...
Page 38
Using the on-screen display (OSD) menu Accessing the OSD menu NOTE: Any changes you make are automatically saved when you move to another menu, exit the OSD menu, or wait for the OSD menu to automatic...
Page 39
Icon Menu and Description Submenus Brightness/ Use this menu to activate brightness/contrast adjustment. Contrast Dell P1917S/P1917SWh Energy Use Dell P2017H Energy Use Brightness / Contrast Brightnes...
Page 40
Auto Adjust Use this key to activate automatic setup and adjust menu. Dell P1917S/P1917SWh Energy Use Dell P2017H Energy Use Brightness / Contrast Brightness / Contrast Press to adjust the screen auto...
