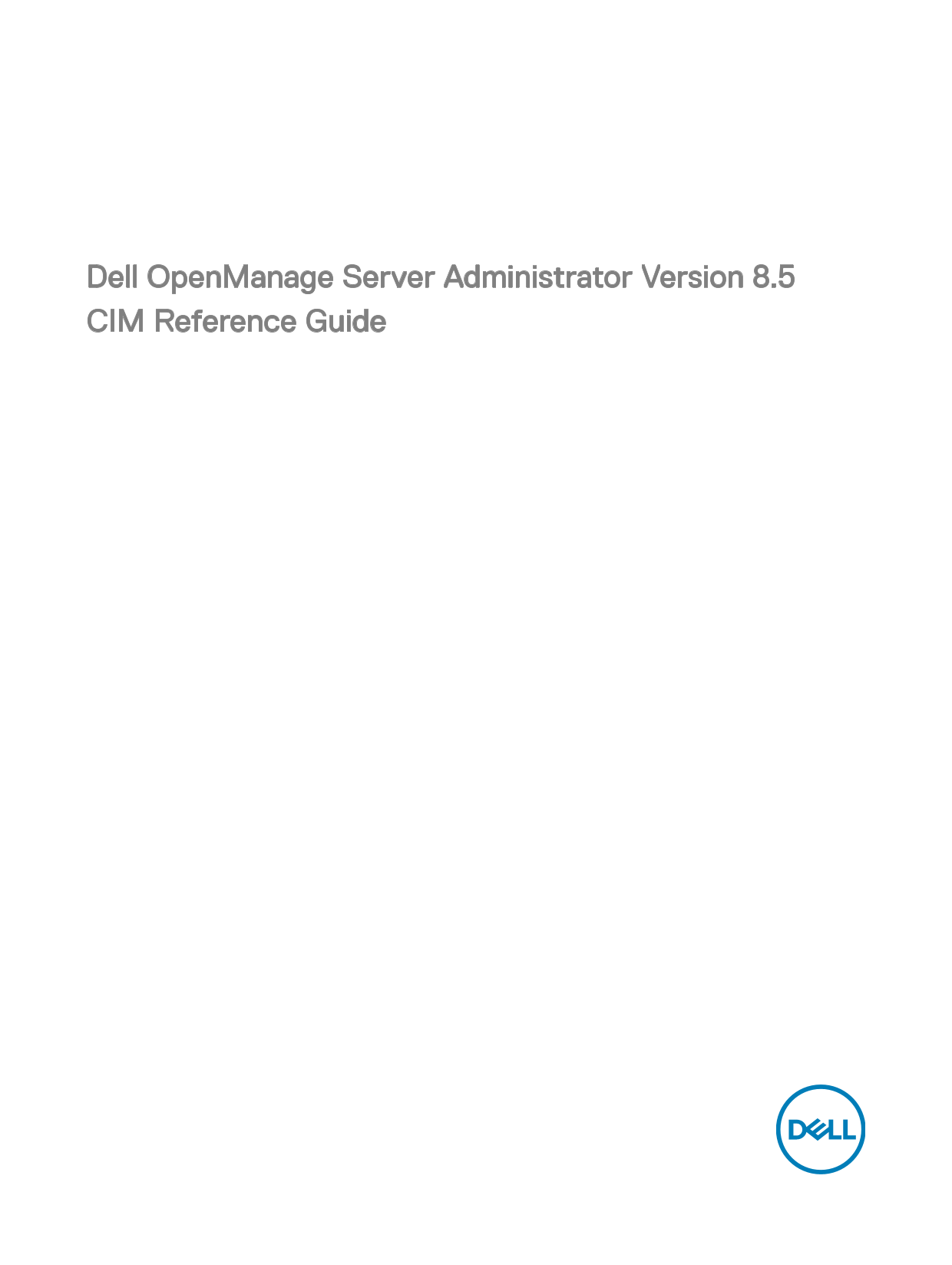

Dell Open Manage Server Administrator Version 8.5 CIM Reference Guide
Page Summary Contents For Dell OpenManage Server Administrator Version 8.5 CIM Reference GuideNote: The section with multiple model numbers has been condensed into a single title, following the rule of not adding extra information.
Page 1
Dell Open Manage Server Administrator Version 8.5 CIM Reference Guide
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents 1 Introduction..................................................................................................................... Server Administrator..........................................
Page 4
CIM_Keyboard..................................................................................................................................................................37 CIM_Power Supply..........
Page 5
5 CIM_Dependency..........................................................................................................78 DELL_Fan Sensor...............................................................
Page 6
Introduction This reference guide documents the Dell Open Manage Server Administrator Common Information Model (CIM) provider contained in the Management Object File (MOF) dccim32.mof. CIM provides a ...
Page 7
DELL_Esm Log: Record Number DELL_Post Log: Record Number DELL_BIOSExtensions: system BIOSCharacteristics DELL_BIOSSettings: Display Name CIM_Service Access Point: System Creation Class Name, System Na...
Page 8
Dell-Defined Classes Server Administrator has extended some CIM classes and has created new classes to assist in managing systems and their components. In this document, the illustrations of the class...
Page 9
Property Description Data Type property can be overridden to be a Key property. Status Provides a string indicating the status of string the component. Status values include: Operational Status Values...
Page 10
Other Documents You May Need Besides this Dell Open Manage Server Administrator CIM Reference Guide, you can find the following documents on the Dell Support website at dell.com/support/manuals: Dell ...
Page 11
CIM_Physical Element CIM_Physical Element is a CIM-defined class. The CIM_Physical Element class contains the subclasses shown in Figure CIM_Physical Element Class Structure CIM_Physical Element Subcl...
Page 12
Tag Uniquely identifies the physical string element and serves as the element’s key. The Tag property can contain information such as asset tag or serial number data. The key for a physical element is...
Page 13
higher clock rating. In this case, the microprocessor is said to be replaceable. CIM_Physical Frame The CIM_Physical Frame class described in Table properties contains other frame enclosures such as r...
Page 14
Property Description Data Type Chassis Types Values for the Chassis Types uint16 property are: 1. Other 2. Unknown 3. Mini-tower 4. Tower 5. Space-saving 6. Main system chassis 7. Expansion chassis 8....
Page 15
Class Name: DELL_Chassis Parent Class: CIM_Chassis Property Description Data Type System ID Indicates the system identifier code. uint16 Log Format Defines whether the event log data is uint16 unicode...
Page 16
Class Name: DELL_Chassis Parent Class: CIM_Chassis Property Description Data Type Chassis Node ID Chassis Node ID string CIM_Physical Component The CIM_Physical Component class listed in Table below r...
Page 17
7 — SIMM 8 — DIMM 9 — TSOP 10 — PGA 11 — RIMM 12 — SODIMM 13 — SRIMM 14 — SMD 15 — SSMP 16 — QFP 17 — TQFP 18 — SOIC 19 — LCC 20 — PLCC 21 — BGA 22 — FPBGA 23 — LGA 24 — FB-DIMM CIM_Physical Memory Th...
Page 18
0 - Unknown 1 - Other 2 - DRAM 3 - Synchronous DRAM 4 - Cache DRAM 5 - EDO 6 - EDRAM 7 - VRAM 8 - SRAM 9 - RAM 10 - ROM 11 — Flash 12 - EEPROM 13 - FEPROM 14 - EPROM 15 - CDRAM 16 - 3DRAM 17 - SDRAM 1...
Page 19
the memory is solely used to provide error correction bits. Speed Indicates the speed of the uint32 physical memory, in nanoseconds. Rank The Rank values of DIMM are: unit32 0 - Unknown 1 - Single 2 -...
Page 20
CIM_Physical Connector The CIM_Physical Connector class listed in Physical Connector Properties includes physical elements such as plugs, jacks, or buses that connect physical elements. Any object tha...
Page 21
10 - SCSI SCA-II (80 pins) 40 - Fiber MIC 70 - Mini-Centronics Type-26 100 - Sbus IEEE 1396-1993 64- 11 - Fibre Channel (DB-9 41 - unused 71 - Bus mouse 101 - unused Copper) 12 - Fibre Channel (Fiber ...
Page 22
Connector Type See Connector Type Values uint16 Supports Hot Plug Indicates whether the slot Boolean supports hot-plug adapter cards. Max Data Width Indicates the maximum bus uint16 width in bits of a...
Page 23
17 - AGP 4X 18 - PCI-X 19 - AGP 8X 160 - PC-98/C20 161 - PC-98/C24 162 - PC-98/E 163 - PC-98/Local bus 164 - PC-98/Card 165 - PCI Express 166 - PCI Express x1 167 - PCI Express x2 168 - PCI Express x4...
Page 24
CIM_Logical Element CIM_Logical Element is a CIM-defined class containing the subclasses described in below Figure.
Page 25
CIM_Logical Element Table properties list the following characteristics for members of the CIM_Logical Element class: Represent abstractions used to manage and coordinate aspects of a physical environ...
Page 26
plays in the IT environment. For example, for an instance of a network system, the Roles property might contain the string "storage system." CIM_Computer System The CIM_Computer System class...
Page 27
Table 18. CIM_Logical Device Properties Class Name: CIM_Logical Device Parent Class: CIM_Logical Element Property Description Data Type System Creation Class Name See Common Properties of string Class...
Page 28
FRURevision Name Indicates the FRU revision string number. CIM_Sensor The CIM_Sensor class described in Table below contains hardware devices capable of measuring the characteristics of some physical ...
Page 29
Possible States Enumerates the string outputs string of the sensor. For example, a Numeric Sensor can report states based on threshold readings. Current State Indicates the current state of string the...
Page 30
Table 22. CIM_Numeric Sensor Properties Class Name: CIM_Numeric Sensor Parent Class: CIM_Sensor Property Description Data Type Unit Modifier See Common Properties of sint32 Classes Current Reading See...
Page 31
Lower Threshold Non Critical See Common Properties of sint32 Classes Upper Threshold Non Critical See Common Properties of sint32 Classes Lower Threshold Critical See Common Properties of sint32 Class...
Page 32
Table 23. CIM_Temperature Sensor Properties Class Name: CIM_Temperature Sensor Parent Class: CIM_Numeric Sensor Property Description Data Type Unit Modifier See Common Properties of Classes sint32 Cur...
Page 33
CIM_Voltage Sensor The CIM_Voltage Sensor class described in Table below contains sensors that measure voltage and return a value in volts. Table 25. CIM_Voltage Sensor Properties Class Name: CIM_Volt...
Page 34
Lower Threshold Non Critical See Common Properties of Classes sint32 Upper Threshold Non Critical See Common Properties of Classes sint32 CIM_Watch Dog The CIM_Watch Dog class described in Table below...
Page 35
The CIM_Cooling Device class described in CIM_Cooling Device contains a set of devices that work to keep the ambient internal temperature of the system at a safe value. Table 28. CIM_Cooling Device Pr...
Page 36
Table 30. CIM_User Device Properties Class Name: CIM_User Device Parent Class: CIM_Logical Device Property Description Data Type Is Locked Indicates if the device is locked, Boolean preventing user in...
Page 37
1 — Not applicable 2 — Right-handed operation 3 — Left-handed operation CIM_Keyboard The CIM_Keyboard class described in Table below includes devices that allow users to enter data. Table 32. CIM_Keyb...
Page 38
Table 33. CIM_Power Supply Properties Class Name: CIM_Power Supply Parent Class: CIM_Logical Device Property Description Data Type Is Switching Supply Indicates that the power supply is a Boolean swit...
Page 39
Table 34. CIM_Controller Properties Class Name: CIM_Controller Parent Class: CIM_Logical Device Property Description Data Type Protocol Supported The protocol used by the controller to uint16 access c...
Page 40
CIM_Serial Controller The CIM_Serial Controller class described in Table below contains controllers that transfer data one bit at a time to the devices they control, for example, a serial port control...
