Dell Latitude 7410 Chromebook Setup Guide and Specifications Document
Summary
Setup and Specifications Guide for the Dell Latitude 7410 Chromebook (Regulatory Models P119G/P131G, April 2022). Covers initial Chromebook setup procedures, chassis overview with display, left, right, palmrest, and bottom views, multiple usage modes, and full technical specifications including processor, memory, storage, display, keyboard, touchpad, port, and battery details for this enterprise Chrome OS laptop.
Page 1 Text Content

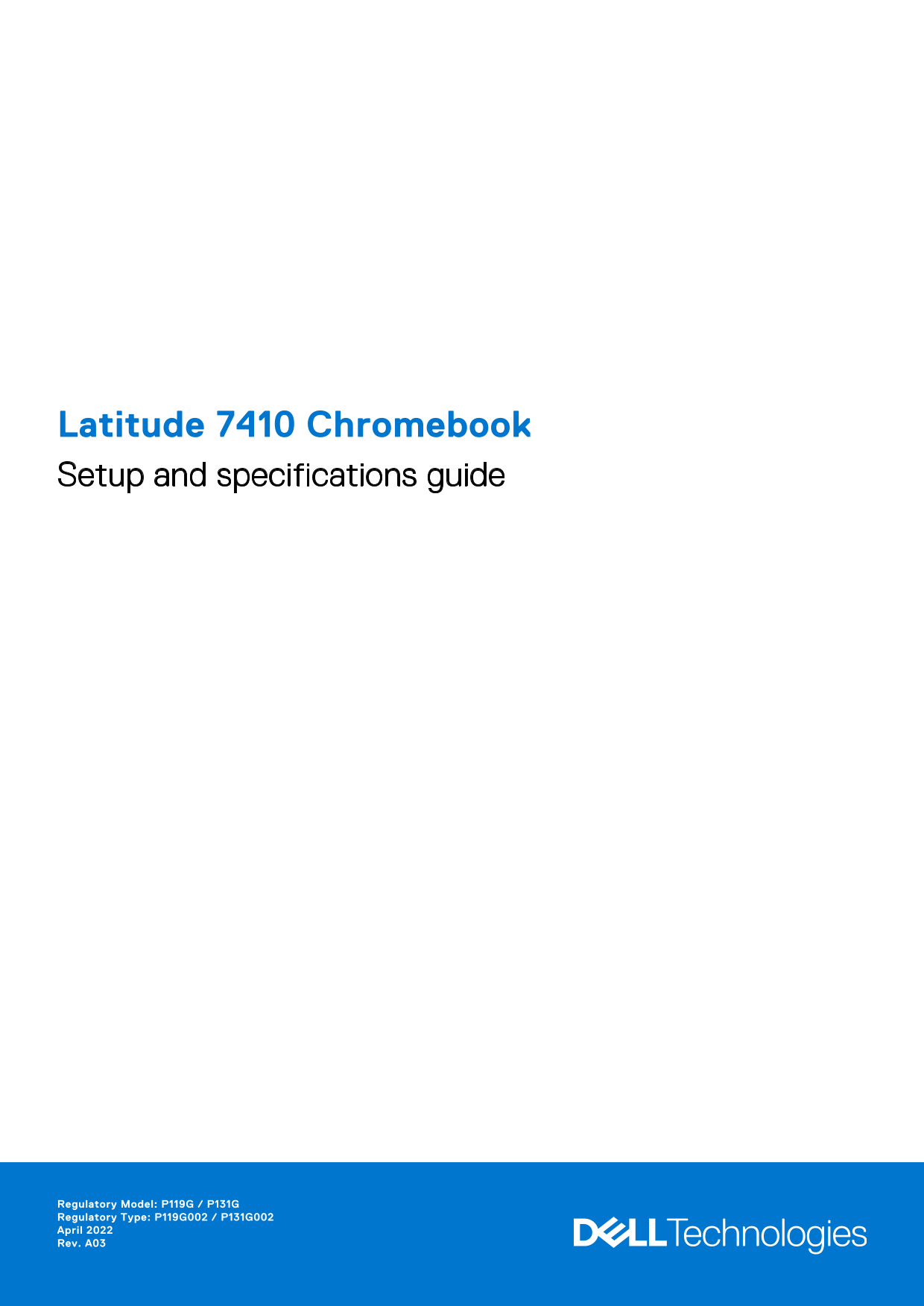

Latitude 7410 Chromebook Setup and specifications guide
Regulatory Model: P119G / P131G Regulatory Type: P119G002 / P131G002 April 2022 Rev. A03
Page Summary Contents For Dell Latitude 7410 Chromebook Setup Guide and Specifications Document
Page 1
Latitude 7410 Chromebook Setup and specifications guide Regulatory Model: P119G / P131G Regulatory Type: P119G002 / P131G002 April 2022 Rev. A03
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Set up your computer................................................................................................... Chapter 2: Chassis overview....................................
Page 4
Set up your computer Steps 1. Connect the power adapter and press the power button. NOTE: To conserve battery power, the battery might enter power saving mode. 2. Finish system setup. Follow the on-sc...
Page 5
Chassis overview Topics: Display view Left view Right view Palmrest view Bottom view Modes Display view 1. Camera 2. Camera Status Light 3. Display 4. LED indicator Off - The battery has charged fully...
Page 6
NOTE: LED indicators are also used for system diagnostics. For more information, please check the troubleshooting section in your computer’s Service Manual. Left view 1. HDMI 2.0 port 2. USB 3.2 Gen 2...
Page 7
Palmrest view 1. Left microphone 2. Privacy camera shutter 3. Right microphone 4. Power button 5. Touchpad NOTE: The system is shipped with dual-digital microphones. Chassis overview
Page 8
Bottom view 1. Air vents 2. Service tag location 3. Speakers Modes This section illustrates various usage modes of a Latitude 7410 Chromebook Laptop and 2-in-1 computer: Laptop mode NOTE: This usage m...
Page 9
2-in-1 Modes NOTE: These usage mode applies 2-in-1 configurations only. Tablet mode Chassis overview
Page 10
Stand mode Tent mode Chassis overview
Page 11
Technical specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of you...
Page 12
Chipset Table 2. Chipset Description Values Processor Intel 10th Generation Core i3 / i5 / i7 Chipset Comet Lake U V1 (15W) DRAM bus width 64-bit PCIe bus Gen 3 Operating system Your Latitude 7410 Chr...
Page 13
Ports and connectors Table 5. External ports and connectors Description Values External: USB Two USB 3.2 Gen 2 Type-C port with Display Port alt mode/Power Delivery One USB 3.2 Gen 1 Type-A port with ...
Page 14
Video Table 8. Integrated graphics specifications Integrated graphics Controller External display support Memory size Processor Intel UHD Graphics One HDMI 2.0 Shared system memory Intel 10th Generati...
Page 15
Table 11. Camera specifications (continued) Standard Border Webcam Y-6mm Description Type HD RGB camera Location Front Camera Sensor type CMOS sensor technology Resolution Still image 0.92 Video 1280 ...
Page 16
Table 13. WWAN module (continued) Feature Specifications UMTS/HSPA+: UMTS 384 kbps DL/384 kbps UL Power supply DC 3.135 V to 4.4 V, Typical 3.3 V Antenna Diversity Supported Radio On/Off Supported Wak...
Page 17
Battery Table 16. Battery specifications Description Values Type 52 Whr 68 Whr Voltage 7.6 VDC 11.40 VDC Weight (maximum) 0.257 kg (0.40 lb) 0.33 kg (0.53 lb) Dimensions: Height 251.00 mm (9.88 in.) 2...
Page 18
Table 17. Dimensions and weight (continued) Description Values Weight Notebook, CF: 1.39 kg (3.07 lb) Notebook, AL: 1.52 kg (3.36 lb) 2-in-1, AL: 1.63 kg (3.60 lb) NOTE: The weight of your notebook de...
Page 19
Table 18. Display specifications (continued) Decsription Values Power consumption (maximum) Anti-glare vs Anti-glare Anti-glare Anti-glare AR/AS Anti-glare glossy finish Touch options No Yes No Yes No...
Page 20
Software This chapter details the supported operating systems along with instructions on how to install the drivers. Topics: Operating system View system information Operating system This page contain...
Page 21
Fun games Built-in support for popular file types and external devices For more information about the Chrome OS, please visit the Chrome OS training page. Verified Boot Read Only firmware verifies the...
Page 22
Disk Partition Map There are two copies of Chrome OS on disk: an active copy and a backup copy. Each copy consists of a kernel partition and a root file system. The backup copy is updated automaticall...
Page 23
Developer and Recovery mode Table 22. Developer and Recovery mode Developer Mode Recovery Mode Used to boot without verification. Allows a user to reinstall the Chrome OS from a USB key Can be turned ...
Page 24
View system information This page contains all the information about viewing system information for the Latitude 7410 Chromebook. Latitude 7410 Chromebook does not support Dell BIOS. Hence, there are ...
Page 25
Command Chrome:net-internals Action and Purpose: View advanced networking information. Table 24. View system information Commands Action and Purpose Screenshot Chrome:net- View advanced networking int...
Page 26
Getting help Topics: Contacting Dell Contacting Dell Prerequisites NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill...
