Dell Latitude 7220 Rugged Extreme Tablet Setup Guide & Specifications Manual
Summary
Dell Latitude 7220 Rugged Extreme Tablet Setup and Specifications guide (Regulatory Model T03H, June 2022 Rev. A04). Covers initial tablet setup, chassis overview with front/left/right/back/top/bottom views, and detailed technical specifications for the ruggedized tablet designed for field and industrial use. Includes port layout, button functions, and hardware configuration details for the Windows-based rugged extreme platform.
Page 1 Text Content
Latitude 7220 Rugged Extreme Tablet Setup and Specifications
Regulatory Model: T03H Regulatory Type: T03H003 June 2022 Rev. A04
Page Summary Contents For Dell Latitude 7220 Rugged Extreme Tablet Setup Guide & Specifications Manual
Page 1

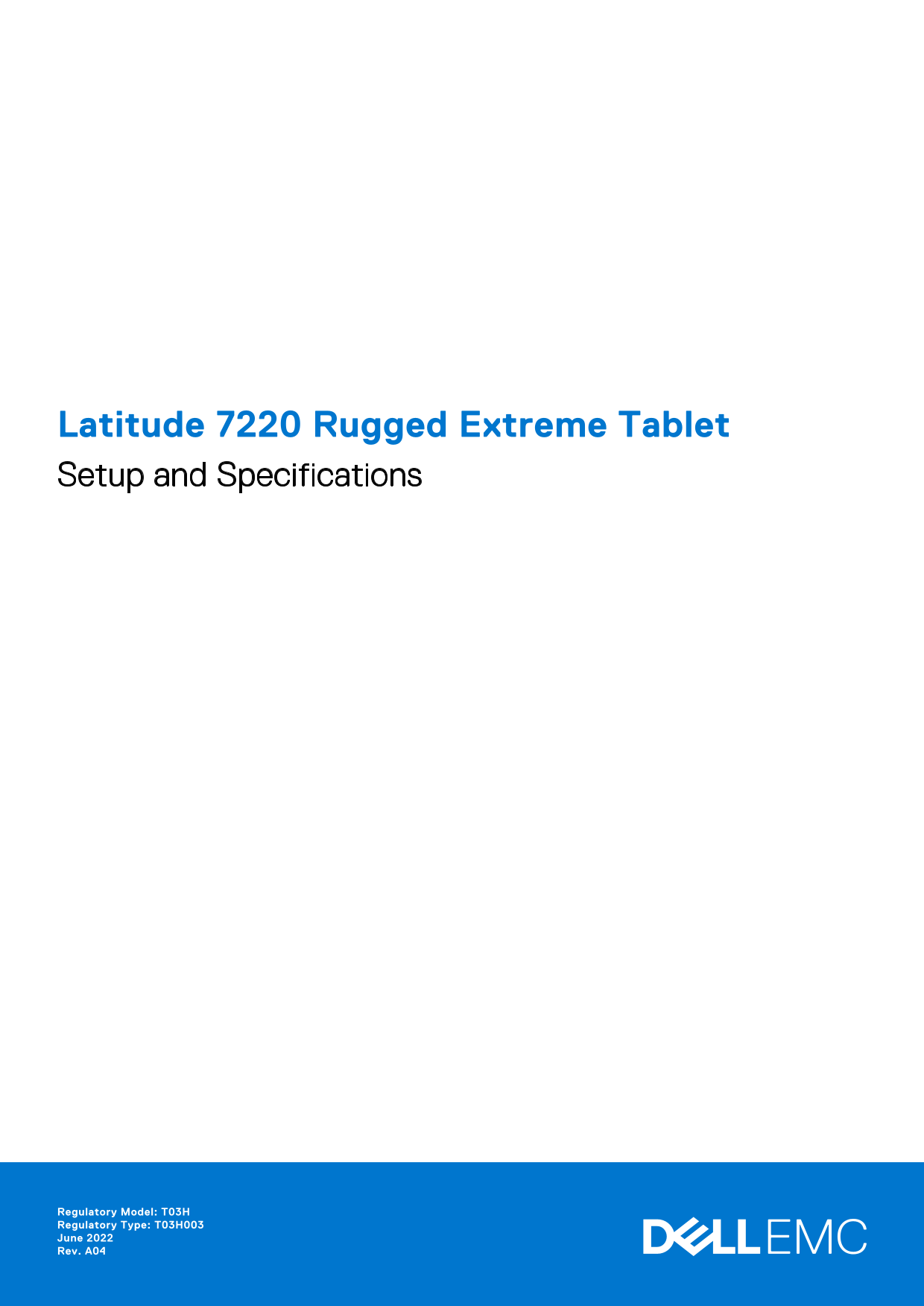

Latitude 7220 Rugged Extreme Tablet Setup and Specifications Regulatory Model: T03H Regulatory Type: T03H003 June 2022 Rev. A04
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Set up your tablet.........................................................................................................4 Chapter 2: Chassis overview...............................
Page 4
Set up your tablet Steps 1. Connect the power adapter, and press the power button. NOTE: To conserve battery power, the battery might enter power-saving mode. 2. Finish Windows system setup. Follow th...
Page 5
Table 1. Locate Dell apps Resources Description Dell Product Registration Register your computer with Dell. Dell Help & Support Access help and support for your computer. My Dell Centralized locat...
Page 6
Chassis overview Topics: Front view Left view Right view Back view Top view Bottom view Front view 1. IR emitter 2. Camera 3. Camera status light 4. Ambient light sensor 5. Display 6. User programmabl...
Page 7
8. User programmable button 1 9. Volume increase button 10. Volume decrease button 11. Brightness increase button 12. Brightness decrease button 13. Screen rotate lock button Left view 1. Microphone 2...
Page 8
Back view 1. Fingerprint reader (optional) 2. Smart card reader slot 3. Op Expansion module pogo connector 4. Service tag and Express service code label 5. LED flash 6. Rear camera 7. Rear camera shut...
Page 9
Top view 1. Accessory connection point 2. Microphone 3. Camera shutter switch 4. Stylus 5. Accessory connection point Bottom view 1. Docking/Keyboard retention alignment feature 2. Radio antennae pass...
Page 10
Technical specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of you...
Page 11
Chipset Table 3. Chipset Description Values Chipset Intel Processor Whiskey lake - 8th Gen Intel Core DRAM bus width Two channels, 64 bits Flash EPROM 32 MB PCIe bus Up to Gen 3 Operating system Your ...
Page 12
Internal slots The following table lists the internal slots of your Latitude 7220 Rugged Extreme Tablet. Table 6. Internal slots Description Values M.2 One M.2 2230 slot for solid-state drive 128 GB O...
Page 13
Table 8. Audio specifications (continued) Description Values Speaker Output Peak Video Table 9. Integrated graphics specifications Integrated graphics Controller External display support Memory size P...
Page 14
Communications Wireless module Table 11. Wireless module specifications Description Values Model number Intel Wireless-AC Intel Wi-Fi 6 AX200, Intel Wi-Fi 6 AX200, 2 DW5821E Snapdragon X20 9560, 2 x2,...
Page 15
Table 13. GPS and RF Antenna passthrough (LTE) (continued) For LTE Main Antenna Media-card reader Table 14. Media-card reader specifications Description Values Type Micro SD-card slot Cards supported ...
Page 16
Battery Table 16. Battery specifications Description Values Type 34 WHr, 2-Cell, Express Charge, user- 34 WHr (LCL) replaceable Voltage 7.6 VDC 7.6 VDC Weight (maximum) 220 g (0.48 lb) 220 g (0.48 lb)...
Page 17
Table 17. Dimensions and weight (continued) Description Values Depth with bumpers: 27.7 mm (1.09 in.) without bumpers: 24.7 mm (0.97 in.) Starting weight 1.31 kg (2.9 lb) NOTE: The weight of your tabl...
Page 18
Fingerprint reader Table 19. Fingerprint reader specifications Description Values Sensor technology Trans-capacitive sensing Sensor resolution 363 dpi Sensor area 7.42 mm x 5.95 mm Sensor pixel size 7...
Page 19
Table 22. Regulatory, Environmental Compliance and TPM (continued) Features Specifications Firmware Trusted Platform Module only (Discrete TPM Disabled) Environmental, Ergonomic, and Regulatory standa...
Page 20
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 24. Self-help resources Self-help resources R...
