Dell Latitude 3310 Setup Guide & Specifications
Summary
This setup and specifications guide for the Dell Latitude 3310 laptop covers chassis overview including front, left, right, base, and palmrest views with labeled components, keyboard shortcuts, and comprehensive hardware specifications. It details dimensions, processor options, chipset, memory, storage, ports, communications, audio, camera, touchpad, power adapter, battery, and display specifications for IT administrators and end users.
Page 1 Text Content
Dell Latitude 3310 Setup and Specifications
Regulatory Model: P95G Regulatory Type: P95G002 March 2022 Rev. A02
Page Summary Contents For Dell Latitude 3310 Setup Guide & Specifications

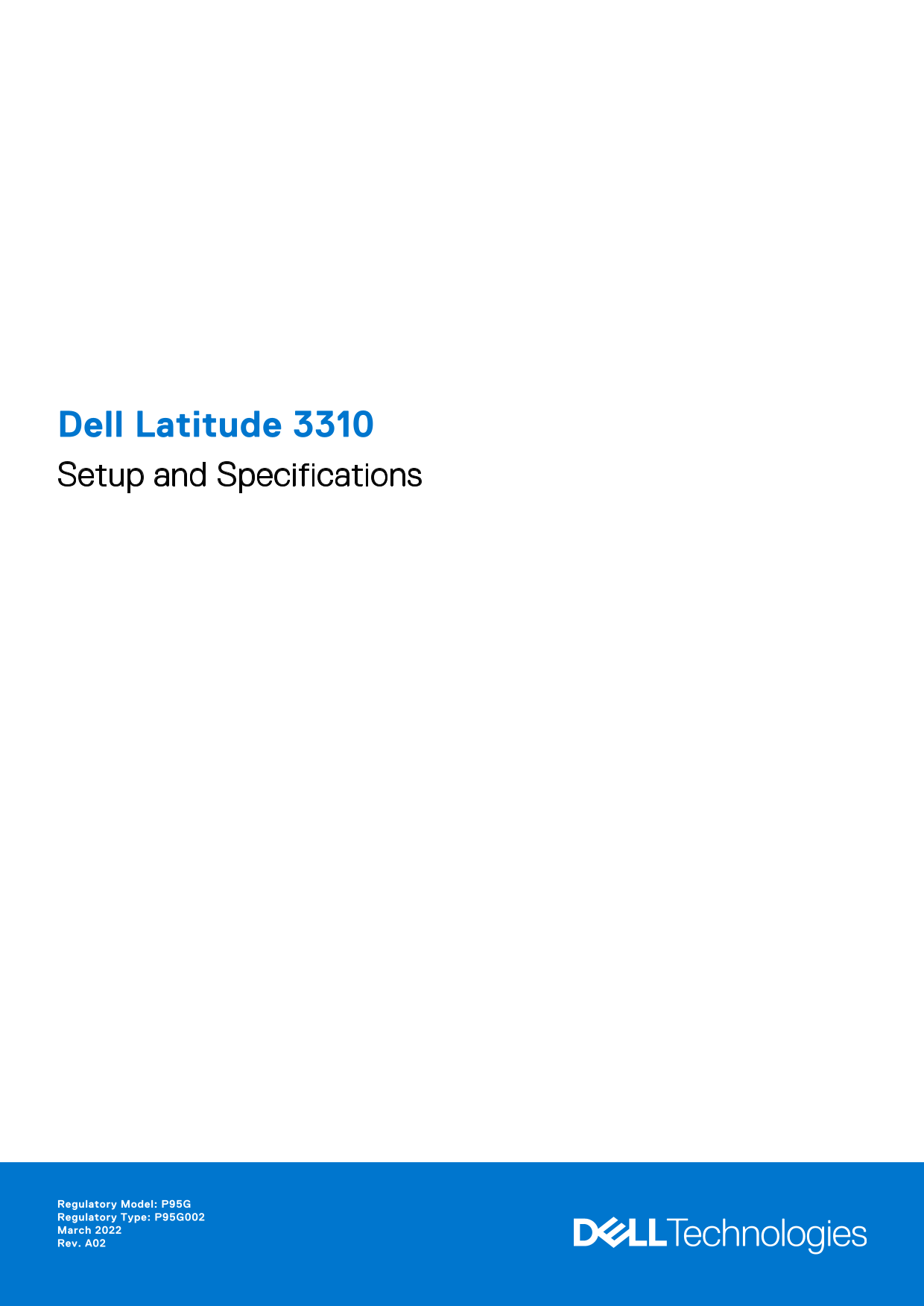

Page 1
Dell Latitude 3310 Setup and Specifications Regulatory Model: P95G Regulatory Type: P95G002 March 2022 Rev. A02
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Set up your Latitude 3310.............................................................................................4 Chapter 2: Chassis Overview....................................
Page 4
Set up your Latitude 3310 1. Connect the power adapter and press the power button. NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press the p...
Page 5
Table 1. Locate Dell apps (continued) Resources Description Support Assist Support Assist is the smart technology that keeps your computer running at its best by optimizing settings, detecting issues,...
Page 6
Chassis Overview This chapter consists of the product view features along with technical specifications. The chassis overview features calls out the different ports, connectors, and components availab...
Page 7
Left view 1. Power connector 2. USB Type-C port NOTE: Cleleron processors does not support Type-C port. 3. Network port 4. HDMI port 5. USB 3.1 port Right view 1. Audio port 2. Battery status light 3....
Page 8
Base view 1. System fan vent 2. Heatsink vent 3. SSD vent 4. Service tag 5. Speakers Chassis Overview
Page 9
Palmrest view 1. Power button 2. Keyboard 3. Touchpad Chassis Overview
Page 10
Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations. Table 2. ...
Page 11
Specifications of Latitude 3310 Topics: Dimensions and weight Processors Chipset Operating system Memory Ports and connectors Communications Audio Storage Media-card reader Keyboard Camera Touchpad Po...
Page 12
Table 4. Processors (continued) Description Values Core count Thread count Speed Up to 1.8 GHz Up to 2.3 GHz Up to 3.9 GHz Up to 3.9 GHz Cache 2 MB 2 MB 4 MB 6 MB Integrated graphics Intel UHD Graphic...
Page 13
Table 6. Memory specifications (continued) Description Values Configurations supported 4 GB DDR4 (1 x 4 GB) [2133 MHz for Intel Celeron DC/ Pentium DC, 2400 MHz for Intel Core i3/i5] 8 GB DDR4 (1 x 8 ...
Page 14
Wireless module Table 10. Wireless module specifications Description Values Model number Intel 9560 (160 MHz) Transfer rate Up to 1733 Mbps Frequency bands supported 2.4 GHz/5 GHz Wireless standards W...
Page 15
Table 12. Storage specifications Storage type Interface type Capacity One M.2 2242 e MMC SATA 64 GB One M.2 2230 Solid state drive PCle 128/256 GB Media-card reader Table 13. Media-card reader specifi...
Page 16
Table 15. Camera specifications (continued) Description Values Type RGB High Definition camera Location Front camera Sensor type CMOS sensor technology Resolution (RGB) Still image 0.92 megapixel Vide...
Page 17
Table 17. Power adapter specifications (continued) Description Values Rated output voltage 19.50 VDC Temperature range: Operating 0°C to 40°C (32°F to 104°F) Storage -40°C to 70°C (-40°F to 158°F) Bat...
Page 18
Table 18. Battery specifications (continued) Description Values LLC battery only supports the standard charge. Life span (approximate) 300 discharge/charge cycles 300 discharge/charge cycles 1000 disc...
Page 19
Video Table 20. Integrated graphics specifications Integrated graphics Controller External display support Memory size Processor Shared system memory Intel Celeron DC/ Intel UHD Grapics 610 1 x HDMI 1...
Page 20
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 22. Self-help resources Self-help resources R...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 20 |
| File Size | 976.78 KB |
| Published | July 01, 2026 |
6 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I identify my Dell computer model?
Locate the Service Tag or Express Service Code on the device, then enter it at www.dell.com/support.
What is the operating system compatibility?
The Latitude 3310 is compatible with the Dell OS Recovery Tool for Windows.
What are the dimensions and weight?
Dimensions are 335.3 mm wide, 226.6 mm deep, and 18.2 mm high. Weight ranges from 1.31 kg to 1.80 kg.
How do I contact Dell support?
Visit www.dell.com/contactdell for sales, technical support, or customer service issues.
