Dell Inspiron 5490 Setup Guide and Specifications
Summary
The Inspiron 5490 Setup and Specifications guide provides deployment information for the Inspiron 5490 laptop. It covers physical views, port locations, technical specifications, processor and memory options, storage configurations, display characteristics, and regulatory compliance details. The guide assists home users and small business owners in understanding hardware capabilities and proper setup procedures for their Inspiron 5490 systems.
Page 1 Text Content

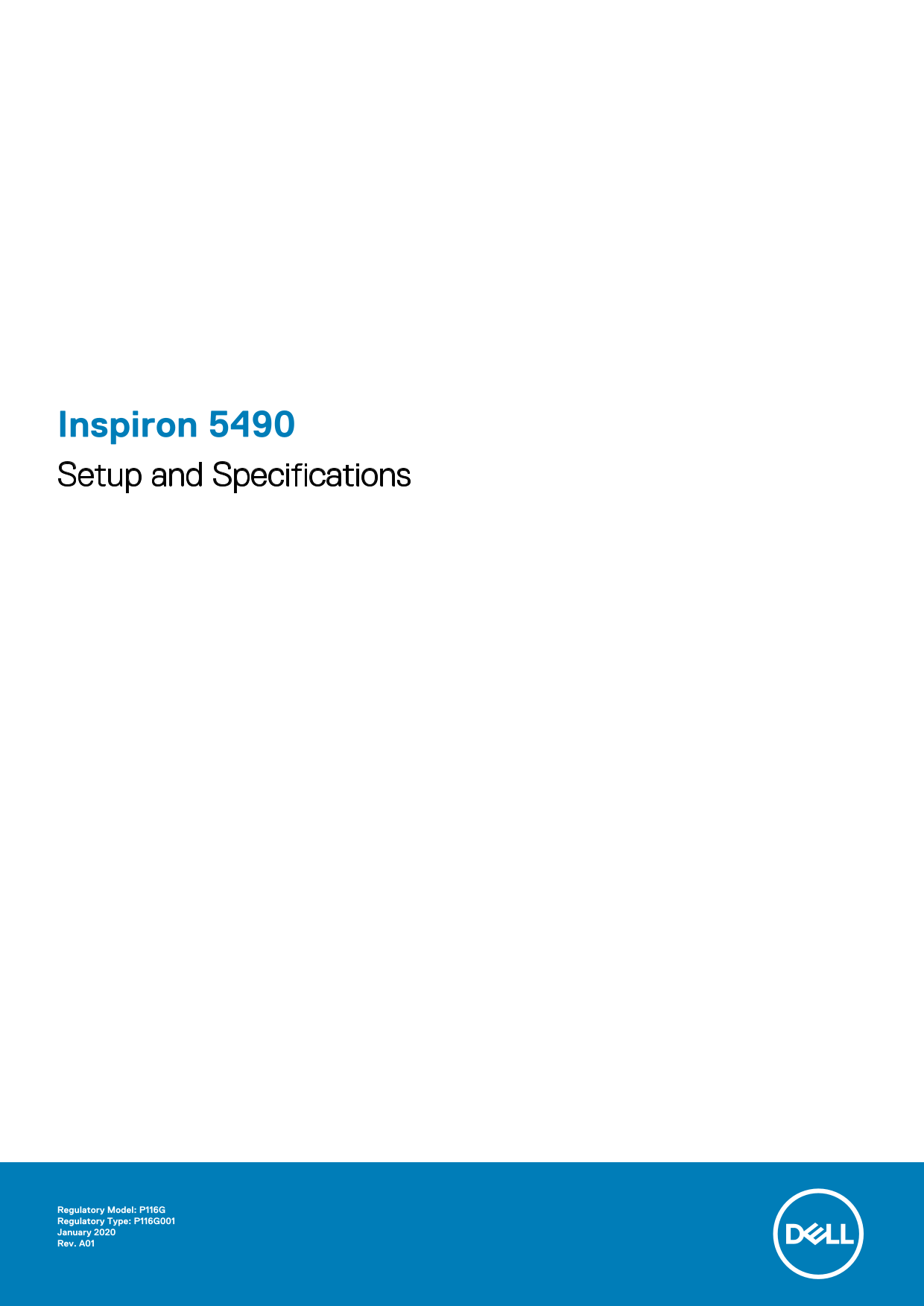

Inspiron 5490 Setup and Specifications
Regulatory Model: P116G Regulatory Type: P116G001 January 2020 Rev. A01
Page Summary Contents For Dell Inspiron 5490 Setup Guide and Specifications
Page 1
Inspiron 5490 Setup and Specifications Regulatory Model: P116G Regulatory Type: P116G001 January 2020 Rev. A01
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Set up your Inspiron 5490................................................................................................4 Chapter 2: Views of Inspiron 5490...........................
Page 4
Set up your Inspiron 5490 NOTE: The images in this document may differ from your computer depending on the configuration you ordered. 1. Connect the power adapter and press the power button. NOTE: To ...
Page 5
Table 1. Locate Dell apps in Windows 10 Home in S Mode (continued) Resources Description Dell Help & Support Access help and support for your computer. Support Assist Proactively checks the health...
Page 6
Views of Inspiron 5490 Topics: Display 1. micro SD-card slot Reads from and writes to the micro SD card. The computer supports the following card types: micro Secure Digital (SD) micro Secure Digital ...
Page 7
NOTE: A USB Type-C to Display Port adapter (sold separately) is required to connect a Display Port device. 1. Left-click area Press to left-click. 2. Touchpad Move your finger on the touchpad to move ...
Page 8
Display 1. Left microphone Provides digital sound input for audio recording and voice calls. 2. Camera Enables you to video chat, capture photos, and record videos. 3. Camera-status light Turns on whe...
Page 9
Provides audio output. 2. Right speaker Provides audio output. 3. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware c...
Page 10
Specifications of Inspiron 5490 Topics: Dimensions and weight Processors Chipset Operating system Memory Ports and connectors Communications Audio Storage Intel Optane memory with solid-state storage ...
Page 11
Processors Table 4. Processors Description Values Processors 10th Generation Intel Core 10th Generation Intel Core 10th Generation Intel Core i3-10110U i5-10210U i7-10510U Wattage Core count Thread co...
Page 12
Table 6. Memory specifications (continued) Description Values Maximum memory 16 GB NOTE: In computers shipped with 4 GB on-board memory, the maximum memory configuration is 20 GB (4 GB on-board + 1 x ...
Page 13
Communications Wireless module Table 9. Wireless module specifications Description Values Model number Intel 9462NGW Intel 9560NGW Transfer rate Up to 433 Mbps Up to 867 Mbps Frequency bands supported...
Page 14
Storage Your computer supports one of the following configurations: One M.2 2230/2242/2280 solid-state drive One M.2 2280 Intel Optane memory with solid-state storage The primary drive of your compute...
Page 15
Table 13. Media-card reader specifications (continued) Description Values Micro Secure Digital High Capacity (m SDHC) Micro Secure Digital Extended Capacity (m SDXC) Keyboard Table 14. Keyboard specif...
Page 16
Touchpad Table 16. Touchpad specifications Description Values Resolution: Horizontal Vertical Dimensions: Horizontal 105 mm (4.13 in.) Vertical 65 mm (2.56 in.) Touchpad gestures For more information ...
Page 17
Table 18. Battery specifications (continued) Description Values Weight (maximum) 0.23 kg (0.51 lb) Dimensions: Height 67.65 mm (2.66 in.) Width 241.25 mm (9.50 in.) Depth 7.05 mm (0.28 in.) Temperatur...
Page 18
Table 19. Display specifications (continued) Description Values Contrast ratio (min) Response time (max) 35 ms Refresh rate 60 Hz Horizontal view angle Vertical view angle Pixel pitch 0.16 mm Power co...
Page 19
Table 23. Computer environment Description Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) -40°C to 65°C (-40°F to 149°F) Relative humidity (maximum) 10% to 90% (non-condensing) 0% to 9...
Page 20
Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Some keys on your ...
Page 21
Table 24. List of keyboard shortcuts (continued) Function key Redefined key (for multimedia control) Behavior Switch to external display Print Screen The Fn key is also used with selected keys on the ...
Page 22
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 26. Self-help resources Self-help resources R...
Page 23
NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog. Getting help and contacting Dell
