Dell Inspiron 3662 Setup Guide and Specifications
Summary
Inspiron 3662 Desktop Setup and Specifications. Covers desktop computer setup, front and back panel views, back panel connectors, and comprehensive technical specifications including memory, ports, communications, audio, and storage options. Target users: Inspiron 3662 desktop owners and home users.
Page 1 Text Content
Inspiron 3662 Setup and Specifications
Computer Model: Inspiron 3662 Regulatory Model: D20M Regulatory Type: D20M002
Page Summary Contents For Dell Inspiron 3662 Setup Guide and Specifications

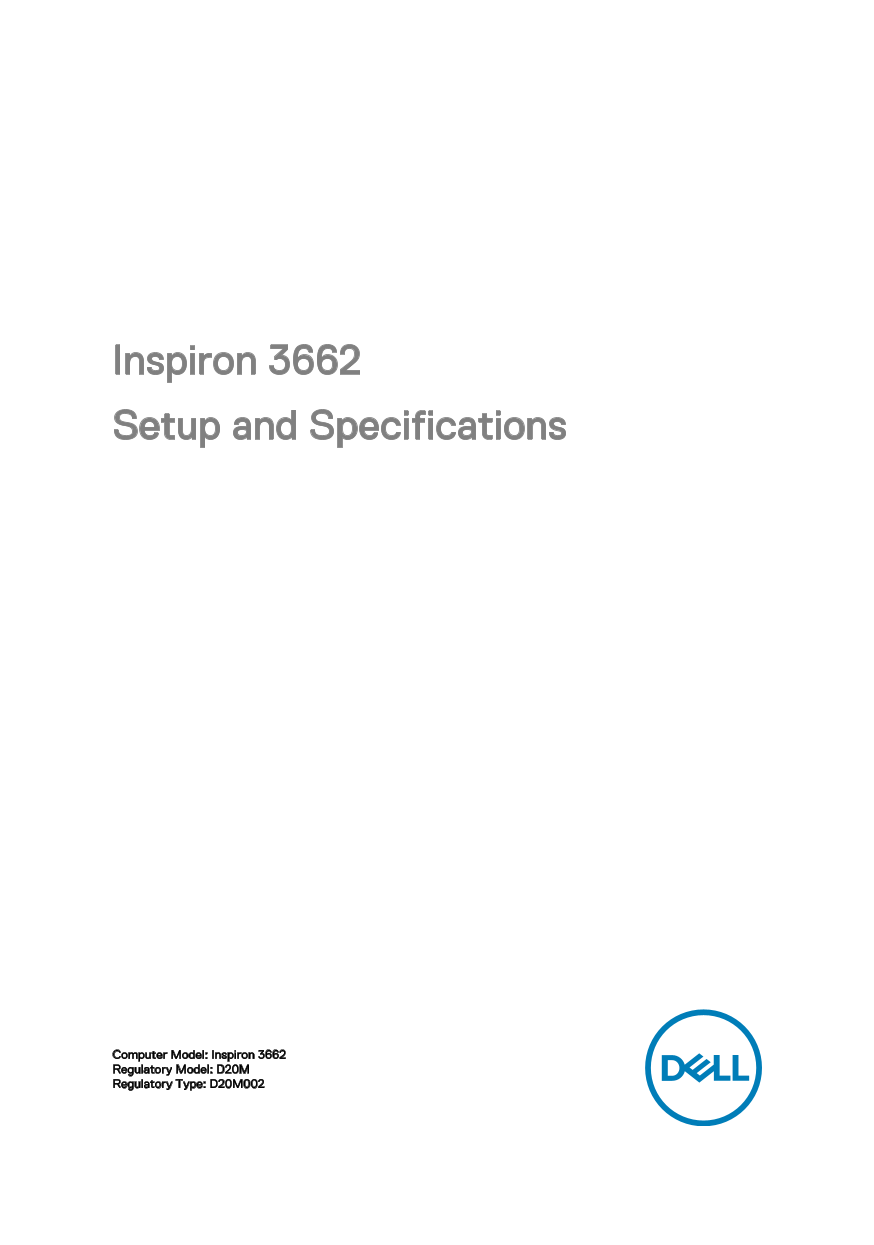

Page 1
Inspiron 3662 Setup and Specifications Computer Model: Inspiron 3662 Regulatory Model: D20M Regulatory Type: D20M002
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Set up your computer.................................................... Views.............................................................................9 Front................................
Page 4
Set up your computer 1 Connect the keyboard and mouse. See the documentation that shipped with the keyboard and mouse. 2 Connect the network cable—optional.
Page 5
3 Connect the display. 4 Connect the power cable.
Page 6
5 Press the power button.
Page 7
6 Finish operating system setup. For Windows: a) Connect to your network. NOTE: If you are connecting to a secured wireless network, enter the password for the wireless network access when prompted. b...
Page 8
7 Locate Dell apps in Windows. Table 1. Locate Dell apps Register your computer Dell Help & Support Support Assist — Check and update your computer
Page 9
Views Power button Press to turn on the computer if it is turned off, in sleep state, or in hibernate state. Press to put the computer in sleep state if it is turned on. Press and hold for 4 seconds t...
Page 10
Turns on when the computer reads from or writes to the hard drive. Media-card reader Reads from and writes to media cards. Headset port Connect a headphone or a headset (headphone and microphone combo...
Page 11
Back panel Connect USB, audio, video, and other devices. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components...
Page 12
Line-in port Connect recording or playback devices such as CD player. Line-out port Connect speakers. Microphone port Connect an external microphone to provide sound input. VGA port Connect an externa...
Page 13
Specifications Dimensions and weight Table 2. Dimensions and weight Height 352.90 mm (13.90 in) Width 154 mm (6.06 in) Depth 303 mm (11.93 in) Weight 4.30 kg (9.48 lb) NOTE: The weight of your compute...
Page 14
Ports and connectors Table 5. Ports and connectors External: Network One RJ45 port USB Four USB 2.0 ports Two USB 3.0 ports Audio/Video One headset port One microphone port One line-out port One line-...
Page 15
Communications Table 7. Supported Communications Ethernet 10/100 Mbps Ethernet controller integrated on system board Wireless Wi-Fi 802.11ac/n Bluetooth 4.0 Audio Table 8. Audio specifications Control...
Page 16
Input Voltage 100 VAC to 240 VAC Input frequency 50 Hz to 60 Hz Rated output voltage 19.50 VDC Temperature range: Operating 0°C to 40°C (32°F to 104°F) Temperature range: Storage –40°C to 70°C (–40°F ...
Page 17
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 13. Self-help resources Information about Del...
Page 18
NOTE: Availability varies by country and product, and some services may not be available in your country. NOTE: If you do not have an active internet connection, you can find contact information on yo...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 18 |
| File Size | 970.16 KB |
| Published | June 25, 2026 |
2 views
Enter the captcha to get the download link:
Frequently Asked Questions
How do I start the computer?
Press the power button located on the front panel of the unit.
What is a Service Tag's purpose?
It is a unique identifier that enables Dell service technicians to identify hardware and access warranty information.
Can I use headphones or a headset with this model?
Yes, connect them using the dedicated headphone/headset port on the front panel.
What are the recommended environmental conditions?
The temperature range is 10°C to 35°C; humidity must be between 20% and 80% (non-condensing).
How do I connect peripherals like a printer or storage device?
Use one of the two USB 2.0 ports on the front panel.
