Page 1

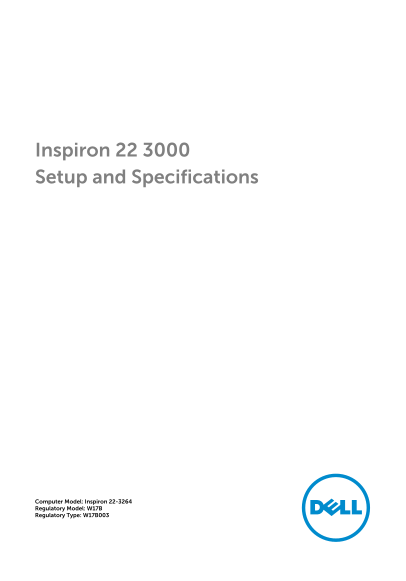

Inspiron 22 3000 Setup and Specifications Computer Model: Inspiron 22-3264 Regulatory Model: W17B Regulatory Type: W17B003
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents Set up your computer.................................................................4 Views.............................................................................................. Fron...
Page 4
Set up your computer 1 Set up the stand. Pedestal stand Easel stand 2 Set up the keyboard and mouse. See the documentation that shipped with the keyboard and mouse.
Page 5
3 Connect the power adapter. Pedestal stand Easel stand
Page 6
4 Press the power button.
Page 7
5 Finish operating system setup. For Windows: a) Enable Dell updates. b) Connect to your network. c) Sign-in to your Microsoft account or create a local account. For Ubuntu: Follow the instructions on...
Page 8
6 Explore Dell resources on your desktop. Register your computer Dell Help & Support Support Assist — Check and update your computer
Page 9
Views Microphone (for touch-screen model only) Provides high‑quality digital sound input for audio recording, voice calls, and so on. Camera Allows you to video chat, capture photos, and record videos...
Page 10
Media-card reader Reads from and writes to media cards. USB 3.0 ports (2) Connect peripherals such as storage devices, printers, and so on. Provides data transfer speeds up to 5 Gbps. Headset port Con...
Page 11
Optical drive (optional) Reads from and writes to CDs and DVDs. Brightness increase buttons (2) Press to increase or decrease the brightness of the screen. Screen off/on button Press and hold to turn-...
Page 12
Audio-out port Connect audio-output devices such as speakers, amplifiers, and so on. USB 2.0 ports (2) Connect peripherals such as storage devices, printers, and so on. Provides data transfer speeds u...
Page 13
Specifications Dimensions and weight Height Easel stand – 349.55 mm (13.76 in) Pedestal stand — 402.54 mm (15.85 in) Width 526.20 mm (20.72 in) Depth With easel stand With pedestal Without stand stand...
Page 14
Memory Slots Two SODIMM slots Type DDR4 Speed Up to 2133 MHz Configurations supported 2GB, 4GB, 6GB, 8GB, 10GB, 12GB and 16GB Ports and connectors External: Network One RJ45 port USB Two USB 2.0 ports...
Page 15
Video Integrated Discrete Controller Integrated in processor Nvidia Ge Force 920M Memory Shared system memory 2 GB GDDR5 Audio Controller Realtek ALC3661 Waves Maxx Audio Pro Speakers Two Speaker Outp...
Page 16
Display Type 21.5-in FHD+ touch screen 21.5-in FHD+ non-touch screen Resolution (maximum) 1920 x 1080 Pixel pitch 0.2479 mm x 0.2479 mm Height 292.2 mm (11.50 in) Width 497.6 mm (19.60 in) Diagonal 54...
Page 17
Power adapter Type 65W 90W Input Voltage 100 VAC to 240 VAC Input frequency 50 Hz to 60 Hz Input current (maximum) 1.70A 2.50A Output current (continuous) 3.34A 4.62A Rated output voltage 19.50 VDC Te...
Page 18
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Information about Dell products and www.dell.com se...
Page 19
NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
