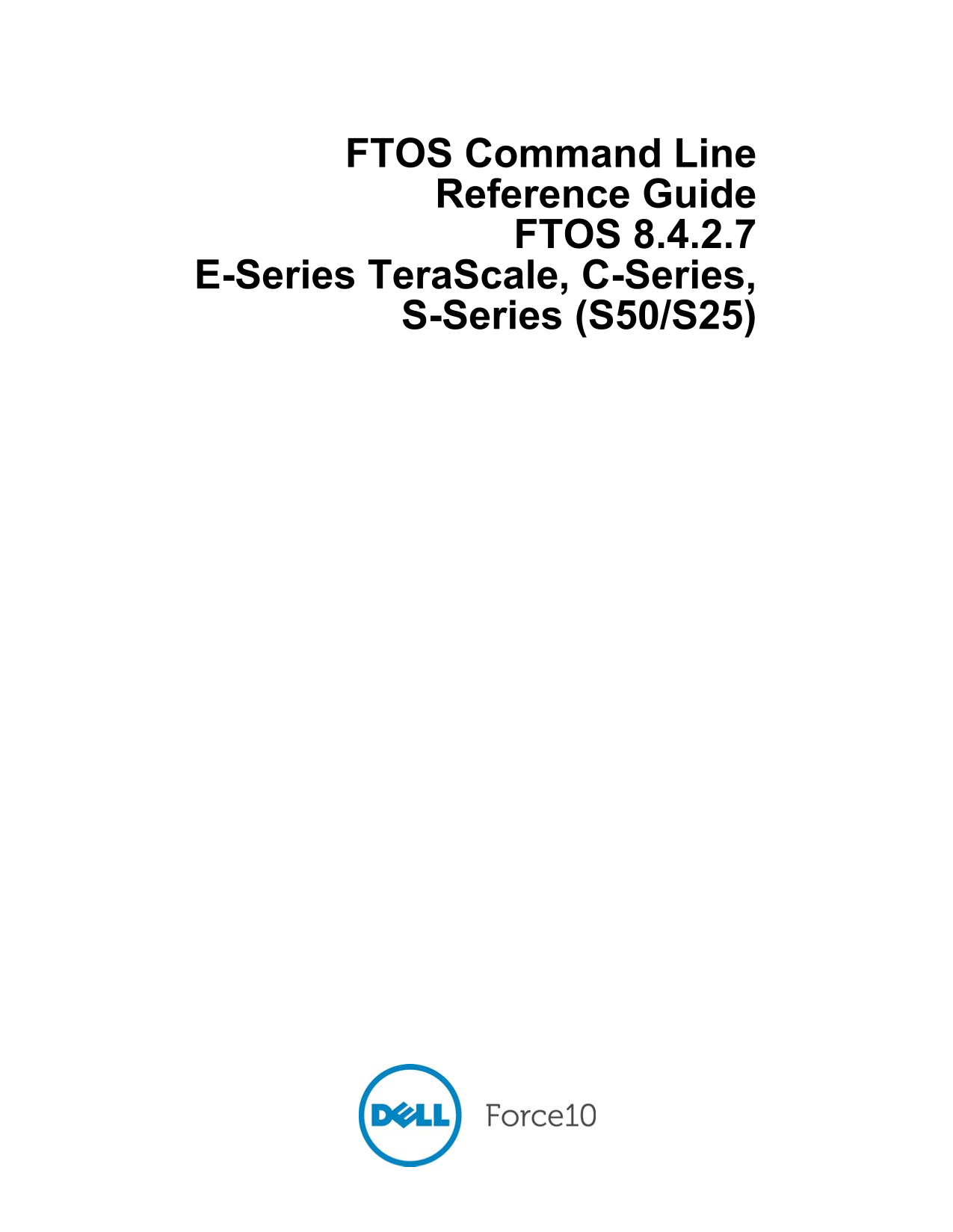

FTOS Command Line Reference Guide
FTOS 8.4.2.7
E-Series Tera Scale, C-Series,
S-Series (S50/S25)
Page Summary Contents For Dell FTOS 8.4.2.7 Command Line Reference Guide for E-Series TeraScale, C-Series, S-Series (S50, S25) Owner's Manual
Page 1
FTOS Command Line Reference Guide FTOS 8.4.2.7 E-Series Tera Scale, C-Series, S-Series (S50/S25)
Page 2
Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates potential damage to hardware or loss of data if...
Page 3
Preface About this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . ...
Page 4
.d ll .c rt .d ll .c Upgrading the C-Series FPGA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 BOOT_USER Mode Overview . . . . . . . . . . . . . . . . . . ....
Page 5
Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .301 Border Gateway Protocol IPv4 (BGPv4) Overview . . . . . . . . . . . . . ...
Page 6
.d ll .c rt .d ll .c GARP VLAN Registration (GVRP) Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .525 Commands . . . . ...
Page 7
IPv6 Border Gateway Protocol (IPv6 BGP) Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .733 IPv6 BGP Commands . . . . . ...
Page 8
.d ll .c rt .d ll .c Neighbor Discovery Protocol (NDP) Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .977 Commands . . ...
Page 9
Important Points to Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1142 Private VLAN (PVLAN) Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....
Page 10
.d ll .c rt .d ll .c SSH Server and SCP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1310 Trace List Commands . . . . . . . . . . . . . . . . . . . . . . . ....
Page 11
Uplink Failure Detection (UFD) Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1445 Commands . . . . . . . . . . . . . . ....
Page 12
.d ll .c rt .d ll .c S-Series Debugging and Diagnostics Offline Diagnostic Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1575 Important Points to Rememb...
Page 13
Preface About this Guide This book provides information on the FTOS Command Line Interface (CLI). It includes some information on the protocols and features found in FTOS and on the Dell Force10 syste...
Page 14
.d ll .c rt .d ll .c {X} Keywords and parameters within braces must be entered in the CLI. [X] Keywords and parameters within brackets are optional. x | y Keywords and parameters separated by bar requ...
Page 15
CLI Basics This chapter describes the command structure and command modes. FTOS commands are in a text-based interface that allows you to use launch commands, change the command modes, and configure i...
Page 16
.d ll .c rt .d ll .c Multiple Configuration Users When a user enters the CONFIGURATION mode and another user(s) is already in that configuration mode, generates an alert warning message similar to the...
Page 17
Table 2-1. Command Prompt and Corresponding Command Mode Prompt CLI Command Mode FTOS(conf-if)#12 INTERFACE FTOS(conf-if-gi-0/0)# FTOS(conf-if-te-0/0)# FTOS(conf-if-lo-0)# FTOS(conf-if-nu-0)# FTOS(con...
Page 18
.d ll .c rt .d ll .c Type a keyword followed by a space and a ? Type a partial keyword followed by a ? A display of keywords beginning with the partial keyword is listed. Figure 2-3 illustrates the re...
Page 19
Use the left and right arrow keys to navigate left or right in the FTOS command line. Table 2-2 defines the key combinations valid at the FTOS command line. Table 2-2. Short-cut Keys and their Actions...
Page 20
.d ll .c rt .d ll .c except— display only text that does not match the pattern (or regular expression) find — search for the first occurrence of a pattern grep — display text that matches a pattern no...
Page 21
EXEC Mode When you initially log in to the switch, by default, you are logged into the EXEC mode. This mode allows you to view settings and to enter the EXEC Privilege mode to configure the device. Wh...
Page 22
.d ll .c rt .d ll .c Table 2-3. Interface prompts Prompt Interface Type FTOS(conf-if-nu-0)# Null Interface followed by zero FTOS(conf-if-po-0)# Port-channel interface number FTOS(conf-if-vl-0)# VLAN I...
Page 23
IP ACCESS LIST Mode While in the CONFIGURATION mode, use the ip access-list standard or ip access-list extended command to enter the IP ACCESS LIST mode and configure either standard or extended acces...
Page 24
.d ll .c rt .d ll .c IP COMMUNITY LIST Mode Use the IP COMMUNITY LIST mode to configure an IP Community ACL on the E-Series. See Chapter 9, Access Control Lists (ACL). To enter IP COMMUNITY LIST mode:...
Page 25
RAPID SPANNING TREE Mode Use PVST+ mode to enable and configure the RSTP protocol, as described in Chapter 50, Rapid Spanning Tree Protocol (RSTP). To enter RSTP mode: 1. Verify that you are logged in...
Page 26
.d ll .c rt .d ll .c ROUTER RIP Mode Use the ROUTER RIP mode to configure RIP on the C-Series or E-Series, as described in Chapter 48, Router Information Protocol (RIP). To enter ROUTER RIP mode: 1. V...
Page 27
File Management Overview This chapter contains commands needed to manage the configuration files and includes other file management commands found in FTOS. This chapter contains these sections: Basic ...
Page 28
.d ll .c rt .d ll .c show file-systems show linecard show os-version show running-config show startup-config show version upgrade (E-Series version) upgrade (C-Series version) upgrade (S-Series manage...
Page 29
Output for show bootvar with no boot configuration configured FTOS#show bootvar PRIMARY IMAGE FILE = flash://FTOS-EF-8.2.1.0.bin SECONDARY IMAGE FILE = flash://FTOS-EF-7.6.1.0.bin DEFAULT IMAGE FILE =...
Page 30
.d ll .c rt .d ll .c Related show bootvar Display the variable settings for the E-Series boot parameters. Commands boot network c e Set the location of the configuration file in a remote network. Synt...
Page 31
secondary After entering rpm0 or rpm1, enter the keyword secondary to configure boot parameters used if the primary operating system boot selection is not available. file-url To boot from a file: on t...
Page 32
.d ll .c rt .d ll .c Parameters directory (OPTONAL) Enter one of the following: flash: (internal Flash) or any sub-directory slot0: (external Flash) or any sub-directory (C-Series and E-Series only) C...
Page 33
Parameters file-url Enter the following location keywords and information: To copy a file from the internal FLASH, enter flash:// followed by the filename. To copy a file on an FTP server, enter ftp:/...
Page 34
.d ll .c rt .d ll .c copy running-config ftp: Command Example: copy running-config scp: FTOS#copy running-config scp:/ Address or name of remote host []: 10.10.10.1 Destination file name [startup-conf...
Page 35
Usage In this streamline copy command, the source image is copied to the primary RPM and then, if Information specified, to the standby RPM. After the copy is complete, the new image file path on each...
Page 36
.d ll .c rt .d ll .c c e s Display the files in a file system. The default is the current directory. Syntax dir [filename | directory name:] Parameters filename | directory name: (OPTIONAL) Enter one ...
Page 37
download alt-full-image Download an alternate FTOS image to the chassis. Syntax download alt-full-image file-url Command Modes EXEC Privilege Command Version 7.7.1.0 Removed form E-Series History Vers...
Page 38
.d ll .c rt .d ll .c dos Fs1.0 Enter the keyword dos Fs1.0 to format in DOS 1.0 (the default) dos Fs2.0 Enter the keyword dos Fs2.0 to format in DOS 2.0 Default DOS 1.0 (dos Fs1.0) Command Modes EXEC ...
Page 39
Related copy Copy the current configuration to either the startup-configuration file or the Commands terminal. show file Display contents of a text file in the local filesystem. show file-systems Disp...
Page 40
.d ll .c rt .d ll .c type Enter the password type: Enter 0 to enter an unencrypted password. Enter 7 to enter a password that has already been encrypted using a Type 7 hashing algorithm. password Ente...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1,640 |
| File Size | 7.24 MB |
| Published | June 28, 2026 |
6 views
