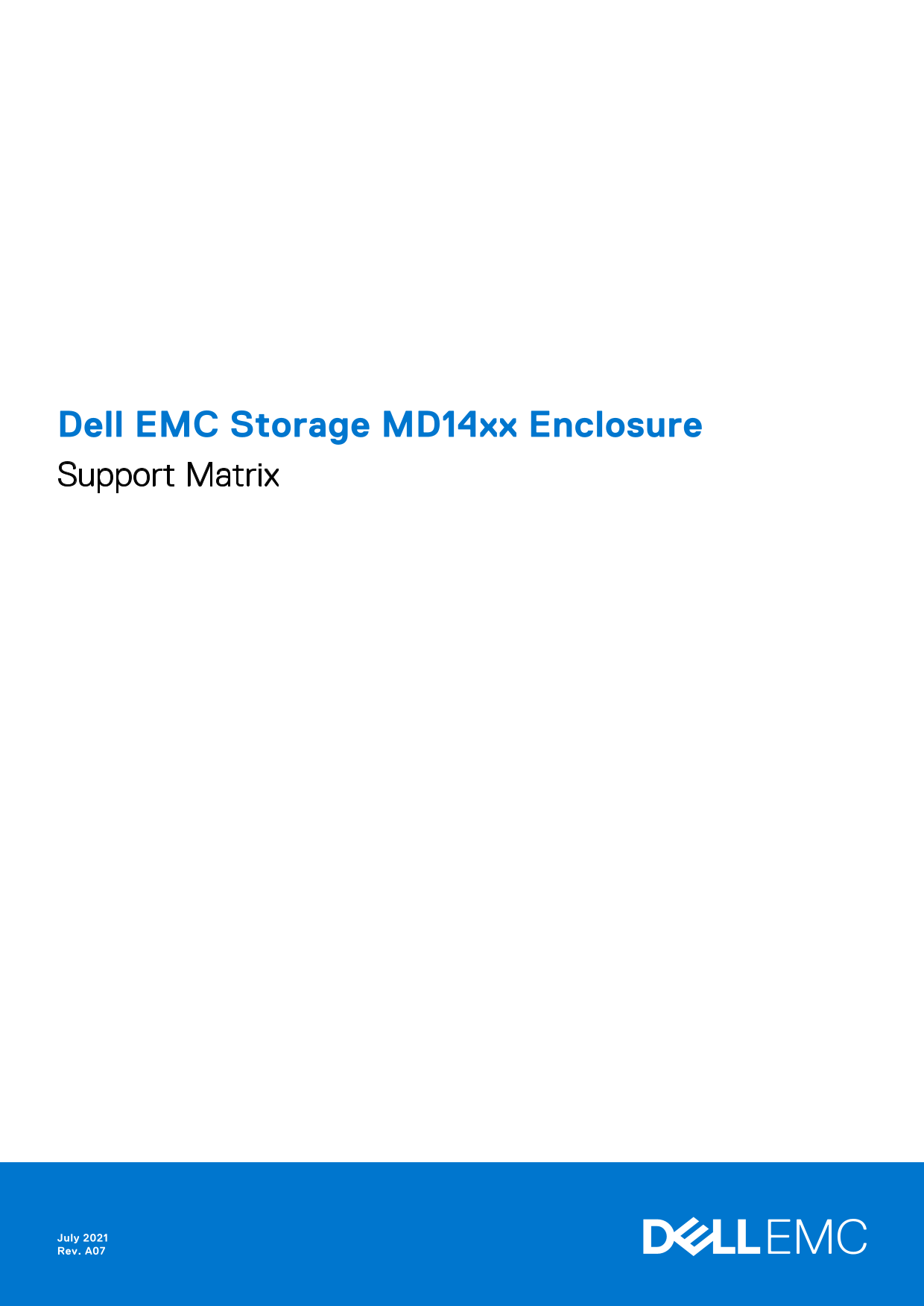

Dell EMC Storage MD14xx Enclosure Support Matrix
July 2021 Rev. A07
Page Summary Contents For Dell EMC Storage MD14xx Enclosure Support Matrix
Page 1
Dell EMC Storage MD14xx Enclosure Support Matrix July 2021 Rev. A07
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Introduction................................................................................................................. Revision history.........................................
Page 4
Introduction When you use an enclosure for server expansion, and connect the enclosure to servers or other enclosures, it is known as a storage enclosure. This document provides information about supp...
Page 5
Table 2. Documentation resources (continued) Title Location MD1420 Enclosures Hardware Owner’s Manual https://www.dell.com/support/home/product-support/ product/storage-md1420/docs MD1400 and MD1420 E...
Page 6
Storage enclosure rules This section provides information about the rules for MD1400 and MD1420 enclosures. Table 3. MD1400 and MD1420 enclosure rules Components MD1400 MD1420 Maximum number of server...
Page 7
Storage enclosure firmware versions This section provides information about firmware versions for MD1400 and MD1420 enclosure firmware. MD1400 and MD1420 storage enclosures have two Enclosure Manageme...
Page 8
Supported adapters and controllers This section lists the adapters and controllers that have been tested for use with MD1400 and MD1420 storage enclosures. The MD1400 and MD1420 storage enclosures sup...
Page 9
Supported drives This section provides information about the drives that MD1400 and MD1420 enclosures support. For information about latest available drive firmware for MD1400 and MD1420 enclosures, s...
Page 10
Table 5. MD1400 and MD1420 supported drives (continued) Part Form Model Capacity Speed Sector Vendor Firmware SED Number Factor 4YPVD 2.5" WUSTR1596ASS200 960 GB SSD 512e HGST K960 No 5ND33 2.5&q...
Page 11
Table 5. MD1400 and MD1420 supported drives (continued) Part Form Model Capacity Speed Sector Vendor Firmware SED Number Factor 5H9RV 2.5" MZILT3T8HALS0D3 3.2 TB SSD 512e Samsung DWF8 No R1ND2 2....
Page 12
Table 5. MD1400 and MD1420 supported drives (continued) Part Form Model Capacity Speed Sector Vendor Firmware SED Number Factor YYC10 2.5" PX04SVB096 960 GB SSD 512n Toshiba AM07 No 4XC39 2.5&quo...
Page 13
Table 5. MD1400 and MD1420 supported drives (continued) Part Form Model Capacity Speed Sector Vendor Firmware SED Number Factor N85XX 2.5" KPM5XRUG3T84 3.84 TB SSD 512e Toshiba B01C No GT7GT 2.5&...
Page 14
Table 5. MD1400 and MD1420 supported drives (continued) Part Form Model Capacity Speed Sector Vendor Firmware SED Number Factor RDKH0 2.5" HUC101830CSS204 300 GB 10K 512n HGST FJ40 No P6GJX 2.5&q...
Page 15
Table 5. MD1400 and MD1420 supported drives (continued) Part Form Model Capacity Speed Sector Vendor Firmware SED Number Factor V2KWT 2.5" ST1200MM0108 1.2 TB 10K 512n Seagate TSC9 Yes WHR0G 2.5&...
Page 16
Table 5. MD1400 and MD1420 supported drives (continued) Part Form Model Capacity Speed Sector Vendor Firmware SED Number Factor 5TFDD 2.5" AL13SEB600 600 GB 10K 512n Toshiba DE11 No GP3FR 2.5&quo...
Page 17
Table 5. MD1400 and MD1420 supported drives (continued) Part Form Model Capacity Speed Sector Vendor Firmware SED Number Factor 44YFV 3.5" HUS728T8TAL5200 8 TB 7.2K 512n HGST RS06 No 05WTN 3.5&qu...
Page 18
Table 5. MD1400 and MD1420 supported drives (continued) Part Form Model Capacity Speed Sector Vendor Firmware SED Number Factor K6646 3.5" ST8000NM015A 8 TB 7.2K 4Kn Seagate CSN9 No H3PN0 3.5&quo...
Page 19
Table 5. MD1400 and MD1420 supported drives (continued) Part Form Model Capacity Speed Sector Vendor Firmware SED Number Factor 440RW 3.5" WD1001FYYG 1 TB 7.2K 512n WD D1R7 No 37MGT 3.5" WD2...
Page 20
Supported I/O cables Only the following I/O cables are supported for use with MD1400 and MD1420 enclosures: Table 6. MD1400 and MD1420 supported I/O cables Part Number Interface Speed Length Descripti...
Page 21
Supported cabling configurations You can cable MD1400 or MD1420 enclosures to host systems and to more storage enclosures in three different configurations: Single-port configuration Redundant configu...
Page 22
Single-port configuration Single-port configuration supports up to four enclosures. The enclosures are daisy-chained with one of the enclosures connected to a single port on the controller card. Figur...
Page 23
Redundant configuration In Redundant configuration, the enclosures are daisy-chained with one of the enclosures connected to both the ports on the controller card. Figure 2. Redundant configuration Su...
Page 24
Multi-chain configuration Multi-chain configuration supports up to eight enclosures. The first four enclosures are daisy-chained with one of the enclosures connected to a single port on the controller...
Page 25
Dell EMC Storage Support Policy Level 1: Full Contractual Support For tested devices listed in this Support Matrix, (and for the specific version listed), Dell EMC will provide solution support, under...
