Dell E2222HS Outline Dimension Guide
Summary
Technical drawing showing the outline dimensions of the Dell E2222HS monitor, including measurements in millimeters and inches for width, height, depth, tilt angles, and VESA mounting specifications. Target users include installation technicians and system integrators who need precise physical measurements for rack or desk mounting configurations.
Page 1 Text Content
Unit :mm(inch)
Dimension :Nominal

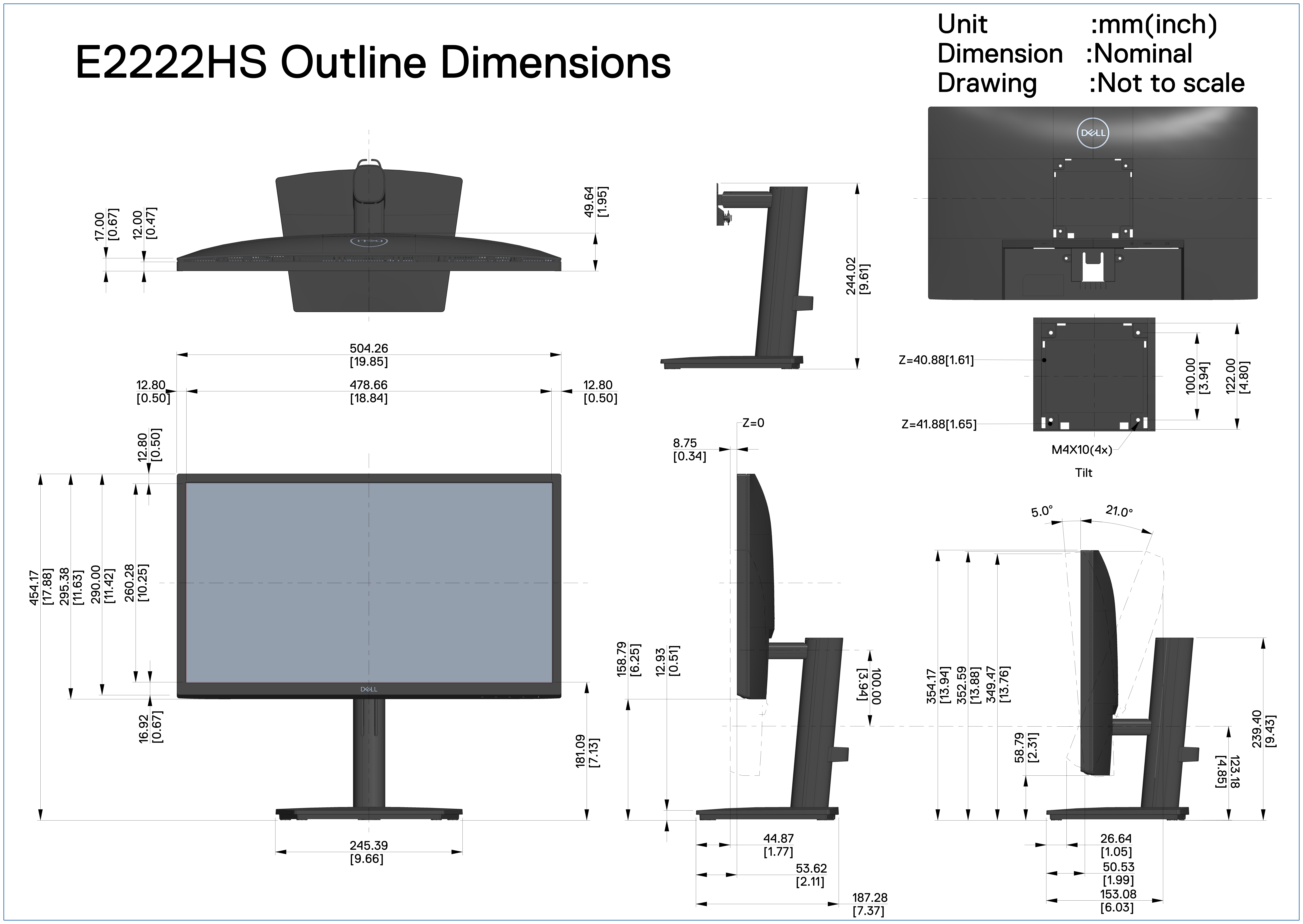

E2222HS Outline Dimensions
Drawing :Not to scale
Page Summary Contents For Dell E2222HS Outline Dimension Guide
Page 1
Unit :mm(inch) Dimension :Nominal E2222HS Outline Dimensions Drawing :Not to scale
