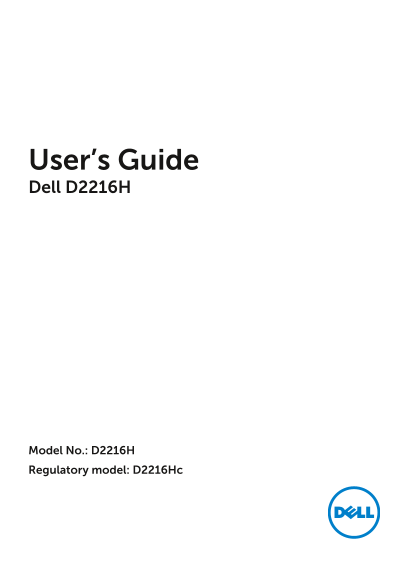

User’s Guide Dell D2216H
Model No.: D2216H Regulatory model: D2216Hc
Page Summary Contents For Dell D2216H Monitor User' s Guide
Page 1
User’s Guide Dell D2216H Model No.: D2216H Regulatory model: D2216Hc
Page 2
TABLE OF CONTENT FOR YOUR SAFETY ��������������������������������������������������������������������������������������������������������������3 PRECAUTIONS �������������������������������������������...
Page 3
FOR YOUR SAFETY Before operating the monitor, please read this manual thoroughly� This manual should be retained for future reference� WARNING: To prevent fire or shock hazard, do not expose the monit...
Page 4
Do not attempt to service the monitor by yourself; opening or removing covers can expose you to dangerous voltages and other hazards� Please refer all servicing to qualified service personnel� To ensu...
Page 5
BEFORE YOU OPERATE THE MONITOR FEATURES 546�1mm (21�5’’) TFT Color LCD Monitor Crisp, Clear Display for Windows 7, Windows 8, Windows 8�1 and Windows 10 Recommend Resolutions: 1920 x 1080@60Hz Ergonom...
Page 6
INSTALLATION INSTRUCTIONS Attach base: Detach base:
Page 7
POWER CORD Power Source: 1� Please ensure you are using the correct power cord in your area� 2� This LCD monitor allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment ...
Page 8
CONTROLS AND CONNECTORS SIGNAL CABLE Connecting the Signal Cable: Connect the 15-pin VGA cable to the back of the monitor and the computer’s VGA port� Connecting the Power Cord: Connect the AC-power c...
Page 9
ADJUSTING THE VIEWING ANGLE For optimal viewing, it is recommended to look at the full face of the monitor and then adjust the monitor’s angle to your own preference� Hold the stand so you do not topp...
Page 10
OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off� The other control buttons are located on the side of the monitor� By changing these settings, the pict...
Page 11
FRONT PANEL CONTROL Power Button: Press to switch the monitor on or off� Power Indicator: Blue — Power On mode� Orange — Standby mode� LED off — Off mode� MENU / ENTER: Activate OSD menu or function a...
Page 12
HOW TO ADJUST A SETTING 1� Press the MENU-button to display the OSD menu� 2� Press + or - to navigate through the menu items� Once the desired item is highlighted, press the MENU-button to enter� Pres...
Page 13
ADJUSTING THE PICTURE The descriptions for function control: Main Menu Main Menu Sub Menu Item Sub Menu Description Item Icon Contrast* Contrast adjustment Brightness* Brightness adjustment Standard S...
Page 14
Main Menu Main Menu Sub Menu Item Sub Menu Description Item Icon Select input source VGA and Input Select VGA/DVI DVI Turn ON/OFF DDC/CI DDC/CI Extra Support Reset yes or no Reset the menu to default�...
Page 15
TROUBLESHOOTING Problem & Question Possible Solution Check if the Power Switch is in the ON position� Power LED is not on Power Cord should be connected� Check if the PC system is Plug & Play ...
Page 16
ERROR MESSAGE AND POSSIBLE SOLUTION NO SIGNAL 1� Check that the signal-cable is properly connected� If the connector is loose, tighten the connector’s screws� 2� Check the signal-cable’s connection pi...
Page 17
APPENDIX SPECIFICATIONS Driving system 21�5” TFT Color LCD Size 546�1 mm diagonal Pixel Pitch 0�2482 mm(H)×0�2482 mm(V) LCD Panel Response Time 5ms (typ�) (trise + tfall) Luminance of White 250 cd/m2 ...
Page 18
FACTORY PRESET TIMING TABLE HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY (KHz) FREQUENCY (Hz) 640 × 480@60Hz 31�469 59�940 640 × 480@75Hz 37�500 75�000 800 × 600@60Hz 37�879 60�317 800 × 600@75Hz...
Page 19
CONNECTOR PIN ASSIGNMENT 15 - Pin Color Display Signal Cable PIN NO. DESCRIPTION PIN NO. DESCRIPTION 1. Red 9. +5V 2. Green 10. Ground 3. Blue 11. Ground 4. Ground 12. DDC-Serial Data 5. Detect Cable ...
