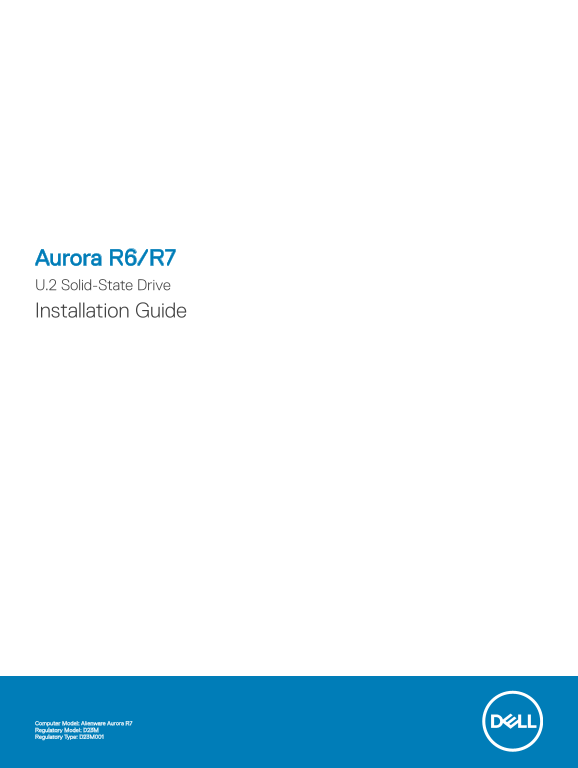

Aurora R6/R7 U.2 Solid-State Drive Installation Guide
Computer Model: Alienware Aurora R7 Regulatory Model: D23M Regulatory Type: D23M001
Page Summary Contents For Dell Aurora R6 R7 U.2 Solid-State Drive Installation Guide
Page 1
Aurora R6/R7 U.2 Solid-State Drive Installation Guide Computer Model: Alienware Aurora R7 Regulatory Model: D23M Regulatory Type: D23M001
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents 1 Before working inside your computer............................................................................................................. Before you begin ..............................
Page 4
Before working inside your computer NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Topics: Before you begin Safety instructions Recommended...
Page 5
CAUTION: Press and eject any installed card from the media-card reader. Recommended tools The procedures in this document may require the following tools: Philips screwdriver #1 Flat-head screwdriver ...
Page 6
Installing the U.2 solid-state drive NOTE: Ensure that you remove the security cable and security screw from the security-cable slot—if applicable. 1 Remove the screw (#6-32 X 1/2") that secures ...
Page 7
Figure 2. Removing the hard drive data cable power cable hard-drive cage release tabs hard-drive carrier 7 Place the U.2 solid-state drive in the hard-drive carrier and align the tabs on the carrier w...
Page 8
U.2 solid-state drive 8 Slide the U.2 solid-state drive assembly into the hard-drive cage until it snaps into place. Figure 4. U.2 solid-state drive assembly solid-state drive assembly chassis 9 Slide...
Page 9
Figure 6. Rotating the power-supply unit power-supply unit cage graphics-card bracket chassis 11 Rotate the power-supply unit cage away from the chassis. Installing the U.2 solid-state drive
Page 10
Figure 7. Rotating the power-supply unit power-supply unit 12 Lift to release the graphics-card bracket from the chassis. Installing the U.2 solid-state drive
Page 11
Figure 8. Removing the graphics card graphics-card bracket graphics card 13 Press the releasing clip on the power-cable connectors and disconnect the power cables from the graphics card. 14 Push the s...
Page 12
Figure 9. Removing the graphics card power cables releasing clips (2) graphics card securing tab 15 Slide the fan cable and the data and power cable through the power-supply unit cage. 16 Connect the ...
Page 13
Figure 10. Connecting the cables solid-state drive slot screw data cable solid-state drive adapter power cable fan cable 20 Align the graphics card with the slot on the system board. 21 Place the grap...
Page 14
Figure 11. Connecting the power cable chassis power cable 26 Place the computer in an upright position. 27 Align the tabs on the left-side cover with the slots on the chassis. 28 Snap the left-side co...
Page 15
After working inside your computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and ensure that no stray screws remain inside you...
Page 16
Getting help and contacting Alienware Self-help resources You can get information and help on Alienware products and services using these online self-help resources: Table 1. Self-help resources Infor...
