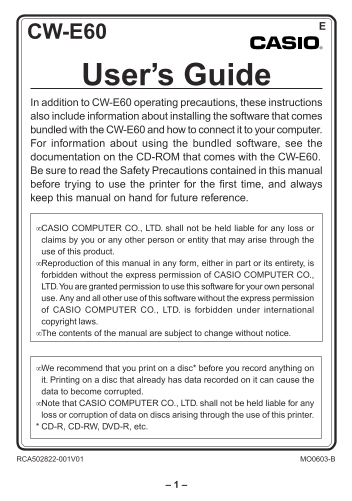

Page 1
CW-E60 User’s Guide In addition to CW-E60 operating precautions, these instructions also include information about installing the software that comes bundled with the CW-E60 and how to connect it to y...
Page 2
Important! The copyright of this User’s Guide and all rights related to the software shall revert to CASIO COMPUTER CO., LTD. Microsoft, Windows and Windows NT are registered trademarks or trademarks ...
Page 3
GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THE UNIT IN THE U.S.A. (not applicable to other areas). NOTICE This equipment has been tested and found to comply with the limits for a Class B digital dev...
Page 4
Declaration of Conformity Model Number: CW-E60 Trade Name: CASIO COMPUTER CO., LTD. Responsible party: CASIO, INC. Address: 570 MT.PLEASANT AVENUE, DOVER, NEW JERSEY 07801 Telephone number: 201-361-54...
Page 5
Warning Smoke, abnormal odor, overheating, and other abnormalities Continued use of the product while it is emitting smoke or strange odor, or overheating creates the risk of fire and electric shock. ...
Page 6
Warning Dropping and rough treatment Continued use of the product after it has been damaged due to dropping or other rough treatment creates the risk of fire and electric shock. Immediately perform th...
Page 7
Caution Power cord, AC adaptor, USB cable Misuse of the power cord, AC adaptor, or USB cable can damage it and create the risk of fire and electric shock. Make sure you follow the precautions listed b...
Page 8
Operating Precautions Observe the following precautions to ensure that the printer provides you with the years of trouble-free operation for which it is designed. Avoid using the printer in areas expo...
Page 9
Unpacking Check to make sure all of the following items are included. Application CD-ROM Power cord CW-E60 Printer DISC TITLE PRINTER SOFTWARE AC adaptor (AD-2105S) Ink ribbon cassette Positioning gui...
Page 10
About the Bundled CD-ROM Handling Precautions When handling the disc, avoid getting finger smudges, dirt, scratches, etc. on either of its surfaces. Should the disc become dirty, use an eyeglass clean...
Page 11
Minimum System Requirements OS: Microsoft® Windows® XP, 2000 Professional, Me, 98SE, or 98 (English/French/German/Italian/Spanish Version) Computer: IBM PC/AT with the following specifications. Window...
Page 12
Installing the Software This document explains how to install the bundled software on a computer running the English version of Windows XP. For details about basic Windows operations, see the user doc...
Page 13
■ To install the printing software The examples in this manual show installation from a CD-ROM drive named drive D:. 1. Start up Windows, and place the DISC TITLE PRINTER SOFTWARE CD-ROM into your com...
Page 14
3. Click Next. This displays the “Preceding License Agreement”. Be sure to read the “Preceding License Agreement”. 4. After reading the agreement, click Yes. This displays the “Software End User Licen...
Page 15
Installing Adobe Reader Your computer must have Adobe Reader or Acrobat Reader 4.0 or higher installed in order to view the PDF file user documentation for the DISC TITLE PRINTER. If your computer doe...
Page 16
To Read the Contents of a Manual in a PDF file 1. Place the CD-ROM that comes with the printer into the CD drive of your computer. 2. When the installer screen for the printing software appears, click...
Page 17
General Guide Indicator lamp Lights when the printer is connected correctly to a PC. Flashes when printing is in Cassette cover progress. Open this cover to load or remove the ink ribbon cassette. Sli...
Page 18
If you are unable to remove the disc from the printer due to printer malfunction, click the Eject button on the Main Window of the DISC TITLE PRINTER Application and then remove the disc. If your comp...
Page 19
Connecting to your Computer Important! Perform the following procedures only after you have installed the software on your computer. Use only the USB cable that comes bundled with the printer. To Conn...
Page 20
4. Connect the USB cable to the USB port of the printer. Installing the USB Driver A USB driver installation Wizard starts up automatically the first time you con- nect the printer to your computer af...
Page 21
Disconnecting from a Computer 1. Unplug the USB cable from the computer and printer. 2. Unplug the power cord from the wall outlet (1), and then unplug the AC adaptor from the printer (2). Important! ...
Page 22
Loading and Removing an Ink Ribbon Cassette An ink ribbon cassette is required when printing disc labels. You should use only the special ink ribbon cassettes that are specified for this printer. To l...
Page 23
4. Load the ink ribbon cassette into the printer. Make sure that the ink ribbon passes between the print head the rubber roller as shown in the illustration below. Press down on the ink ribbon cassett...
Page 24
Inserting a Disc into the Printer See the DISC TITLE PRINTER Application User's Guide for information about how to insert a disc into the printer for printing and how to use the positioning guide. Car...
Page 25
Troubleshooting Consult this troubleshooting guide whenever you start to have problems with the printer. If you cannot find the solution to your problem below, contact your original retailer. Symptom ...
Page 26
Symptom Possible Cause Recommended Action The printing is Improper alignment of Use the positioning guide when not positioned the disc when it is placed aligning the disc. (See the DISC correctly on t...
Page 27
Specifications Model: CW-E60 Printing Resolution: 200dpi Approximate Speed: 8mm per second Print System Thermal transfer Print Width Approximately 16mm Print Length Approximately 74mm Actual printing ...
Page 28
CASIO Europe Gmb H Bornbarch 10, 22848 Norderstedt, Germany This mark applies in EU countries only. CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome Shibuya-ku, Tokyo 151-8543, Japan
