Page 1 Text Content

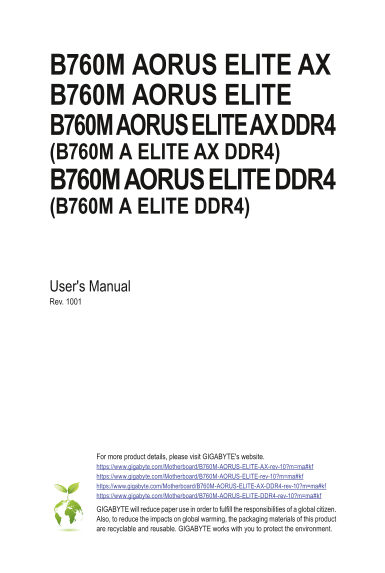

B760M AORUS ELITE AX B760M AORUS ELITE B760M AORUS ELITE AX DDR4 (B760M A ELITE AX DDR4) B760M AORUS ELITE DDR4 (B760M A ELITE DDR4)
User's Manual Rev. 1001
For more product details, please visit GIGABYTE's website. https://www.gigabyte.com/Motherboard/B760M-AORUS-ELITE-AX-rev-10?m=ma#kf https://www.gigabyte.com/Motherboard/B760M-AORUS-ELITE-rev-10?m=ma#kf https://www.gigabyte.com/Motherboard/B760M-AORUS-ELITE-AX-DDR4-rev-10?m=ma#kf https://www.gigabyte.com/Motherboard/B760M-AORUS-ELITE-DDR4-rev-10?m=ma#kf GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
Page Summary Contents For B760M AORUS ELITE (Rev.1.0) User Manual - English (Version 1001)
Page 1
B760M AORUS ELITE AX B760M AORUS ELITE B760M AORUS ELITE AX DDR4 (B760M A ELITE AX DDR4) B760M AORUS ELITE DDR4 (B760M A ELITE DDR4) User's Manual Rev. 1001 For more product details, please visit GIGA...
Page 2
Copyright © 2022 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is...
Page 3
Table of Contents Chapter 1 Product Introduction .......................................................................................4 1-1 Motherboard Layout ..........................................
Page 4
Chapter 1 Product Introduction 1-1 Motherboard Layout ATX_12V_2X2 LED_C2 ATX_12V_2X4 CPU_FAN R_USB20 D_LED2 SYS_FAN1 USB 2.0 Hub M2_WIFI j DP_ HDMI LGA1700 M2 A_ CP U80 M2 P_ SB80 B7 AO RU EL IT AX B7...
Page 5
ATX_12V_2X2 LED_C2 ATX_12V_2X4 CPU_FAN R_USB20 D_LED2 SYS_FAN1 USB 2.0 Hub M2_WIFI l DP_ HDMI LGA1700 M2 A_ CP U80 M2 P_ SB80 B7 AO RU EL IT AX DR 4/ B7 AO RU EL IT DD R4 U32_LAN DD R4 _A Realtek® 2.5...
Page 6
1-2 Motherboard Block Diagram 1 P CI xp re ss x4 1 P CI xp re ss x1 PCI Express 4.0 Bus DDR5 5600/5200/4800/4400 MT/s jk DDR4 3200/3000/2933/2666/2400/2133 MT/s lm 1 M.2 Socket 3 LGA1700 CPU (M2A_CPU)...
Page 7
1-3 Box Contents B760M AORUS ELITE AX, B760M AORUS ELITE, B760M AORUS ELITE AX DDR4, or B760M AORUS ELITE DDR4 motherboard User's Manual One antennajl Two SATA cables j Only for B760M AORUS ELITE AX. ...
Page 8
Chapter 2 Hardware Installation 2-1 Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic dischar...
Page 9
2-2 Product Specifications CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list.) ...
Page 10
Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) ...
Page 11
Back Panel 2 x SMA antenna connectors (2T2R) jl Connectors 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI...
Page 12
2-3 Installing the CPU and CPU Cooler Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. (Go to GIGABYTE's website for the latest CPU s...
Page 13
B. Installing the CPU Follow the steps below to correctly install the CPU into the motherboard CPU socket. Finger Tab jGently press the CPU socket lever handle down and away from the socket. kComple...
Page 14
C. Installing the CPU Cooler Be sure to install the CPU cooler after installing the CPU. (Actual installation process may differ depending the CPU cooler to be used. Refer to the user's manual for you...
Page 15
2-4 Installing the Memory Read the following guidelines before you begin to install the memory: Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, ...
Page 16
2-5 Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: Make sure the motherboard supports the expansion card. Carefully read the manual that came...
Page 17
2-6 Back Panel Connectors USB 2.0/1.1 Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices. SMA Antenna Connectors (2T2R)jl Use this connector to connect an antenna....
Page 18
RJ-45 LAN Port The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following describes the states of the LAN port LEDs. Activity LEDSpeed LED Speed LED: Activit...
Page 19
2-7 Onboard Buttons and LEDs Quick Button The reset button (RST_SW) allows users to quickly turn on/off the computer in an open-case environment when they want to change hardware components or conduct...
Page 20
2-8 Internal Connectors 1) ATX_12V_2X2/ATX_12V_2X4 10) F_AUDIO 2) ATX 11) F_U32C 3) CPU_FAN 12) F_U32 4) SYS_FAN1/2/3 13) F_USB1/F_USB2 5) D_LED1/D_LED2 14) SPI_TPM 6) LED_C1/LED_C2 15) THB_C1/THB_C2 ...
Page 21
DEBUG PORT DEBUG PORT 1/2) ATX_12V_2X2/ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to a...
Page 22
F_USB30 F_ U F_ F_ F_ US B3 F_ F_ F_ DEBUG PORT DEBUG DEBUG _S PORT F_USB3 F F_ US B3 3/4) CPU_FAN/SYS_FAN1/2/3 (Fan Headers) _ _B S _ All fan headers on this motherboard are 4-pin. Most fan he...
Page 23
6) LED_C1/LED_C2 (RGB LED Strip Headers) DEBUG The headers can be used to connect a standard 5050 RGB LED strip (12V/G/R/B), with maximum power rating of 2A (12V) and maximum length of 2m. DEBUG PORT ...
Page 24
F_USB30 F_ U F_ F_ F_USB30 F_ U F_ F_ F_USB3 F _ S F_USB3 F 8) M2A_CPU/M2P_SB (M.2 Socket 3 Connectors) The M.2 connectors on the motherboard support only M.2 PCIe SSDs. F_USB3 F_USB30 3 B_ USB 0_...
Page 25
9) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignme...
Page 26
F_USB30 F_ U F_ F_ F_USB3 F 10) F_AUDIO (Front Panel Audio Header) The front panel audio header supports High Definition audio (HD). You may connect your chassis front _ _B S _ panel audio modu...
Page 27
F_USB30 F_ U F_ F_ 12) F_U32 (USB 3.2 Gen 1 Header) The header conforms to USB 3.2 Gen 1 and USB 2.0 specification and can provide two USB ports. For purchasing the optional 3.5" front panel that...
Page 28
F_USB30 F_ U F_ F_ F_USB30F_ U F_ F_ F_USB30 F_ U F_ F_ F_USB3 F S 3 B S S S S_ _SB F_USB3 F F_USB3 F B_ 14) SPI_TPM (Trusted Platform Module Header) You may connect an SPI TP...
Page 29
16) CLR_CMOS (Clear CMOS Jumper) Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear the CMOS values, use a metal object like a screwdriver to touch...
Page 30
18) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the batt...
Page 31
Chapter 3 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the motherboard. Its major functions include conducting the Power-On Self-Test (POST)...
Page 32
Startup Screen: The following startup Logo screen will appear when the computer boots. Function Keys Function Keys: <DEL>: BIOS SETUP\Q-FLASH Press the <Delete> key to enter BIOS Setup or ...
Page 33
Chapter 4 Installing the Operating System and Drivers 4-1 Operating System Installation With the correct BIOS settings, you are ready to install the operating system. To install an operating system on...
Page 34
4-2 Drivers Installation After you install the operating system, a dialog box will appear on the bottom-right corner of the desktop asking if you want to download and install the drivers and GIGABYTE ...
Page 35
Chapter 5 Appendix 5-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 5 RAID 10 Minimum Number of Hard ≥2 ≥3 Drives Number of hard (Number of hard (Number of hard Size of the smallest Array Cap...
Page 36
Regulatory Notices United States of America, Federal Communications Commission Statement Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Motherboard Trade Nam...
Page 37
European Union (EU) CE Declaration of Conformity CE Declaración de conformidad This device complies with the following directives: Electromagnetic Este producto que llevan la marca CE cumplen con las ...
Page 38
European Community Radio Equipment Directive Compliance Statement: This equipment complies with all the requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU. This equipme...
Page 39
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231 TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : h...
