ASUS Data Storage RAID R Express PCIe SSD User's Manual (English)
Summary
This comprehensive user guide provides detailed specifications and step-by-step instructions for the RAIDR Express SSD Card series. It covers everything a user needs to know, from initial hardware installation and product overviews to advanced functionalities like RAMDisk, DuoMode, and SSD TweakIt. Designed for demanding PC builders, system integrators, and tech enthusiasts who require optimized storage performance and reliable high-speed data management solutions.
Page 1 Text Content

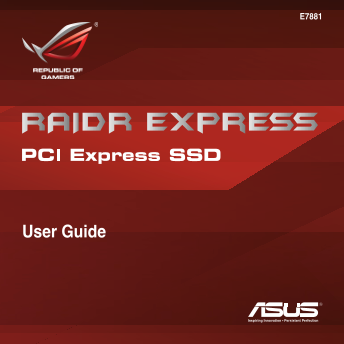

User Guide
Page Summary Contents For ASUS Data Storage RAID R Express PCIe SSD User's Manual (English)
Page 1
User Guide
Page 2
Revised Edition V May 013 Copyright © 013 ASUSTe K COMPUTER INC. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, tra...
Page 3
Offer to Provide Source Code of Certain Software This product contains copyrighted software that is licensed under the General Public License (“GPL”), under the Lesser General Public License Version (...
Page 4
Table of Contents Package contents ........................................................................................................ RAIDR Express card specifications summary .....................
Page 5
Welcome! Thank you for purchasing a RAIDR Express card. The RAIDR Express card is a PCIE SSD storage card that allows you to maximize the performance of your system using SSD technology and these excl...
Page 6
RAIDR Express card specifications summary Interface PCIe 2.0 x2 Capacity 240 GB Controller Dual LSI® Sand Force SF-2281 Flash Memory TOSHIBA® 19nm 16K Page Size MLC Sync-NAND Flash Sequential Read Spe...
Page 7
Dimension (mm) 157(L)*120(W)*20(H) Weight 243g Temperature 0º C - 70º C Compatible OS Windows® 7 and Windows® 8 TRIM TRIM command supported Latency <0.1ms UEFI boot compliant Supported Windows® 8 S...
Page 8
Product Overview NOTE: The following drawings are for reference only. Actual product specifications may vary. RAIDR Express card LED indicator - Solid Red This LED light indicates that the RAIDR Expre...
Page 9
Inside your RAIDR Express card RAIDR Express SSD
Page 10
RAIDR Express SSD (Solid State Drive) The RAIDR Express card stores data using a SSD made up of integrated circuit assemblies that store data at much faster speed. The SSD allows you to boot up and la...
Page 11
Hardware installation NOTE: The following illustrations are for reference only. The motherboard layout may vary with models, but the installation steps of the RAIDR Express card remain the same. 1. Lo...
Page 12
ROG Exclusive Features Install the following software features using the support CD that comes with your package. NOTE: For more details on how to install these features, refer to the Software Install...
Page 13
Duo Mode Your RAIDR Express card comes with a Duo Mode switch that allows you to choose between using the legacy and UEFI modes of your system. Through Duo Mode, you can ensure better compatibility an...
Page 14
ROG Hybri Disk Get the most out of your HDD (Hard Disk Drive) and SSD when it comes to maximizing storage space using ROG Hybri Disk. This feature optimizes your SSD by turning it into a disk cache fo...
Page 15
Software installation Place the support CD into the optical drive. The CD automatically displays the Drivers menu if Autorun is enabled in your computer. Click each menu tab and select the items you w...
Page 16
Driver installation The RAIDR Express card works even without the driver. However, you may refer to the following procedures if you opt to install the device driver for your RAIDR Express card. 1. Con...
Page 17
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interfer...
Page 18
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is con...
Page 19
IC: Canadian Compliance Statement Complies with the Canadian ICES-003 Class B specifications. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of th...
Page 20
Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations...
Page 21
REACH Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website ...
Page 22
ASUS contact information ASUSTe K COMPUTER INC. Address 15 Li-Te Road, Peitou, Taipei, Taiwan 11259 Telephone +886-2-2894-3447 Fax +886-2-2890-7798 Technical Support Telephone +86-21-38429911 Online s...
Page 23
EC Declaration of Conformity DECLARATION OF CONFORMITY We, the undersigned, Per FCC Part 2 Section 2. 1077(a) Manufacturer: ASUSTe K COMPUTER INC. Address, City: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI...
Page 24
