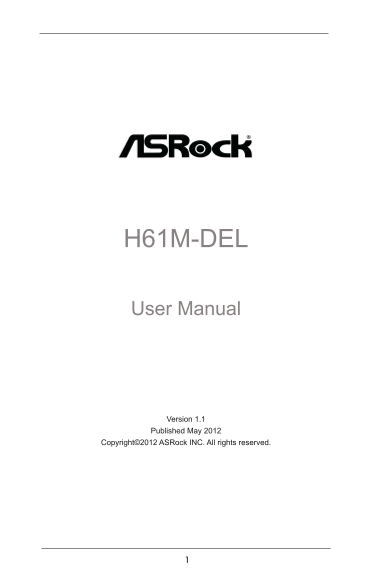

H61M-DEL
User Manual
Version 1.1 Published May 2012
Copyright©2012 ASRock INC. All rights reserved.
Page Summary Contents For ASROCK H61M-DEL User Manual
Page 1
H61M-DEL User Manual Version 1.1 Published May 2012 Copyright©2012 ASRock INC. All rights reserved.
Page 2
Copyright Notice: No part of this manual may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser f...
Page 3
Contents 1 Introduction ......................................................... 5 1.1 Package Contents ......................................................... 1.2 Specifications .....................
Page 4
3 UEFI SETUP UTILITY ................................................. 33 3.1 Introduction .................................................................... 3.1.1 UEFI Menu Bar .......................
Page 5
Chapter 1: Introduction Thank you for purchasing ASRock H61DEL motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance wit...
Page 6
1.2 Specifications Platform - ATX Form Factor: 12.0-in x 6.8-in, 30.5 cm x 17.3 cm - Solid Capacitor for CPU power CPU - Supports 3rd and 2nd Generation Intel® Core TM i7 / i5 / i3 in LGA1155 Package ...
Page 7
- Dual VGA Output: support HDMI and D-Sub ports by independent display controllers - Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up ...
Page 8
- Supports jumperfree - SMBIOS 2.3.1 Support - IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment Support CD - Drivers, Utilities, Anti Virus Software (Trial Version), Cyber Link Media Espr...
Page 9
CAUTION! 1. About the setting of “Hyper Threading Technology”, please check page 40. 2. This motherboard supports Dual Channel Memory Technology. Before you implement Dual Channel Memory Technology, m...
Page 10
8. If you desire a faster, less restricted way of charging your Apple devices, such as i Phone/i Pod/i Pad Touch, ASRock has prepared a wonderful solution for you - ASRock APP Charger. Simply installi...
Page 11
14. Combo Cooler Option (C.C.O.) provides the flexible option to adopt three different CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156. Please be noticed that not all the 775 and 1156 CPU Fan ...
Page 12
1.3 Motherboard Layout 17.3cm (6.8 in) Designed in Taipei CPU_FAN1 ATX12V1 USB 2.0 T: USB0 B: USB1 USB 2.0 T: USB2 B: USB3 USB 2.0 T: USB4 Top: B: USB5 RJ-45 PWR_FAN1 al an el IN IN (6 it -p in le te ...
Page 13
1.4 I/O Panel 1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB23) * 2 LAN RJ-45 Port 8 USB 2.0 Ports (USB01) 3 Line In (Light Blue) 9 VGA/HDMI Port ** 4 Front Speaker (Lime) 10 VGA/D-Sub Port 5 Micropho...
Page 14
Chapter 2: Installation This is an ATX form factor (12.0" x 6.8", 30.5 x 17.3 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the ...
Page 15
2.3 CPU Installation For the installation of Intel 1155-Pin CPU, please follow the steps below. Load Plate Load Lever Contact Array Socket Body 1155-Pin Socket Overview Before you insert the 1155-Pin ...
Page 16
Step 3. Insert the 1155-Pin CPU: Step 3-1. Hold the CPU by the edge where is marked with black line. black line Step 3-2. Orient the CPU with IHS (Integrated Heat Sink) up. Locate Pin1 and the two ori...
Page 17
2.4 Installation of CPU Fan and Heatsink This motherboard is equipped with 1155-Pin socket that supports Intel 1155-Pin CPU. Please adopt the type of heatsink and cooling fan compliant with Intel 1155...
Page 18
2.5 Installation of Memory Modules (DIMM) This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you a...
Page 19
2.6 Expansion Slots (PCI Express Slots) There are 6 PCI Express slots on this motherboard. PCIE slots: PCIE1 / PCIE3 / PCIE4 / PCIE5 / PCIE6 (PCIE 2.0 x1 slot; White) is used for PCI Express cards wit...
Page 20
2.7 Dual Monitor and Surround Display Features Dual Monitor Feature This motherboard supports dual monitor feature. With the internal VGA output sup- port (HDMI and D-Sub), you can easily enjoy the be...
Page 21
Surround Display Feature This motherboard supports surround display upgrade. With the internal VGA output support (HDMI and D-Sub) and external add-on PCI Express VGA cards, you can easily enjoy the b...
Page 22
For Windows® 7 / 7 64-bit / Vista TM / Vista TM 64-bit OS: Right click the desktop, choose “Personalize”, and select the “Display Settings” tab so that you can adjust the parameters of the multi-monit...
Page 23
2.8 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration...
Page 24
2.9 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will ...
Page 25
Front Panel Audio Header This is an interface for front GND PRESENCE# (9-pin HD_AUDIO1) panel audio cable that allows MIC_RET OUT_RET (see p.12 No. 20) convenient connection and control of audio devic...
Page 26
The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis fron...
Page 27
ATX 12V Power Connector Please connect an ATX 12V 8 5 (8-pin ATX12V1) power supply to this connector. (see p.12 No. 3) Though this motherboard provides 8-pin ATX 12V power connector, it can still work...
Page 28
2.10 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks Installation This motherboard adopts Intel® H61 chipset that supports Serial ATA (SATA) / Serial ATAII (SATAII) hard disks. You may install SA...
Page 29
2.12 SATA / SATAII HDD Hot Plug Feature and Operation Guide This motherboard supports Hot Plug feature for SATA / SATAII HDD in AHCI mode. Please read below operation guide of Hot Plug feature careful...
Page 30
How to Hot Plug a SATA / SATAII HDD: Points of attention, before you process the Hot Plug: Please do follow below instruction sequence to process the Hot Plug, improper procedure will cause the SATA /...
Page 31
2.13 Driver Installation Guide To install the drivers to your system, please insert the support CD to your optical drive first. Then, the drivers compatible to your system can be auto-detected and lis...
Page 32
STEP 3: Install Windows® XP / XP 64-bit OS on your system. After making a SATA / SATAII driver diskette, you can start to install Windows® XP / XP 64-bit on your system. At the beginning of Windows® s...
Page 33
Chapter 3: UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may...
Page 34
3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description / Moves cursor left or right to select Screens / Move...
Page 35
3.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. CPU Configuration CPU Turbo Ratio Use this item to change the ratio value of this motherboard. Intel Speed Step Te...
Page 36
Short Duration Power Limit Use this item to configure short duration power limit in watts. The default value is [Auto]. Primary Plane Current Limit Use this item to configure the maximum instantaneous...
Page 37
DRAM t RP Use this item to change Row Precharge Time (t RP) Auto/Manual setting. The default is [Auto]. DRAM t RAS Use this item to change RAS# Active Time (t RAS) Auto/Manual setting. The default is ...
Page 38
Voltage Configuration CPU Core Voltage Offset Use this to select CPU core voltage offset. The default value is [Auto]. IGPU Voltage Offset Use this to select IGPU voltage offset. The default value is ...
Page 39
3.4 Advanced Screen In this section, you may set the configurations for the following items: CPU Configu- ration, North Bridge Configuration, South Bridge Configuration, Storage Configura- tion, Intel...
Page 40
3.4.1 CPU Configuration Intel Hyper Threading Technology To enable this feature, a computer system with an Intel processor that sup- ports Hyper-Threading technology and an operating system that inclu...
