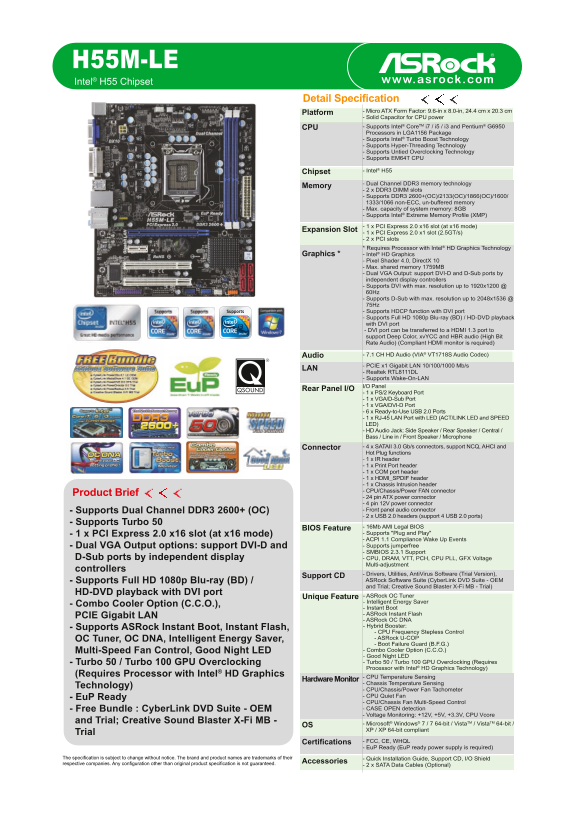

H55M-LE
Intel® H55 Chipset www.asrock.com
Detail Specification
- Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm
Platform
- Solid Capacitor for CPU power CPU - Supports Intel® Core TM i7 / i5 / i3 and Pentium® G6950 Processors in LGA1156 Package - Supports Intel® Turbo Boost Technology - Supports Hyper-Threading Technology - Supports Untied Overclocking Technology - Supports EM64T CPU
Chipset - Intel® H55 - Dual Channel DDR3 memory technology
Memory
- 2 x DDR3 DIMM slots - Supports DDR3 2600+(OC)/2133(OC)/1866(OC)/1600/ 1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 8GB - Supports Intel® Extreme Memory Profile (XMP) - 1 x PCI Express 2.0 x16 slot (at x16 mode)
Expansion Slot
- 1 x PCI Express 2.0 x1 slot (2.5GT/s) - 2 x PCI slots * Requires Processor with Intel® HD Graphics Technology Graphics * - Intel® HD Graphics - Pixel Shader 4.0, Direct X 10 - Max. shared memory 1759MB - Dual VGA Output: support DVI-D and D-Sub ports by independent display controllers - Supports DVI with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz - Supports HDCP function with DVI port - Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI port - DVI port can be transferred to a HDMI 1.3 port to support Deep Color, xv YCC and HBR audio (High Bit Rate Audio) (Compliant HDMI monitor is required) Audio - 7.1 CH HD Audio (VIA® VT1718S Audio Codec) - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL - Supports Wake-On-LAN I/O Panel
Rear Panel I/O
- 1 x PS/2 Keyboard Port - 1 x VGA/D-Sub Port - 1 x VGA/DVI-D Port - 6 x Ready-to-Use USB 2.0 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Connector - 4 x SATAII 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions - 1 x IR header - 1 x Print Port header - 1 x COM port header - 1 x HDMI_SPDIF header - 1 x Chassis Intrusion header - CPU/Chassis/Power FAN connector
Product Brief
- 24 pin ATX power connector - 4 pin 12V power connector - Supports Dual Channel DDR3 2600+ (OC) - Front panel audio connector - 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- Supports Turbo 50
- 16Mb AMI Legal BIOS
BIOS Feature
- 1 x PCI Express 2.0 x16 slot (at x16 mode) - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Dual VGA Output options: support DVI-D and - Supports jumperfree - SMBIOS 2.3.1 Support
D-Sub ports by independent display - CPU, DRAM, VTT, PCH, CPU PLL, GFX Voltage
Multi-adjustment
controllers
- Drivers, Utilities, Anti Virus Software (Trial Version),
Support CD
- Supports Full HD 1080p Blu-ray (BD) / ASRock Software Suite (Cyber Link DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
HD-DVD playback with DVI port
Unique Feature - ASRock OC Tuner - Intelligent Energy Saver
- Combo Cooler Option (C.C.O.),
- Instant Boot - ASRock Instant Flash
PCIE Gigabit LAN
- ASRock OC DNA - Supports ASRock Instant Boot, Instant Flash, - Hybrid Booster: - CPU Frequency Stepless Control OC Tuner, OC DNA, Intelligent Energy Saver, - ASRock U-COP - Boot Failure Guard (B.F.G.) Multi-Speed Fan Control, Good Night LED - Combo Cooler Option (C.C.O.) - Good Night LED - Turbo 50 / Turbo 100 GPU Overclocking - Turbo 50 / Turbo 100 GPU Overclocking (Requires Processor with Intel® HD Graphics Technology)
(Requires Processor with Intel® HD Graphics
- CPU Temperature Sensing
Hardware Monitor
- Chassis Temperature Sensing
Technology)
- CPU/Chassis/Power Fan Tachometer - Eu P Ready - CPU Quiet Fan - CPU/Chassis Fan Multi-Speed Control - Free Bundle : Cyber Link DVD Suite - OEM - CASE OPEN detection - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
and Trial; Creative Sound Blaster X-Fi MB -
- Microsoft® Windows® 7 / 7 64-bit / Vista TM / Vista TM 64-bit /
XP / XP 64-bit compliant
Trial
Certifications - FCC, CE, WHQL - Eu P Ready (Eu P ready power supply is required)
The specification is subject to change without notice. The brand and product names are trademarks of their - Quick Installation Guide, Support CD, I/O Shield
respective companies. Any configuration other than original product specification is not guaranteed. Accessories
- 2 x SATA Data Cables (Optional)
