ALPINE MP3 WMA CD Receiver CDE-M9805R User Guide

Summary

Upgrade your vehicle's audio experience with high-performance Alpine CD changers. Available models include 6 and 12-disc units, offering advanced features like M DAC, MP3 playback, and digital text display for maximum versatility. This manual provides comprehensive, multilingual instructions covering professional installation, proper wiring connections, troubleshooting tips (including noise suppression), and best practices for car audio system integration. Ideal for DIY enthusiasts or auto professionals seeking premium sound upgrades.

📄 Preview PAGE OF 28

Page 1 Text Content

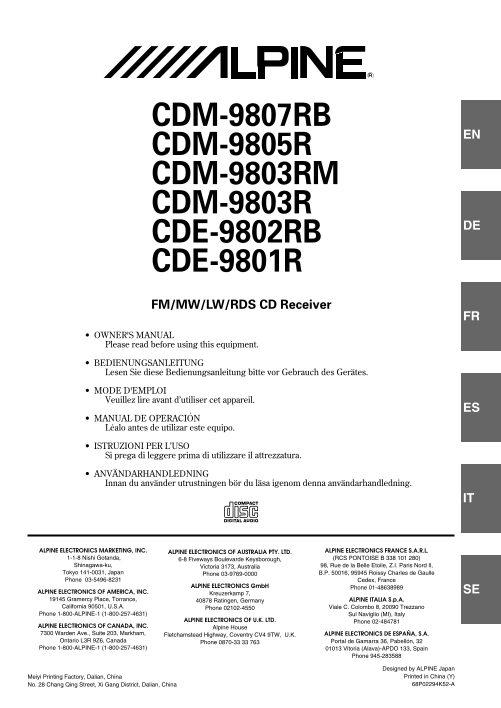

CDM-9807RB

CDM-9805R CDM-9803RM CDM-9803R

CDE-9802RB CDE-9801R FM/MW/LW/RDS CD Receiver

OWNER'S MANUAL Please read before using this equipment.

BEDIENUNGSANLEITUNG Lesen Sie diese Bedienungsanleitung bitte vor Gebrauch des Gerätes.

MODE D'EMPLOI Veuillez lire avant d’utiliser cet appareil.

MANUAL DE OPERACIÓN Léalo antes de utilizar este equipo.

ISTRUZIONI PER L’USO Si prega di leggere prima di utilizzare il attrezzatura.

ANVÄNDARHANDLEDNING Innan du använder utrustningen bör du läsa igenom denna användarhandledning.

ALPINE ELECTRONICS MARKETING, INC. ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. ALPINE ELECTRONICS FRANCE S.A.R.L.

1-1-8 Nishi Gotanda, 6-8 Fiveways Boulevarde Keysborough, (RCS PONTOISE B 338 101 280) Shinagawa-ku, Victoria 3173, Australia 98, Rue de la Belle Etoile, Z.I. Paris Nord Il, Tokyo 141-0031, Japan Phone 03-9769-0000 B.P. 50016, 95945 Roissy Charles de Gaulle Phone 03-5496-8231 Cedex, France

ALPINE ELECTRONICS Gmb H Phone 01-48638989

ALPINE ELECTRONICS OF AMERICA, INC. Kreuzerkamp 7, SE

19145 Gramercy Place, Torrance, 40878 Ratingen, Germany ALPINE ITALIA S.p.A. California 90501, U.S.A. Phone 02102-4550 Viale C. Colombo 8, 20090 Trezzano Phone 1-800-ALPINE-1 (1-800-257-4631) Sul Naviglio (MI), Italy

ALPINE ELECTRONICS OF U.K. LTD. Phone 02-484781

ALPINE ELECTRONICS OF CANADA, INC. Alpine House 7300 Warden Ave., Suite 203, Markham, Fletchamstead Highway, Coventry CV4 9TW, U.K. ALPINE ELECTRONICS DE ESPAÑA, S.A. Ontario L3R 9Z6, Canada Phone 0870-33 33 763 Portal de Gamarra 36, Pabellón, 32 Phone 1-800-ALPINE-1 (1-800-257-4631) 01013 Vitoria (Alava)-APDO 133, Spain

Phone 945-283588

Designed by ALPINE Japan Meiyi Printing Factory, Dalian, China Printed in China (Y)

No. 28 Chang Qing Street, Xi Gang District, Dalian, China 68P02294K52-A

Page Summary Contents For ALPINE MP3 WMA CD Receiver CDE-M9805R User Guide

Page 1 CDM-9807RB CDM-9805R CDM-9803RM CDM-9803R CDE-9802RB CDE-9801R FM/MW/LW/RDS CD Receiver OWNER'S MANUAL Please read before using this equipment. BEDIENUNGSANLEITUNG Lesen Sie diese Bedienungsanleitung ...
Page 2 CHM-S630 CD changer for CDM-9807RB/CDM-9805R/ CDM-9803RM/CDM-9803R CHA-1214CHA-S634 CD-Wechsler für CDM-9807RB/CDM-9805R/ CDM-9803RM/CDM-9803R Changeur CD pour CDM-9807RB/CDM- 9805R/CDM-9803RM/CDM-980...
Page 3 ENGLISH Contents Receiving Traffic Information While Playing Operating Instructions CD or Radio Priority News WARNING CD Player Operations WARNING Inserting/Ejecting Disc CAUTION Normal Play and Pause...
Page 4 WARNING WARNING CAUTION This symbol means important instructions. This symbol means important instructions. Failure to heed them can result in serious Failure to heed them can result in injury or inju...
Page 5 Never Attempt the Following Installation Location Do not grip or pull out the disc while it is being pulled Make sure this unit will not be installed in a location back into the player by the automati...
Page 6 Basic Operations (CDM-9807RB/CDM-9805R) (CDM-9803RM/CDM-9803R/CDE-9802RB/CDE-9801R) SOURCE/ SOURCE/ POWER MODE / LOUD (Rotary encoder) POWER MODE / LOUD MUTE MUTE Detaching the Front Panel Controllabl...
Page 7 Turning Power On and Off Turning Loudness On/Off Press the SOURCE/POWER button to turn on Loudness introduces a special low- and high- the unit. frequency emphasis at low listening levels. This compen...
Page 8 Basic Operations (CDM-9807RB/CDM-9805R) (CDM-9803RM/CDM-9803R/CDE-9802RB/CDE-9801R) Rotary encoder BAND CENTER f DISP/B. OUT CENTER f (CDM-9807RB only) The settings of the Bass Level will be individua...
Page 9 Setting the Bass Type Changing Audio Level Display Pattern This function allows for 3 different Bass type settings. Select the one that appeals to you the (CDM-9807RB/CDM-9805R only) most. Press the D...
Page 10 Radio Operations Automatic Seek Tuning SOURCE/ TUNE/ Press the SOURCE/POWER button to select the POWER A. ME BAND radio mode. Press the BAND button repeatedly until the desired radio band is displayed...
Page 11 Manual Storing of Station Presets Automatic Memory of Station Presets Select the radio band and tune in a desired radio station you wish to store in the preset memory. Press the BAND button repeatedly...
Page 12 RDS Operations (CDM-9807RB/CDM-9805R) (CDM-9803RM/CDM-9803R/CDE-9802RB/CDE-9801R) BAND T.INFO Preset buttons BAND Preset buttons F/SETUPg 1/AF 3/PTY F/SETUPg 1/AF 3/PTY T.INFO Setting RDS Reception Mo...
Page 13 Receiving RDS Regional (Local) Stations PTY (Programme Type) Tuning Press and hold the F/SETUP button for at least 3 Press the F/SETUP button so that the "FUNC" seconds to activate the setti...
Page 14 RDS Operations (CDM-9807RB/CDM-9805R) (CDM-9803RM/CDM-9803R/CDE-9802RB/CDE-9801R) T.INFO F/SETUP 2/NEWS F/SETUP 2/NEWS T.INFO Receiving Traffic Information While Priority News Playing CD or Radio This...
Page 15 CD Player Operations About the usable discs. Use only compact discs with the label side showing the CD logo marks below. If you use unspecified compact discs, correct performance cannot be guaranteed....
Page 16 CD Player Operations Music Sensor (Skip) SOURCE/ Momentarily press the g button once during POWER - / J Preset buttons CD play to return to the beginning of the current track. If you wish to access a ...
Page 17 M.I.X. (Random Play) Controlling CD Changer (Optional) (CDM-9807RB/CDM-9805R/CDM- Press the 5 ( ) button in the play or pause mode. 9803RM/CDM-9803R only) The M.I.X. indicator will illuminate and the ...
Page 18 SETUP Operations Setting the AUX Mode (CDM-9807RB/CDM-9805R/CDM- SOURCE/ POWER BAND 9803RM/CDM-9803R only) You can input TV/video sound by connecting an optional "M-Bus V-Link" (M-Bus/RCA in...
Page 19 Switching the Tuner Mode (CDM-9807RB/CDM-9805R only) The CDM-9807RB/CDM-9805R incorporates the MAX TUNE Pro for the highest quality tuner audio. Moreover, you can choose between 3 settings to suit you...
Page 20 Information In Case of Difficulty CD If you encounter a problem, please turn the power CD Player/Changer (CDM-9807RB/CDM-9805R/ CDM-9803RM/CDM-9803R only) not off, then on again. If the unit is still ...
Page 21 Indication for CD Specifications HI TEMP FM TUNER SECTION Tuning Range 87.5 – 108.0 MHz Protective circuit is activated due to high temperature. Mono Usable Sensitivity 0.7 µV The indicator will disap...
Page 22 Installation and Connections Before installing or connecting the unit, please ARRANGE THE WIRING SO IT IS NOT CRIMPED OR read the following and pages 2 and 3 of this PINCHED BY A SHARP METAL EDGE. man...
Page 23 Installation Slide the unit into the dashboard. When the unit is in place, make sure the locking pins are fully seated in the down position. This can be done by Caution (CDM-9807RB/CDM-9805R only) pre...
Page 24 Installation and Connections Connection Antenna ISO Antenna Plug (Orange) DIMMER To the instrument cluster (CDM-9807RB/CDE-9802RB only) illumination lead (Pink/Black) AUDIO INTERRUPT IN To vehicle pho...
Page 25 Antenna Receptacle Front Output RCA Connectors (CDM-9807RB/ Dimmer Lead (Orange) (CDM-9807RB/CDE- CDM-9805R/CDM-9803RM/CDM-9803R only) 9802RB only) RED is right and WHITE is left. This lead may be con...
Page 26 24-EN
