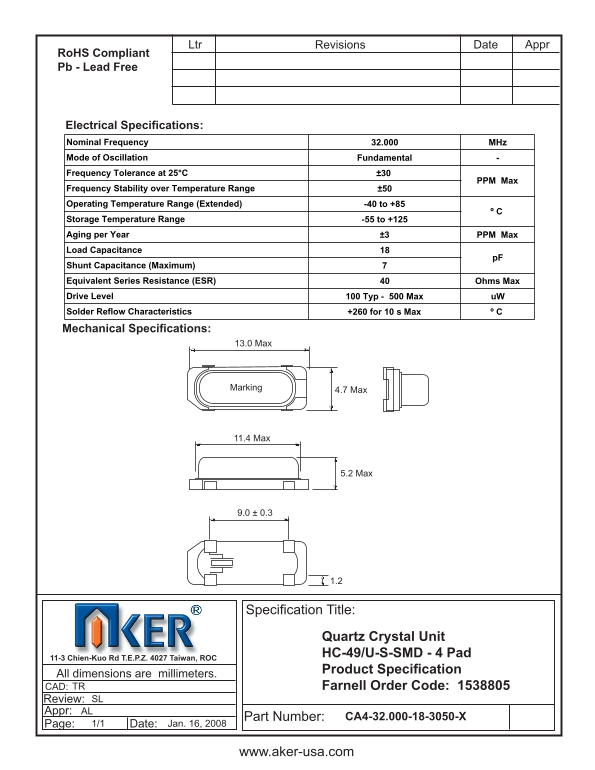

Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 32.000 MHz Mode of Oscillation Fundamental Frequency Tolerance at 25°C ±30
PPM Max
Frequency Stability over Temperature Range ±50 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Aging per Year ±3 PPM Max Load Capacitance
Shunt Capacitance (Maximum) Equivalent Series Resistance (ESR) Ohms Max Drive Level 100 Typ - 500 Max u W Solder Reflow Characteristics +260 for 10 s Max º C
Mechanical Specifi cations:
Specifi cation Title:
Quartz Crystal Unit HC-49/U-S-SMD - 4 Pad
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters. CAD: Farnell Order Code: 1538805TR Review: SL Appr: AL
Part Number: CA4-32.000-18-3050-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com
Page Summary Contents For AKER HC-49 U-SS-SMD - 4 Pad Quartz Crystal Unit Handbook
Manual Details
| Brand | Crystal |
|---|---|
| Pages | 1 |
| File Size | 45.02 KB |
| Published | May 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the intended operating temperature range for this crystal unit?
The specified Operating Temperature Range is -40 to +85 °C.
Does the crystal comply with lead-free regulations?
Yes, it is RoHS Compliant and Pb - Lead Free.
How does the frequency tolerance behave at 25°C?
The Frequency Tolerance at 25°C is stated as ±30 PPM.
What are the maximum electrical specifications for this component?
It has a Max Load Capacitance of 18 pF and handles a Max Drive Level of 100 Typ - 500 max uW.
