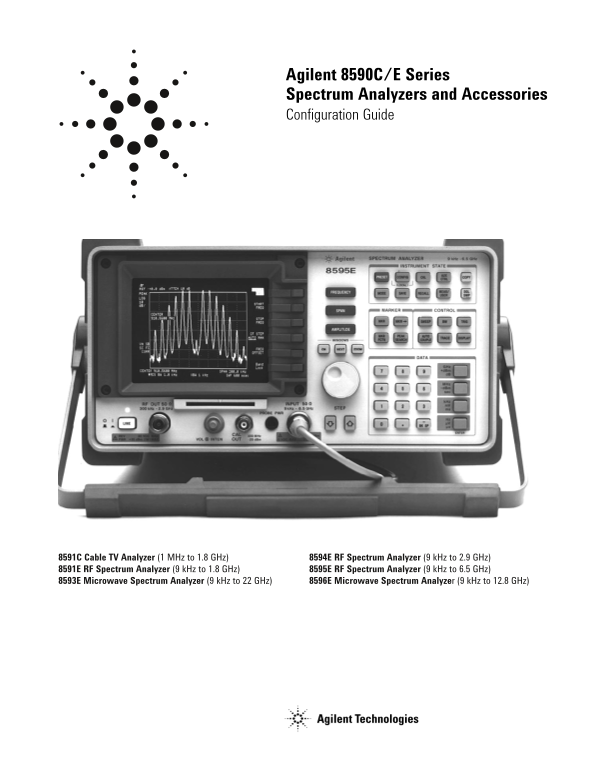

Agilent 8590C/E Series Spectrum Analyzers and Accessories Configuration Guide

8591C Cable TV Analyzer (1 MHz to 1.8 GHz) 8594E RF Spectrum Analyzer (9 k Hz to 2.9 GHz) 8591E RF Spectrum Analyzer (9 k Hz to 1.8 GHz) 8595E RF Spectrum Analyzer (9 k Hz to 6.5 GHz) 8593E Microwave Spectrum Analyzer (9 k Hz to 22 GHz) 8596E Microwave Spectrum Analyzer (9 k Hz to 12.8 GHz)

Page Summary Contents For Agilent E Series 8590C Spectrum Analyzers and Accessories Configuration Guide

Page 1 Agilent 8590C/E Series Spectrum Analyzers and Accessories Configuration Guide 8591C Cable TV Analyzer (1 MHz to 1.8 GHz) 8594E RF Spectrum Analyzer (9 k Hz to 2.9 GHz) 8591E RF Spectrum Analyzer (9 k ...

Page 3 Agilent 8590C/E series options Opt card ü= compatible slots required Option Description (4 max) 8591C 8591E 8593E 8594E 8595E 8596E 75 Ω input impedance Std Memory card reader Std Std Std Std Std Std ...

Page 4 Agilent 8590C/E series options (continued) Opt card ü= compatible slots required Option Description (4 max) 8591C 8591E 8593E 8594E 8595E 8596E GSM900/DCS1800 firmware for Option 15125 TV picture on s...

Page 5 Agilent 8590C/E series options Ordering information 8590E series spectrum analyzers 08590-60381 Retrofit kit for RS232/Parallel interface, 8590L/C/E models, 8591E 9 k Hz to 1.8 GHz ser. prefix ≥ 3523A...

Page 6 Agilent 8590C/E series accessories For scalar measurements 11867A RF limiter (type-N(f) to type-N(m), DC to 1.8 GHz, < .75 d B insertion loss) 85630-00008 Scalar 50 Ω transmission/reflection test s...

Page 7 Agilent 8590 C/E series notes 1. Programming manual included 2. Options 101 and 102 required for TV sync trigger capability. See Option 301. 3. 85717A measurement personality required 4. 85719A measur...

Page 8 Agilent Technologies’ Test and Measurement Support, Services, and Assistance Agilent Technologies aims to maximize the value you receive, while minimizing your risk and problems. We strive to ensure t...
