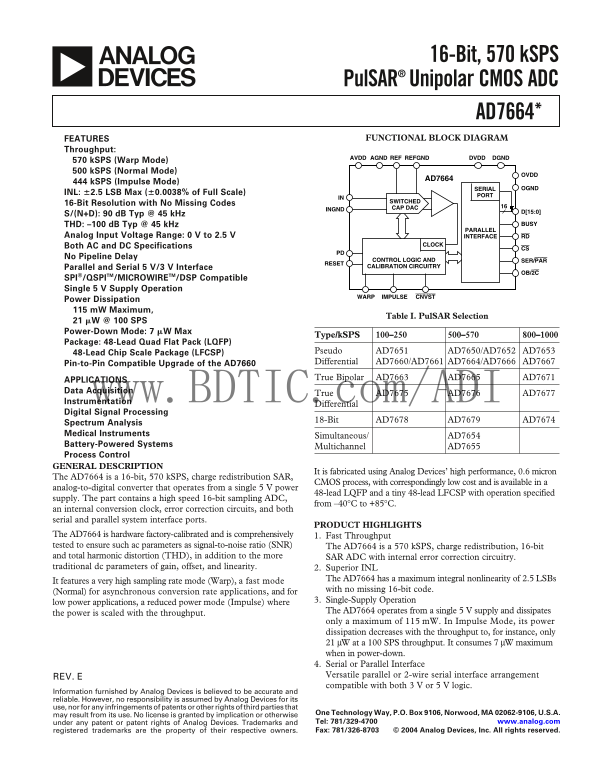

Page 1 Text Content

16-Bit, 570 k SPS

Pul SAR® Unipolar CMOS ADC

AD7664*

FEATURES FUNCTIONAL BLOCK DIAGRAM

Throughput:

AGND REF REFGND DGNDDVDDAVDD

570 k SPS (Warp Mode) 500 k SPS (Normal Mode)

AD7664

444 k SPS (Impulse Mode)

SERIAL OGND

INL: 2.5 LSB Max (0.0038% of Full Scale)

SWITCHED

16-Bit Resolution with No Missing Codes

INGND CAP DAC

S/(N+D): 90 d B Typ @ 45 k Hz

THD: –100 d B Typ @ 45 k Hz BUSY

PARALLEL

Analog Input Voltage Range: 0 V to 2.5 V INTERFACE RD

Both AC and DC Specifications CLOCK

No Pipeline Delay

CONTROL LOGIC AND SER/PAR

RESET

Parallel and Serial 5 V/3 V Interface CALIBRATION CIRCUITRY

OB/2C

SPI®/QSPITM/MICROWIRETM/DSP Compatible Single 5 V Supply Operation

IMPULSE CNVSTWARP

Power Dissipation 115 m W Maximum,

Table I. Pul SAR Selection

21 W @ 100 SPS Power-Down Mode: 7 W Max

Type/k SPS 100–250 500–570 800–1000

Package: 48-Lead Quad Flat Pack (LQFP)

48-Lead Chip Scale Package (LFCSP) Pseudo AD7651 AD7650/AD7652 AD7653 Pin-to-Pin Compatible Upgrade of the AD7660 Differential AD7660/AD7661 AD7664/AD7666 AD7667

True Bipolar AD7663 AD7665 AD7671

APPLICATIONS Data Acquisition

True AD7675 AD7676 AD7677

Instrumentation www.BDTIC.com/A

Differential

Digital Signal Processing

18-Bit AD7678 AD7679 AD7674

Spectrum Analysis Medical Instruments

Simultaneous/ AD7654

Battery-Powered Systems

Multichannel AD7655

Process Control GENERAL DESCRIPTION

It is fabricated using Analog Devices’ high performance, 0.6 micron

The AD7664 is a 16-bit, 570 k SPS, charge redistribution SAR,

CMOS process, with correspondingly low cost and is available in a

analog-to-digital converter that operates from a single 5 V power

48-lead LQFP and a tiny 48-lead LFCSP with operation specified

supply. The part contains a high speed 16-bit sampling ADC,

from –40°C to +85°C.

an internal conversion clock, error correction circuits, and both serial and parallel system interface ports.

PRODUCT HIGHLIGHTS

The AD7664 is hardware factory-calibrated and is comprehensively 1. Fast Throughput tested to ensure such ac parameters as signal-to-noise ratio (SNR) The AD7664 is a 570 k SPS, charge redistribution, 16-bit and total harmonic distortion (THD), in addition to the more SAR ADC with internal error correction circuitry. traditional dc parameters of gain, offset, and linearity. 2. Superior INL

The AD7664 has a maximum integral nonlinearity of 2.5 LSBs

It features a very high sampling rate mode (Warp), a fast mode

with no missing 16-bit code.

(Normal) for asynchronous conversion rate applications, and for

3. Single-Supply Operation

low power applications, a reduced power mode (Impulse) where

The AD7664 operates from a single 5 V supply and dissipates

the power is scaled with the throughput.

only a maximum of 115 m W. In Impulse Mode, its power dissipation decreases with the throughput to, for instance, only 21 µW at a 100 SPS throughput. It consumes 7 µW maximum when in power-down. 4. Serial or Parallel Interface REV. Versatile parallel or 2-wire serial interface arrangement compatible with both 3 V or 5 V logic.

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

may result from its use. No license is granted by implication or otherwise

under any patent or patent rights of Analog Devices. Trademarks and Tel: 781/329-4700 www.analog.com registered trademarks are the property of their respective owners. Fax: 781/326-8703 © 2004 Analog Devices, Inc. All rights reserved.

Page Summary Contents For AD7664 Analog Devices Data Sheet Manual

Page 1 16-Bit, 570 k SPS Pul SAR® Unipolar CMOS ADC AD7664* FEATURES FUNCTIONAL BLOCK DIAGRAM Throughput: AGND REF REFGND DGNDDVDDAVDD 570 k SPS (Warp Mode) 500 k SPS (Normal Mode) AD7664 444 k SPS (Impulse ...
Page 2 AD7664 –SPECIFICATIONS (–40C to +85C, AVDD = DVDD = 5 V, OVDD = 2.7 V to 5.25 V, unless otherwise noted.) Parameter Conditions Min Typ Max Unit RESOLUTION Bits ANALOG INPUT Voltage Range VIN – VINGN...
Page 3 AD7664 Parameter Conditions Min Typ Max Unit TEMPERATURE RANGE8 Specified Performance TMIN to TMAX –40 +85 °C NOTES 1LSB means least significant bit. With the 0 V to 2.5 V input range, one LSB is 38.1...
Page 4 AD7664 ABSOLUTE MAXIMUM RATINGS1 1.6m A IOL IN2, REF, INGND, REFGND to AGND . . . . . . . . . . . . . . . . . . . . . . . AVDD + 0.3 V to AGND – 0.3 Ground Voltage Differences TO OUTPUT PIN AGND, DGND...
Page 5 AD7664 PIN CONFIGURATION AGND AGND PIN 1 AVDD IDENTIFIER CNVST NC PD DGND RESET OB/2C CS WARP AD7664 TOP VIEW IMPULSE DGND (Not to Scale) SER/PAR BUSY D0 D15 D1 D14 D2 D13 D3 D12 NC = NO CONNECT 4/ /I...
Page 6 AD7664 Pin No. Mnemonic Type Description D7 DI/O When SER/PAR is LOW, this output is used as Bit 7 of the Parallel Port Data Output Bus. or RDC/SDIN When SER/PAR is HIGH, this input, part of the Seria...
Page 7 AD7664 Pin No. Mnemonic Type Description CNVST DI Start Conversion. A falling edge on CNVST puts the internal sample-and-hold into the hold state and initiates a conversion. In Impulse Mode (IMPULSE H...
Page 8 AD7664 –Typical Performance Characteristics CODE CODE TPC 1. Integral Nonlinearity vs. Code TPC 4. Differential Nonlinearity vs. Code www.BDTIC.com/ADI 7F86 7F87 7F8F7F8E7F8D7F8C7F8B7F8A7F897F88 7FB3 ...
Page 9 AD7664 , H IC IT ll ca le 8192 POINT FFT –20 f S = 570k Hz f IN = 45.5322k Hz, –0.5d B –40 SNR = 90.1d B SINAD = 89.4d B SNR –60 THD = –97.1d B SFDR = 97.5d B FREQUENCY (k Hz) INPUT LEVEL – d B TPC 7....
Page 10 AD7664 FULL-SCALE ERROR ZERO ERROR –8 OVDD TEMPERATURE (C) TEMPERATURE – C TPC 13. Zero Error, Full-Scale Error vs. Temperature TPC 15. Power-Down Operating Currents vs. Temperature OVDD = 2.7V, 85...
Page 11 AD7664 CIRCUIT INFORMATION input IN. Thus, the capacitor array is used as a sampling capacitor The AD7664 is a very fast, low power, single-supply, precise and acquires the analog signal on the IN inp...
Page 12 AD7664 tr ai in ar The Normal Mode is the fastest mode (500 k SPS) without any Table II. Output Codes and Ideal Input Voltages limitation on the time between conversions. This mode makes the Digital O...
Page 13 AD7664 Analog Input significantly affect the ac performances, especially the total Figure 6 shows an equivalent circuit of the input structure of harmonic distortion (THD). The maximum source impedanc...
Page 14 AD7664 For instance, in a driver like the AD8021, with an equivalent (DVDD) can be supplied through a simple RC filter from the input noise of 2 n V/√Hz and configured as a buffer, thus with a analog ...
Page 15 AD7664 CONVERSION CONTROL DIGITAL INTERFACE Figure 11 shows the detailed timing diagrams of the conversion The AD7664 has a versatile digital interface; it can be interfaced process. The AD7664 is con...
Page 16 AD7664 CS = 0 SERIAL INTERFACE t1 The AD7664 is configured to use the serial interface when the CNVST, RD SER/PAR is held HIGH. The AD7664 outputs 16 bits of data, MSB first, on the SDOUT pin. This da...
Page 17 AD7664 CS EXT/INT = 1 INVSCLK = 0 RD = 0 SDOUT D15 D14 D1 D0D13 X15 X14X SDIN X15 X14 X13 X1 X0 Y15 Y14 Figure 18. Slave Serial Data Timing for Reading (Read after Convert) Because the AD7664 is used ...
Page 18 AD7664 EXT/INT = 1 INVSCLK = 0 RD = 0 CNVST SDOUT D15 D14 D13 D1 D0X Figure 20. Slave Serial Data Timing for Reading (Read Previous Conversion during Convert) External Clock Data Read during Conversio...
Page 19 AD7664 APPLICATION HINTS It is recommended to avoid running digital lines under the Bipolar and Wider Input Ranges device, because these couple noise onto the die. The analog In some applications, it ...
Page 20 AD7664 OUTLINE DIMENSIONS 48-Lead Low Profile Quad Flat Package [LQFP] (ST-48) Dimensions shown in millimeters 1.60 9.00 BSC 0.60 SQ PIN 1 SEATING PLANE 1.45 TOP VIEW 7.00 0.20 (PINS DOWN) BSC SQ 1.35...
Page 21 AD7664 Revision History Location Page 1/04—Data Sheet changed from REV. D to REV. E. Changes to title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...
