The ADM660/ADM8660 is a high-efficiency charge-pump voltage converter designed to accurately generate negative or boosted supply rails from limited input voltages ranging from +1.5V to +7V. It provides essential power solutions for complex portable electronics, making it ideal for handheld instruments, remote data acquisition systems, and computers requiring single-supply operation (inverting the voltage) or higher voltages (doubling). This guide covers detailed technical specifications, detailing operational modes, optimal capacitor selection, high power efficiency metrics, and advanced low-power shutdown functionality for seamless system integration.

📄 Preview PAGE OF 12

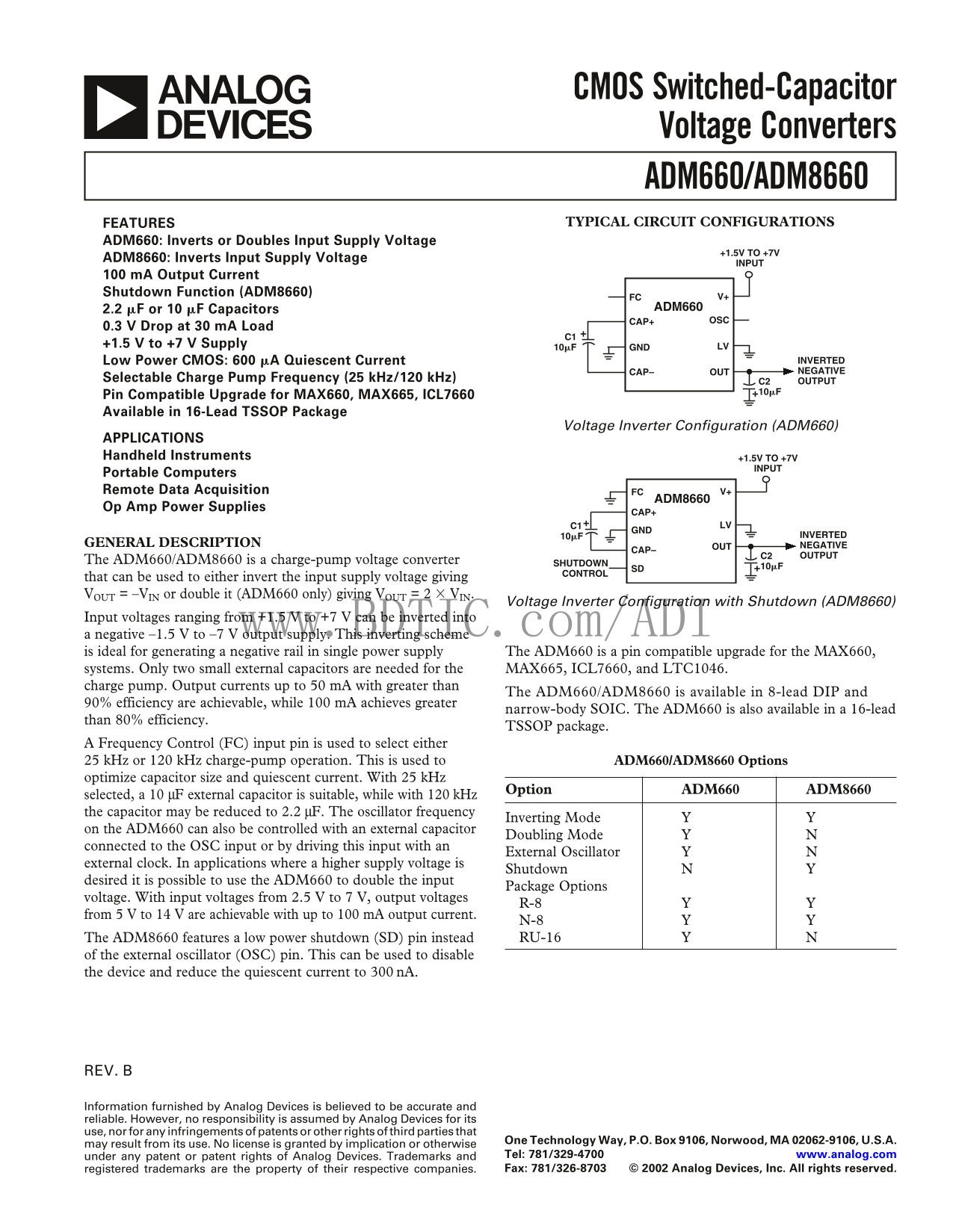

Page 1 Text Content

CMOS Switched-Capacitor Voltage Converters ADM660/ADM8660 FEATURES TYPICAL CIRCUIT CONFIGURATIONS

ADM660: Inverts or Doubles Input Supply Voltage

+1.5V TO +7V

ADM8660: Inverts Input Supply Voltage

INPUT

100 m A Output Current Shutdown Function (ADM8660)

FC V+

2.2 F or 10 F Capacitors ADM660

CAP+ OSC

0.3 V Drop at 30 m A Load

+1.5 V to +7 V Supply 10F GND LV

Low Power CMOS: 600 A Quiescent Current INVERTED CAP– OUT NEGATIVE

Selectable Charge Pump Frequency (25 k Hz/120 k Hz) C2 OUTPUT

Pin Compatible Upgrade for MAX660, MAX665, ICL7660 Available in 16-Lead TSSOP Package

Voltage Inverter Configuration (ADM660)

APPLICATIONS Handheld Instruments +1.5V TO +7V

INPUT

Portable Computers Remote Data Acquisition FC V+

ADM8660

Op Amp Power Supplies

C1 LV

10F INVERTED

GENERAL DESCRIPTION OUT NEGATIVE

C2 OUTPUT

The ADM660/ADM8660 is a charge-pump voltage converter

SDSHUTDOWN 10F

CONTROL

that can be used to either invert the input supply voltage giving VOUT = –VIN or double it (ADM660 only) giving VOUT = 2  VIN.

Voltage Inverter Configuration with Shutdown (ADM8660)

Input voltages ranging from +1.5 V to +7 V can be inverted into

a negative –1.5 V to –7 V output supply. This inverting scheme www BDTIC.com/ADI is ideal for generating a negative rail in single power supply The ADM660 is a pin compatible upgrade for the MAX660,

systems. Only two small external capacitors are needed for the MAX665, ICL7660, and LTC1046. charge pump. Output currents up to 50 m A with greater than

The ADM660/ADM8660 is available in 8-lead DIP and

90% efficiency are achievable, while 100 m A achieves greater

narrow-body SOIC. The ADM660 is also available in a 16-lead

than 80% efficiency.

TSSOP package.

A Frequency Control (FC) input pin is used to select either 25 k Hz or 120 k Hz charge-pump operation. This is used to ADM660/ADM8660 Options optimize capacitor size and quiescent current. With 25 k Hz

Option ADM660 ADM8660

selected, a 10 µF external capacitor is suitable, while with 120 k Hz the capacitor may be reduced to 2.2 µF. The oscillator frequency

Inverting Mode

on the ADM660 can also be controlled with an external capacitor

Doubling Mode

connected to the OSC input or by driving this input with an

External Oscillator

external clock. In applications where a higher supply voltage is

Shutdown

desired it is possible to use the ADM660 to double the input

Package Options

voltage. With input voltages from 2.5 V to 7 V, output voltages

from 5 V to 14 V are achievable with up to 100 m A output current.

N-8 The ADM8660 features a low power shutdown (SD) pin instead RU-16

of the external oscillator (OSC) pin. This can be used to disable the device and reduce the quiescent current to 300 n A.

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

may result from its use. No license is granted by implication or otherwise

under any patent or patent rights of Analog Devices. Trademarks and Tel: 781/329-4700 www.analog.com registered trademarks are the property of their respective companies. Fax: 781/326-8703 © 2002 Analog Devices, Inc. All rights reserved.

Page Summary Contents For AD Analog Devices ADM8660 Data Sheet Manual

Page 1 CMOS Switched-Capacitor Voltage Converters ADM660/ADM8660 FEATURES TYPICAL CIRCUIT CONFIGURATIONS ADM660: Inverts or Doubles Input Supply Voltage +1.5V TO +7V ADM8660: Inverts Input Supply Voltage INP...
Page 2 (V+ = +5 V, C1, C2 = 10F,* TA = TMIN to TMAX, unless ADM660/ADM8660–SPECIFICATIONS otherwise noted.) Parameter Min Typ Max Unit Test Conditions/Comments Input Voltage, V+ RL = 1 k W 3.5 7.0 Inverting...
Page 3 ADM660/ADM8660 ABSOLUTE MAXIMUM RATINGS* Power Dissipation, RU-16 . . . . . . . . . . . . . . . . . . . . . 500 m W (TA = +25°C, unless otherwise noted.) (Derate 6 m W/°C above +50°C) θJA, Thermal Imp...
Page 4 ADM660/ADM8660 PIN CONNECTIONS 8-Lead FC V+ FC V+ ADM660 ADM8660 SD CAP+ OSC CAP+ TOP VIEW TOP VIEW GND (Not to Scale) LV GND (Not to Scale) LV CAP– OUT CAP– OUT 16-Lead NC NC NC NC FC V+ ADM660 CAP+ ...
Page 5 Typical Performance Characteristics–ADM660/ADM8660 IL = 10m A VOLTAGE DOUBLER IL = 1m A LV = OUT IL = 50m A LV = GND IL = 80m A LV = OPEN SUPPLY VOLTAGE – Volts CHARGE-PUMP FREQUENCY – Hz TPC 1. Power...
Page 6 ADM660/ADM8660 -P IS TA lt LOAD = 10m A 4.5 LOAD = 1m A 4.0 LOAD = 50m A LV = GND FC = OPEN 1.5 LOAD = 80m A CHARGE-PUMP FREQUENCY – k Hz TEMPERATURE – C TPC 7. Output Voltage vs. Charge-Pump Frequenc...
Page 7 ADM660/ADM8660 LV = GND FC = V+ C1, C2 = 2.2F TEMPERATURE – C TEMPERATURE – C TPC 13. Charge-Pump Frequency vs. Temperature TPC 14. Output Resistance vs. Temperature GENERAL INFORMATION Switched Capa...
Page 8 ADM660/ADM8660 Inverting Negative Voltage Generator Table II. ADM8660 Charge-Pump Frequency Selection Figures 5 and 6 show the ADM660/ADM8660 configured to FC OSC Charge Pump C1, C2 generate a negativ...
Page 9 ADM660/ADM8660 current levels. The ADM660/ADM8660 is tested using low Capacitor C2 ESR, 10 µF, capacitors for both C1 and C2. Smaller values of The output capacitor size C2 affects the output ripple. ...
Page 10 ADM660/ADM8660 OUTLINE DIMENSIONS 8-Lead Plastic Dual-in-Line Package [PDIP] 8-Lead Standard Small Outline Package [SOIC] (N-8) Narrow Body Dimensions shown in inches and (millimeters) (R-8) Dimension...
Page 11 ADM660/ADM8660 Revision History Location Page 12/02—Data Sheet changed from REV. A to REV. B. Renumbered TPCs and Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...
Page 12 www.BDTIC.com/ADI IN IN .S .A 2– 0– /0 2(

Manual Details

Brand Analog Devices
Pages 12
File Size 168.36 KB
Published July 16, 2026
2 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

Can the device generate a negative voltage supply?

Yes, inverting input voltages (+1.5 V to +7 V) produces a negative output (-1.5 V to -7 V).

How do I control the charge-pump frequency?

Use the Frequency Control (FC) pin; it can be set to 25 kHz or 120 kHz by driving this pin.

What is the quiescent current when using shutdown mode on ADM8660?

The low power shutdown pin (SD) reduces the quiescent current to 300 nA.

Which capacitors are required for operation?

Only two small external capacitors, C1 and C2, are needed. For 100 mA output, using a 10 µF capacitor is generally suitable.
