3M 8822 Respirator User Guide and Instruction Manual
Summary
This comprehensive manual details the use and maintenance of the 3M 8822 FFP2 respirator, providing breathable, dependable protection against mineral dusts, mists, and fine particulates down to 0.5 micron. Designed for industrial settings such as foundries, construction sites, and pharmaceuticals, the lightweight design ensures comfort while delivering up to 10x protective factor boost. The guide includes step-by-step fitting instructions, proper sealing checks, and critical safety guidelines to ensure optimal performance in highly dusty professional environments.

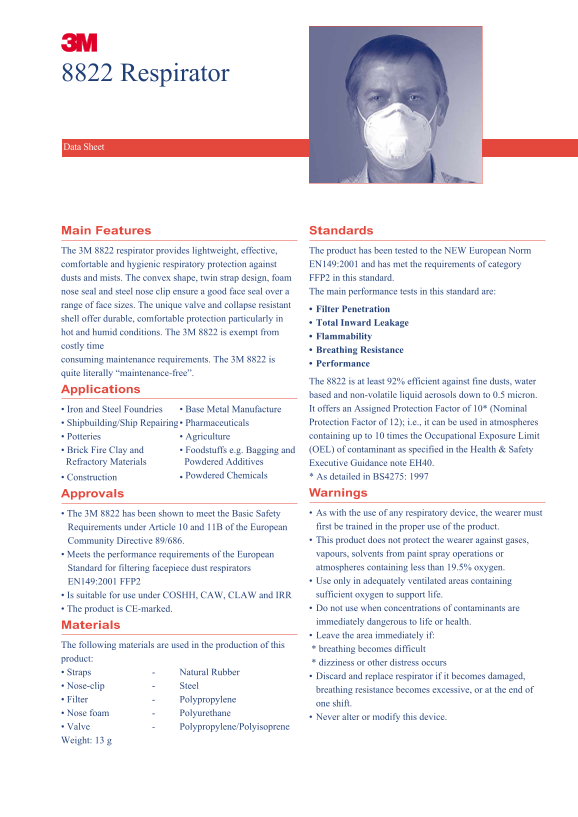

Page 1 Text Content
8822 Respirator
Data Sheet
Main Features Standards The 3M 8822 respirator provides lightweight, effective, The product has been tested to the NEW European Norm comfortable and hygienic respiratory protection against EN149:2001 and has met the requirements of category dusts and mists. The convex shape, twin strap design, foam FFP2 in this standard. nose seal and steel nose clip ensure a good face seal over a The main performance tests in this standard are: range of face sizes. The unique valve and collapse resistant
Filter Penetration
shell offer durable, comfortable protection particularly in
Total Inward Leakage
hot and humid conditions. The 3M 8822 is exempt from
Flammability
costly time
Breathing Resistance
consuming maintenance requirements. The 3M 8822 is
Performance
quite literally “maintenance-free”.
The 8822 is at least 92% efficient against fine dusts, water
Applications
based and non-volatile liquid aerosols down to 0.5 micron. • Iron and Steel Foundries • Base Metal Manufacture It offers an Assigned Protection Factor of 10* (Nominal • Shipbuilding/Ship Repairing• Pharmaceuticals Protection Factor of 12); i.e., it can be used in atmospheres • Potteries • Agriculture containing up to 10 times the Occupational Exposure Limit • Brick Fire Clay and • Foodstuffs e.g. Bagging and (OEL) of contaminant as specified in the Health & Safety
Refractory Materials Powdered Additives Executive Guidance note EH40.
• Construction • Powdered Chemicals * As detailed in BS4275: 1997 Approvals Warnings • The 3M 8822 has been shown to meet the Basic Safety As with the use of any respiratory device, the wearer must Requirements under Article 10 and 11B of the European first be trained in the proper use of the product. Community Directive 89/686. This product does not protect the wearer against gases, • Meets the performance requirements of the European vapours, solvents from paint spray operations or Standard for filtering facepiece dust respirators atmospheres containing less than 19.5% oxygen. EN149:2001 FFP2 Use only in adequately ventilated areas containing • Is suitable for use under COSHH, CAW, CLAW and IRR sufficient oxygen to support life. • The product is CE-marked. Do not use when concentrations of contaminants are immediately dangerous to life or health.
Materials
Leave the area immediately if:
The following materials are used in the production of this
* breathing becomes difficult
product:
* dizziness or other distress occurs
• Straps Natural Rubber
Discard and replace respirator if it becomes damaged,
• Nose-clip Steel
breathing resistance becomes excessive, or at the end of
• Filter - Polypropylene
one shift.
• Nose foam Polyurethane
Never alter or modify this device.
• Valve - Polypropylene/Polyisoprene Weight: 13 g
Page Summary Contents For 3M 8822 Respirator User Guide and Instruction Manual
Manual Details
| Brand | 3M |
|---|---|
| Pages | 2 |
| File Size | 314.37 KB |
| Published | May 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of dusts and aerosols is the 8822 respirator effective against?
It offers protection against fine dusts, water applications, and non-volatile liquid aerosols down to 0.5 micron.
Is this respirator suitable for use in high oxygen environments?
No, it does not protect against contaminants when temperatures are elevated or oxygen levels drop below 19.5%.
How do I properly fit the 8822 respirator?
Cup it up, position it over your nose/mouth, mold the nosepiece to your shape, and perform a negative pressure 'seal check'.
Can this device protect against gases or vapours?
No. The 3M 8822 does not protect the wearer against gases, vapors, or solvents.
