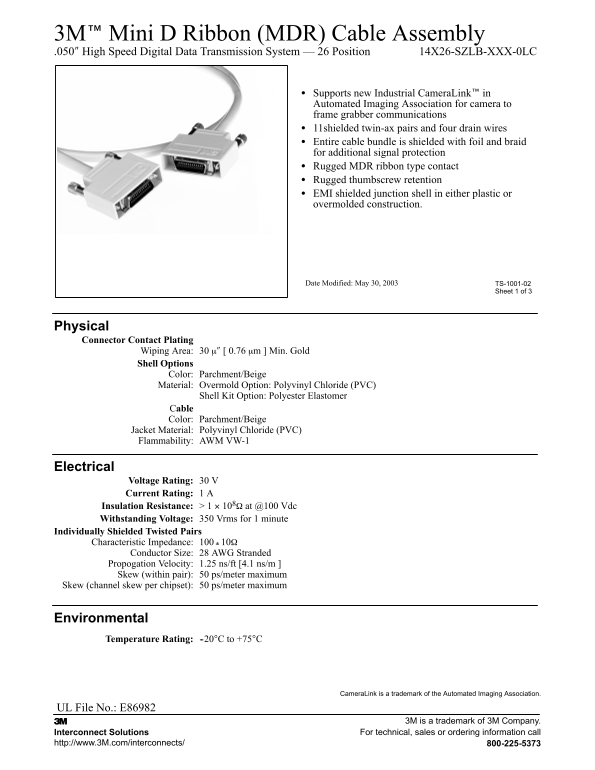

Page 1 Text Content
3M Mini Ribbon (MDR) Cable Assembly .050″ High Speed Digital Data Transmission System Position 14X26-SZLB-XXX-0LC
Supports new Industrial Camera Link in Automated Imaging Association for camera to frame grabber communications 11shielded twin-ax pairs and four drain wires Entire cable bundle is shielded with foil and braid for additional signal protection Rugged MDR ribbon type contact Rugged thumbscrew retention EMI shielded junction shell in either plastic or overmolded construction.
Date Modified: May 30, TS-1001-02
Sheet of
Physical Connector Contact Plating
Wiping Area: µ″ 0.76 µm Min. Gold
Shell Options Color: Parchment/Beige Material: Overmold Option: Polyvinyl Chloride (PVC)
Shell Kit Option: Polyester Elastomer Cable Color: Parchment/Beige
Jacket Material: Polyvinyl Chloride (PVC) Flammability: AWM VW-1
Electrical
Voltage Rating: Current Rating:
Insulation Resistance: 108Ω at @100 Vdc
Withstanding Voltage: Vrms for minute
Individually Shielded Twisted Pairs
Characteristic Impedance: 10Ω
Conductor Size: AWG Stranded Propogation Velocity: 1.25 ns/ft [4.1 ns/m Skew (within pair): ps/meter maximum
Skew (channel skew per chipset): ps/meter maximum
Environmental
Temperature Rating: 20°C to +75°C
Camera Link is trademark of the Automated Imaging Association.
UL File No.: E86982
3M is trademark of 3M Company.
Interconnect Solutions For technical, sales or ordering information call
http://www.3M.com/interconnects/ 800-225-5373
