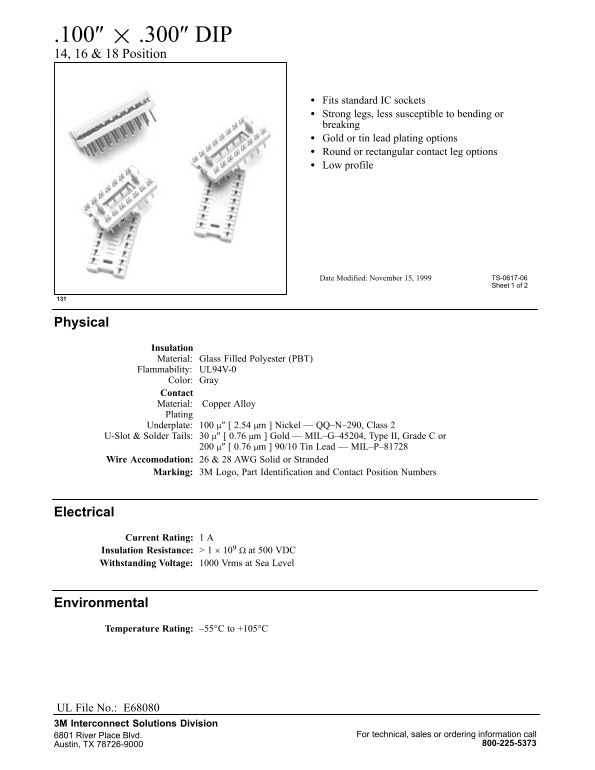

.100″ .300″ DIP 14, 16 & 18 Position
Fits standard IC sockets Strong legs, less susceptible to bending or breaking Gold or tin lead plating options Round or rectangular contact leg options Low profile
Date Modified: November 15, 1999 TS-0617-06 Sheet 1 of 2
Physical
Insulation Material: Glass Filled Polyester (PBT) Flammability: UL94V-0 Color: Gray Contact Material: Copper Alloy Plating Underplate: 100 µ″ [ 2.54 µm ] Nickel — QQ–N–290, Class 2
U-Slot & Solder Tails: 30 µ″ [ 0.76 µm ] Gold — MIL–G–45204, Type II, Grade C or
200 µ″ [ 0.76 µm ] 90/10 Tin Lead — MIL–P–81728
Wire Accomodation: 26 & 28 AWG Solid or Stranded
Marking: 3M Logo, Part Identification and Contact Position Numbers
Electrical
Current Rating: 1 A Insulation Resistance: > 1 × 109 Ω at 500 VDC Withstanding Voltage: 1000 Vrms at Sea Level
Environmental Temperature Rating: –55°C to +105°C
UL File No.: E68080 3M Interconnect Solutions Division
6801 River Place Blvd. For technical, sales or ordering information call
Austin, TX 78726-9000 800-225-5373
